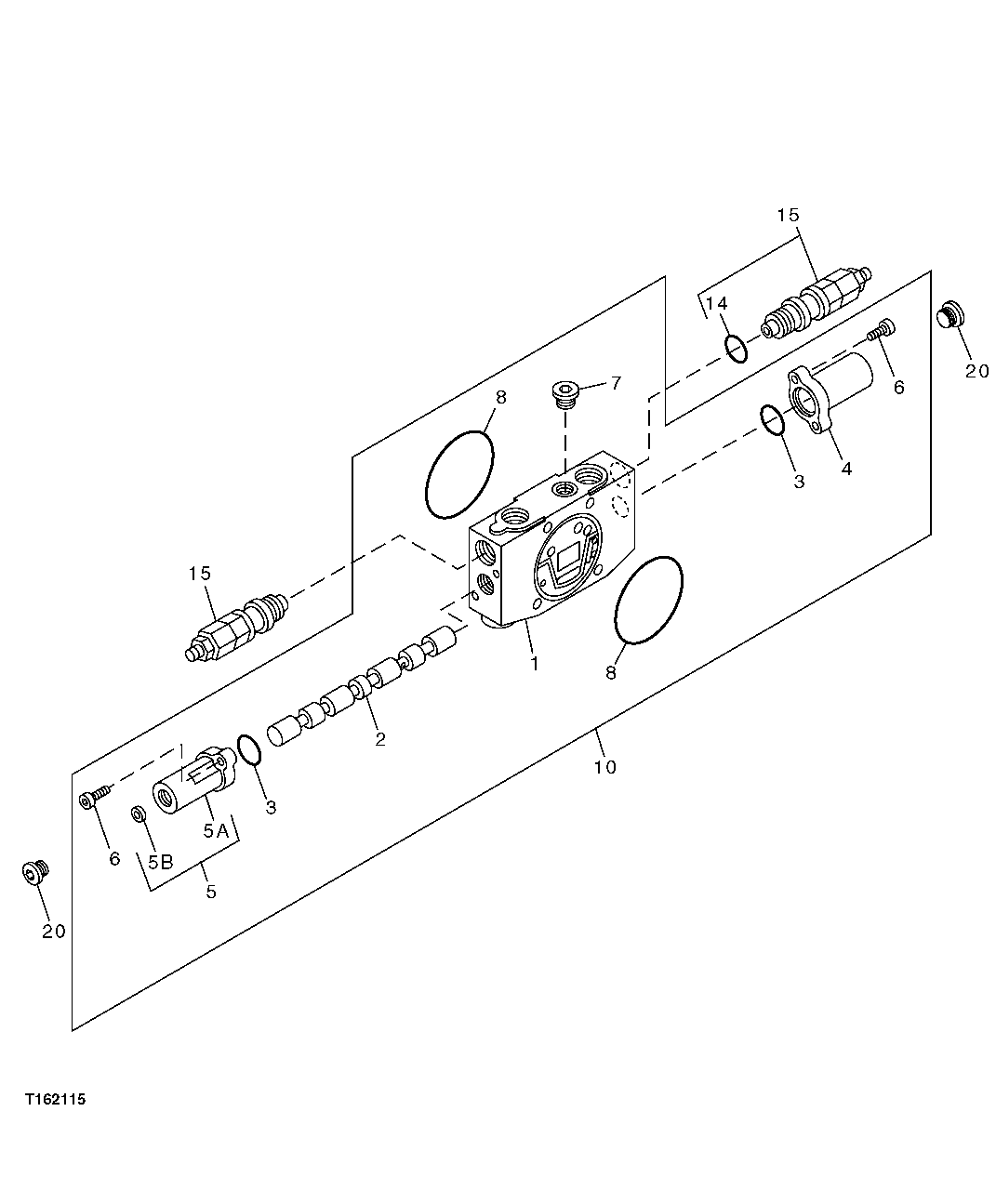

Запчасти John Deere 0C ZTS 181 - Inlet Flow Control Valve Components Section 3362 CONTROL & LOAD HOLDING VALVES

1

Housing

1шт.

2

Valve Spool

1шт.

3

0429313

O-Ring

2шт.

4

0801602

Cover

1шт.

5

0801603

Cover

1шт.

5A

Cap

1шт.

5B

0497606

Filter Element

1шт.

6

0429314

Bolt

4шт.

7

0667713

Fitting Plug

1шт.

8

0801203

O-Ring

SUB FOR 4S00620

2шт.

9

0497606

Filter Element

1шт.

10

4486811

Flow Control Hyd. Valve

Complete Assembly On Another Page

1шт.

14

R26906

O-Ring

1шт.

15

4479038

Pressure Relief Valve

2шт.

20

0801503

Fitting Plug

2шт.
