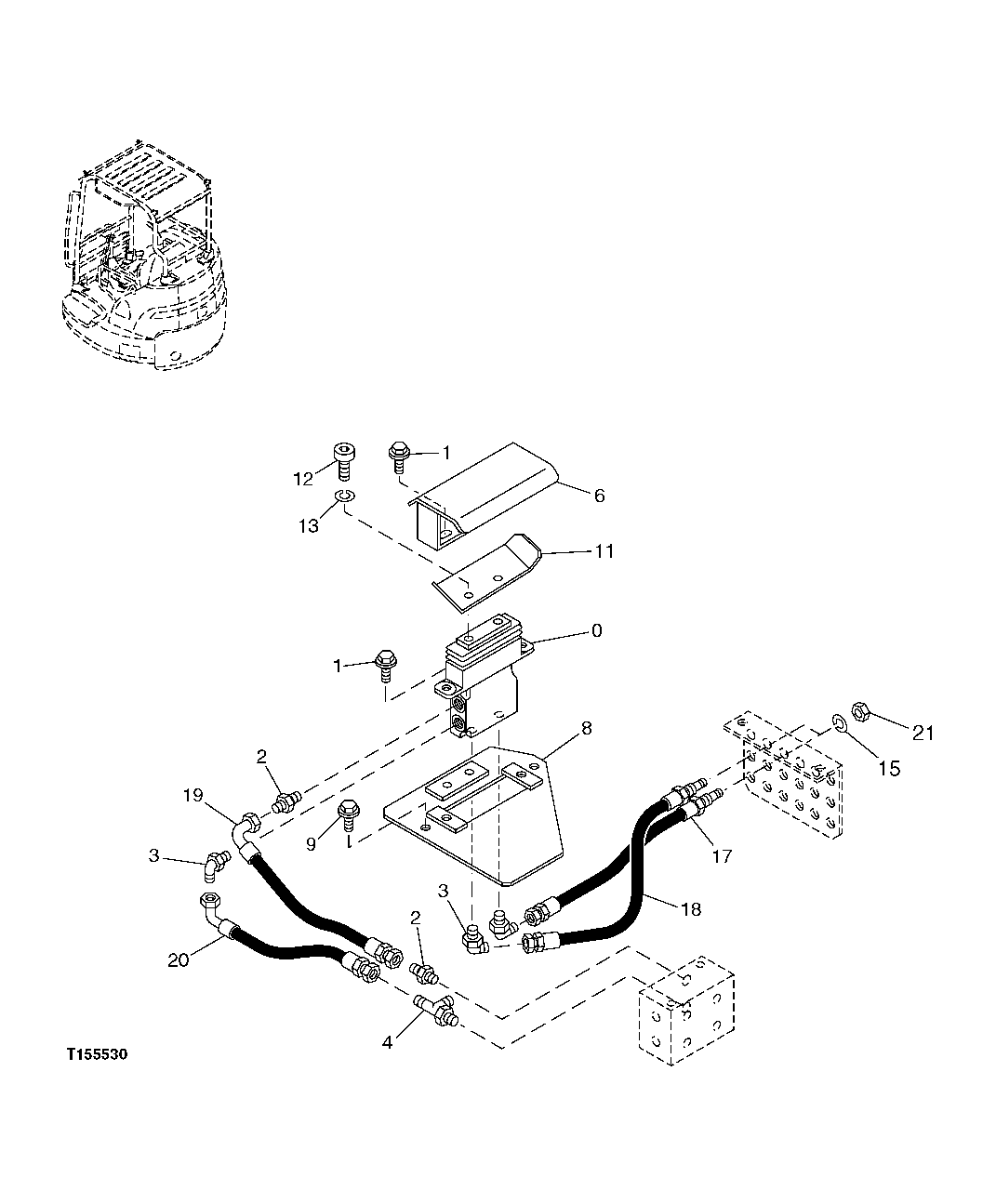

Запчасти John Deere 0C ZTS 159 - BOOM SWING CONTROL PEDAL HOSES 3315 Controls Linkage

0

4467245

Hyd Actuated Control Valve

(COMPONENTS ON ANOTHER PAGE)

1шт.

1

19M7881

Screw

M8 X 20

4шт.

12M7056

Lock Washer

8 mm

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

2

4042030

Adapter Fitting

2шт.

M800650

Packing

1шт.

3

4434981

Elbow Fitting

3шт.

M800650

Packing

1шт.

4

4406156

Tee Fitting

1шт.

M800650

Packing

1шт.

6

8086697

Cover

1шт.

8

8086748

Plate

1шт.

9

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

11

9758030

Pedal

1шт.

12

19M7647

Screw

M8 X 16 (SUB FOR THJ770816 OR AT217709)

2шт.

13

12M7056

Lock Washer

8 mm

2шт.

15

12M7058

Lock Washer

12 mm

2шт.

17

4472989

Hydraulic Hose

1шт.

18

4472990

Hydraulic Hose

1шт.

19

4472991

Hydraulic Hose

1шт.

20

4472992

Hydraulic Hose

1шт.

21

14M7275

Nut

M12

2шт.
