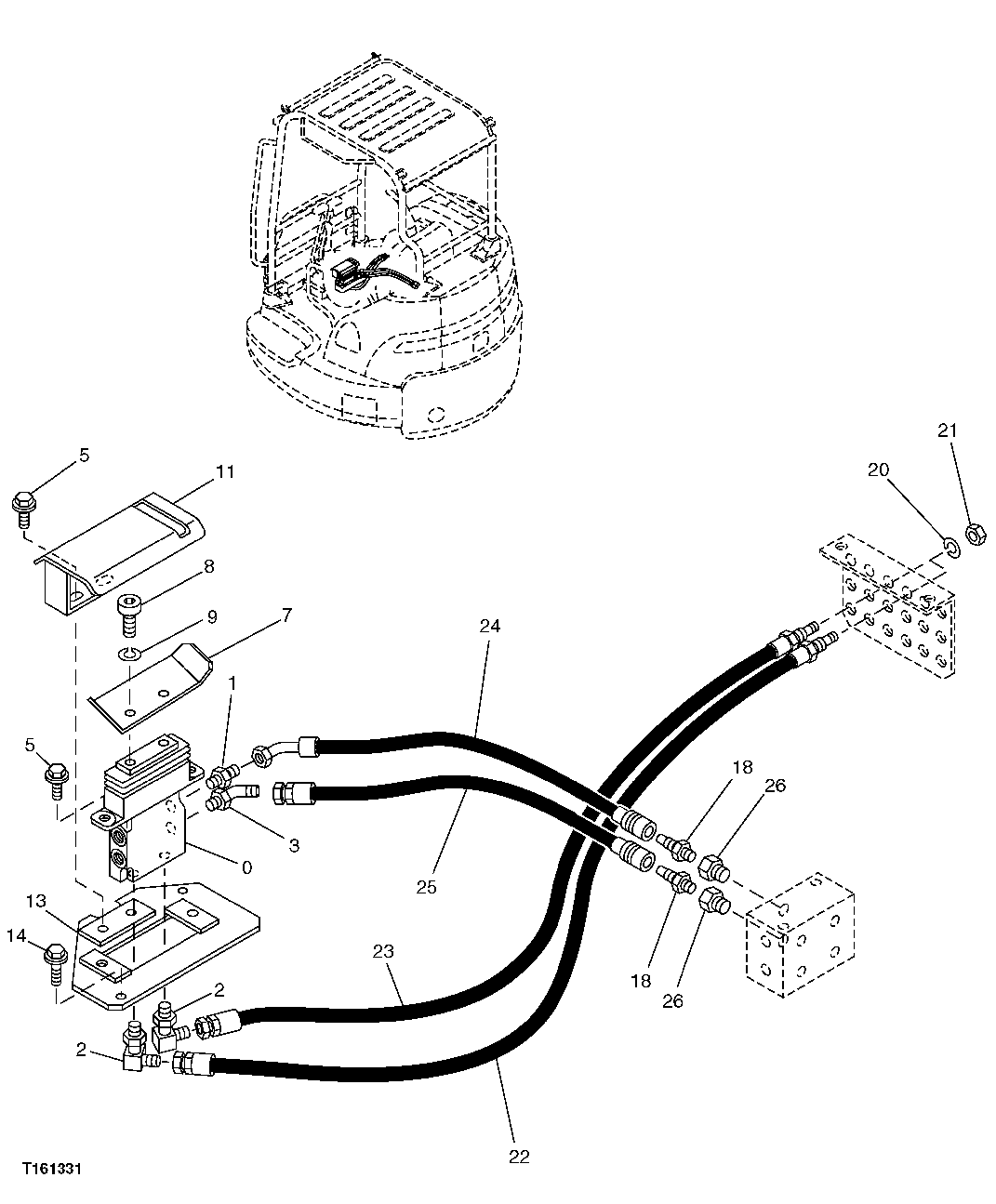

Запчасти John Deere 0C ZTS 158 - AUXILIARY CONTROL AND PEDAL HOSES 3315 Controls Linkage

0

4467245

Hyd Actuated Control Valve

COMPONENTS ON ANOTHER PAGE

1шт.

1

4042030

Adapter Fitting

1шт.

M800650

Packing

1шт.

2

4434981

Elbow Fitting

2шт.

M800650

Packing

1шт.

3

4108100

Elbow Fitting

1шт.

M800650

Packing

1шт.

5

19M7866

Screw

M8 X 20 SUB FOR J050820, AL SO ORDER 24M7036 AND 12M7065

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

7

9758030

Pedal

1шт.

8

19M7647

Screw

M8 X 16 SUB FOR THJ770816 OR AT217709

2шт.

9

12M7056

Lock Washer

8 mm

2шт.

11

8086698

Cover

1шт.

13

8086749

Plate

1шт.

14

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

18

4467369

Adapter Fitting

2шт.

M800650

Packing

2шт.

20

12M7058

Lock Washer

12 mm

2шт.

21

14M7275

Nut

M12

2шт.

22

4472995

Hose

1шт.

23

4472996

Hose

1шт.

24

4472997

Hose

1шт.

25

4472998

Hose

1шт.

26

4263446

Reducer

2шт.

CH11570

O-Ring

1шт.
