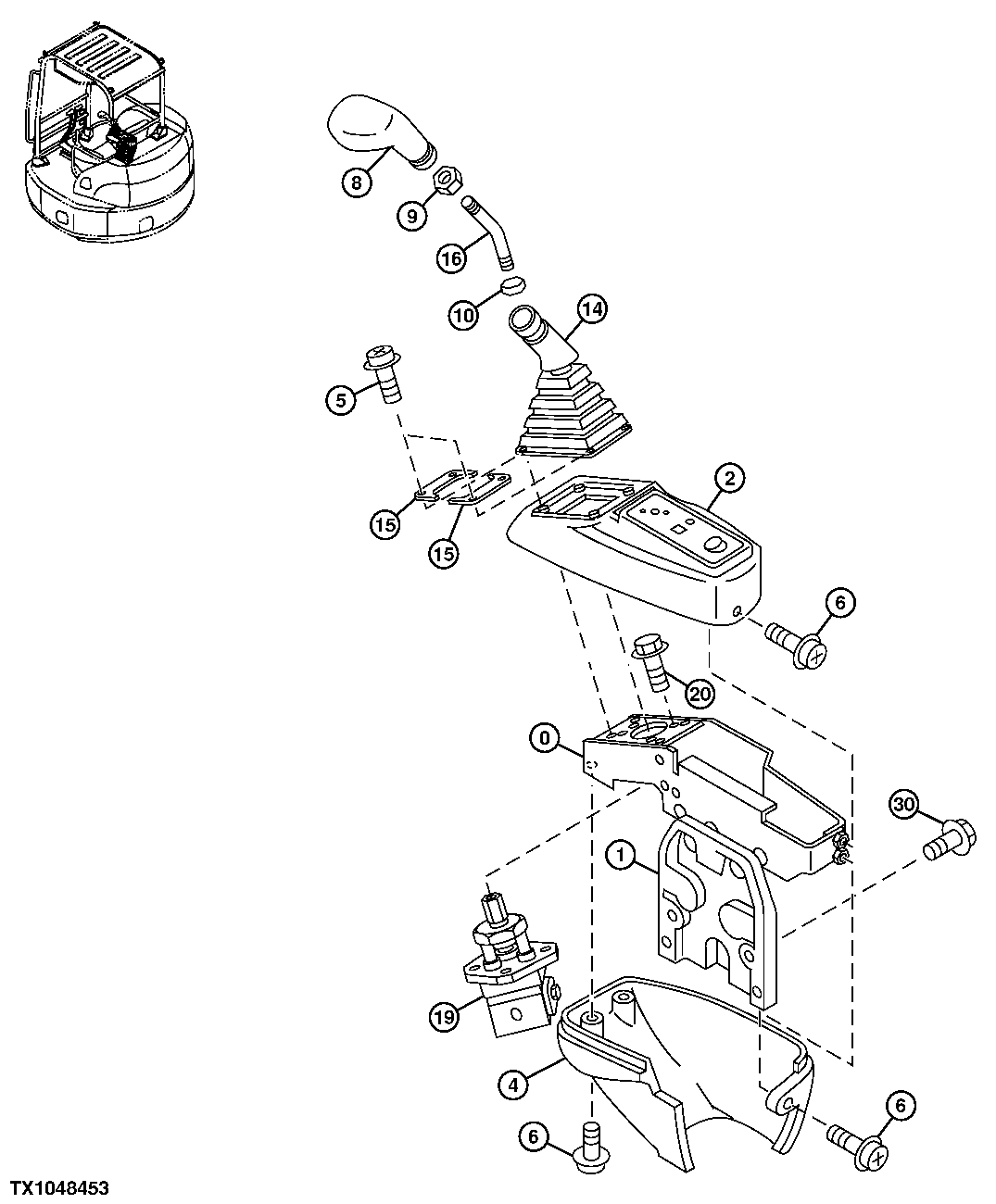

Запчасти John Deere 0C ZTS 152 - RIGHT CONSOLE AND PILOT CONTROL LEVER (BUCKET AND DIG) 3315 Controls Linkage

0

4458285

Frame

1шт.

1

4601939

Bracket

1шт.

2

4458286

Cover

1шт.

4

4458287

Cover

1шт.

5

21M7277

Screw

M6 X 25

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

6

Screw With Washer

( J680616 NLA)

4шт.

21M7577

Socket Head Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

8

2045473

Grip

1шт.

9

14M7357

Nut

M12 (SUB FOR J952012)

1шт.

10

14M7141

Nut

M14

1шт.

14

2045470

Boot

1шт.

15

4458366

Plate

2шт.

16

4488460

Lever

1шт.

19

Hyd Actuated Control Valve

(COMPONENTS ON ANOTHER PAGE) ( 4462567 NLA)

1шт.

4632725

Valve

(COMPONENTS NOT CURRENTLY AVAILABLE)

1шт.

20

Bolt

( J020816 NLA)

4шт.

19M7932

Cap Screw

M8 X 16

4шт.

12M7056

Lock Washer

8 mm

4шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

4шт.

Bolt

( J260820 NLA)

4шт.

19M7139

Cap Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

30

19M7881

Screw

M8 X 20

3шт.

12M7056

Lock Washer

8 mm

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.
