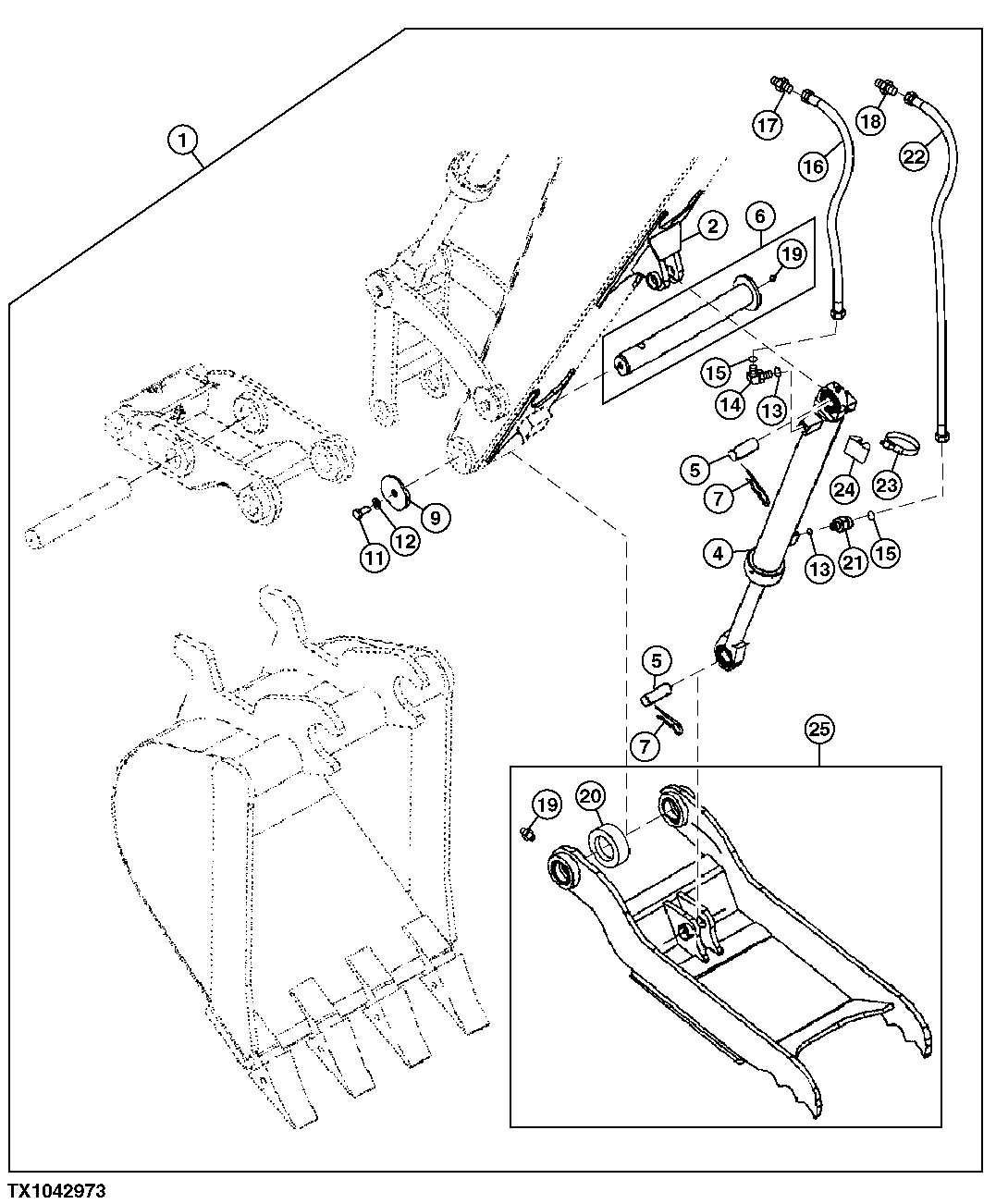

Запчасти John Deere 0C ZTS 137 - Hydraulic Bucket Clamp (Replacement) 3302 Bucket With Teeth

1

AT318256G

Field Installation Kit

(WHOLE GOODS)

1шт.

2

AT317646

Bracket

1шт.

4

AH216639

Hydraulic Cylinder

1шт.

5

L101620

Pin Fastener

2шт.

6

AT317652

Pin Fastener

1шт.

7

11M7073

Cotter Pin

8 X 63 mm (SUB FOR 11M 7056, THIS APPLICATION)

2шт.

9

L77320

Washer

1шт.

11

19H2472

Cap Screw

1/2" X 1"

1шт.

12

12H301

Lock Washer

1/2"

1шт.

13

R28782

O-Ring

USE WITH 38H1435

2шт.

R26448

O-Ring

USE WITH 38H1004

2шт.

14

38H1435

Elbow Fitting

Use With -4 Port Cylinders

1шт.

38H1004

Elbow Fitting

Use with -6 Port Cylinders

1шт.

15

T77613

O-Ring

2шт.

16

AT280275

Hydraulic Hose

1шт.

17

M131863

Hydr. Quick Coupler Plug

1шт.

18

M131862

Hyd. Quick-Connect Coupler

1шт.

19

T162396

Lubrication Fitting

2шт.

20

T213166

Bushing

2шт.

21

38H1160

Adapter Fitting

(SUB FOR 38H1309, THIS APPLICATION)

1шт.

22

AT322165

Hydraulic Hose

1шт.

23

AR21999

Hose Clamp

1шт.

24

T105774

Guide

1шт.

25

AT317614

Clamp

1шт.
