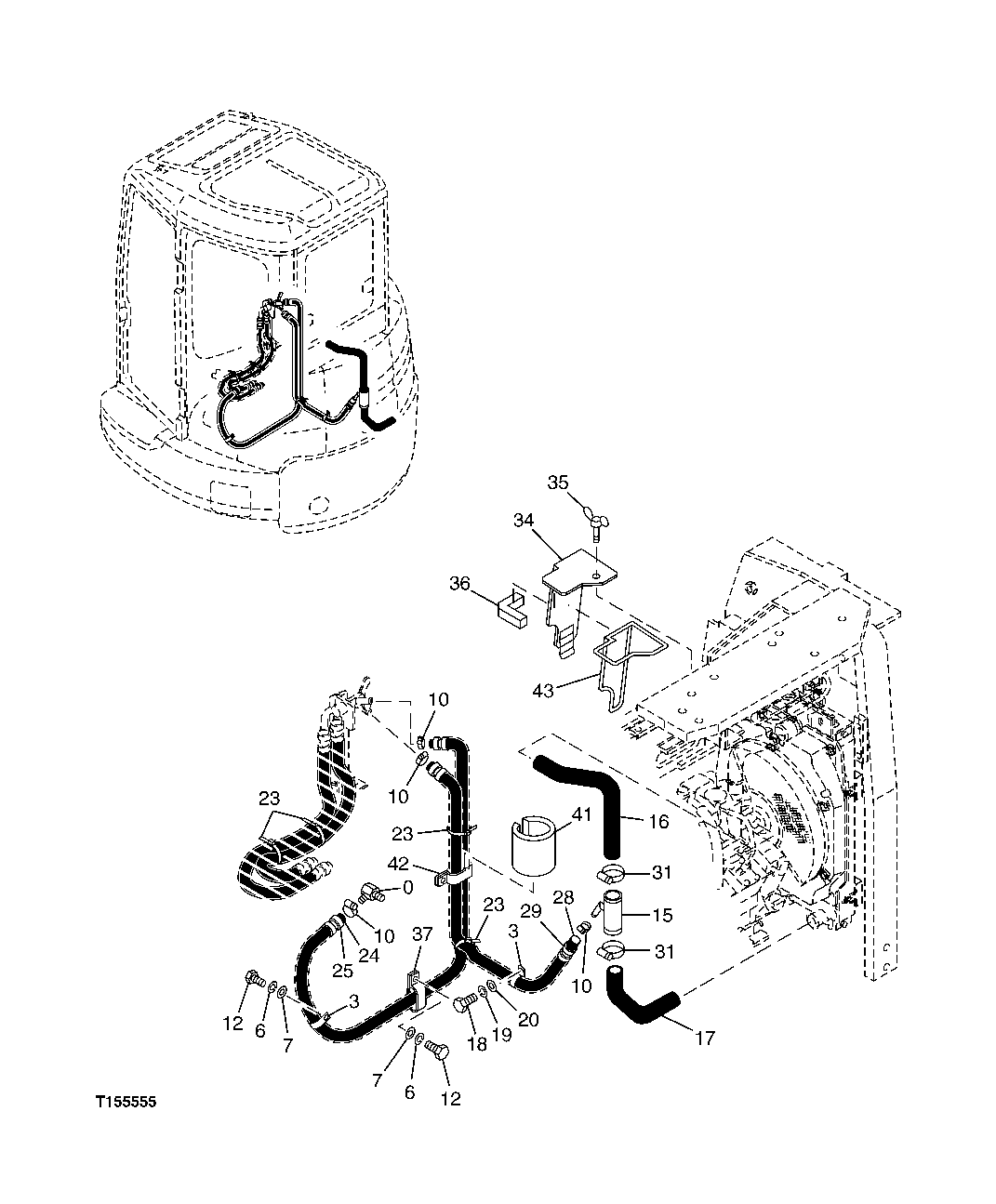

Запчасти John Deere 0C ZTS 93 - CAB HEATER SUPPORT 1831 HEATER HOSES & CONTROLS

0

9752876

Elbow Fitting

1шт.

3

XCL-19

Hose Clamp

(SUB FOR 4192035)

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

2шт.

10

WZ2141223

Hose Clamp

4шт.

12

19M7938

Cap Screw

M10 X 20

2шт.

15

8078418

Fitting

1шт.

16

3095013

Radiator Hose

1шт.

17

3095014

Radiator Hose

1шт.

18

19M7881

Screw

M8 X 20 (SUB FOR J960820)

1шт.

19

12M7056

Lock Washer

8 mm

1шт.

20

12M7036

Lock Plate

1шт.

23

H77698

Tie Band

4шт.

24

4475420

Bulk Hose

1шт.

25

4475423

Sleeve

(SUB FOR 4475422)(CTL 2007MM)

1шт.

28

Bulk Hose

( 4475421, 4342071 NLA) (FURNISH TY 22326 BULK MATERIAL) (CUT TO LENGTH)

1шт.

29

4475423

Sleeve

1шт.

31

TY22470

Clamp

2шт.

34

9757895

Cover

1шт.

35

21M7243

Wing Screw

M8 X 16

1шт.

36

4478973

Isolator

1шт.

37

R50454

Clamp

(SUB FOR 4411911)

1шт.

41

4479470

Isolator

1шт.

42

R50454

Clamp

(SUB FOR 4295017 OR 4411911)

1шт.

43

4468100

Isolator

1шт.
