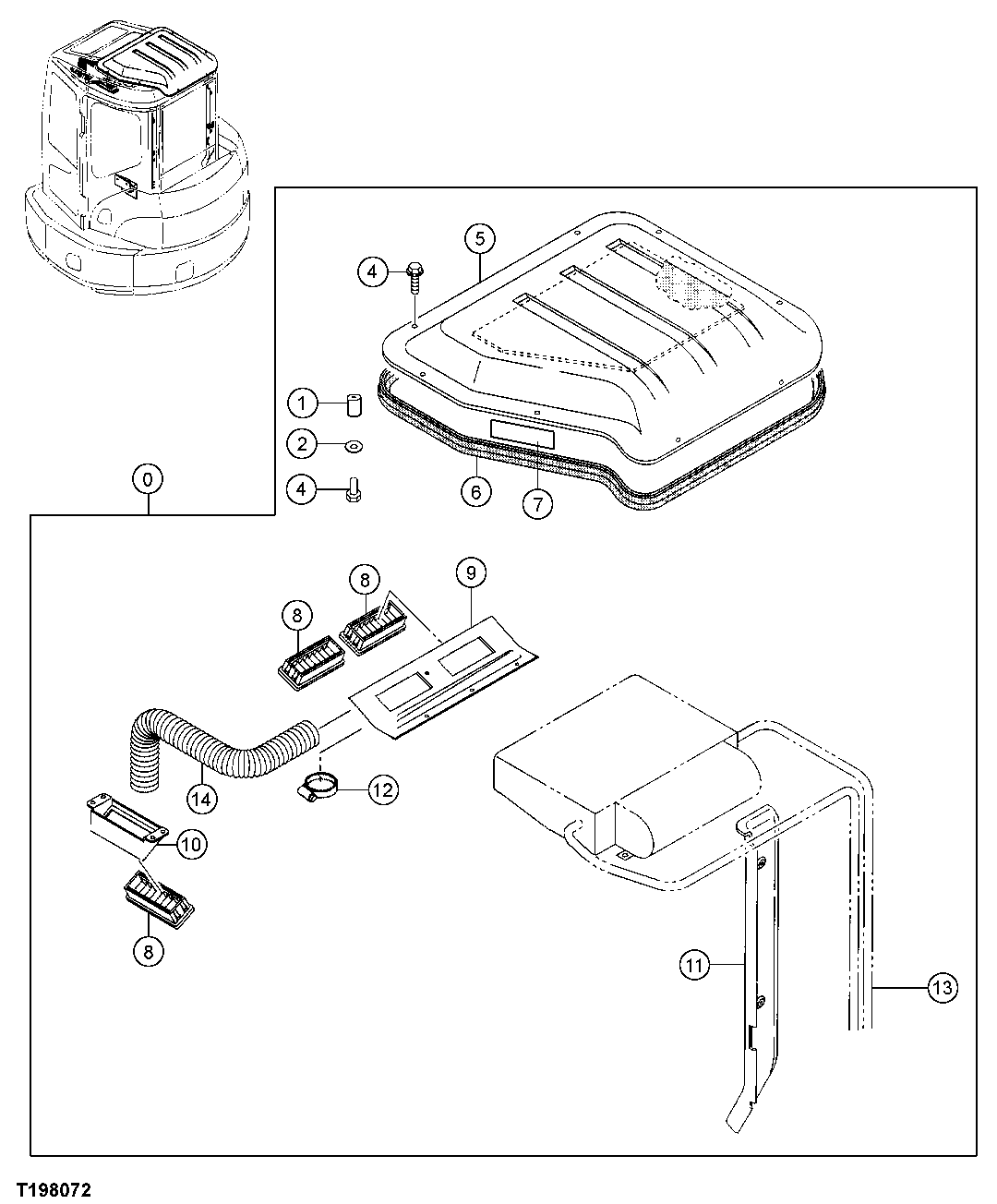

Запчасти John Deere 0C ZTS 91 - AIR CONDITIONER ROOF TOP COMPONENTS 1830 HEATING AND AIR CONDITIONING

0

Air Conditioner Kit

(WHOLEGOODS) ( AT305610 NLA)

1шт.

1

T203577

Bushing

6шт.

2

T125809

Washer

6шт.

4

19M7300

Cap Screw

M6 X 10

13шт.

24M7139

Washer

6.400 X 18 X 1.600 mm

13шт.

5

4483447

Roof

1шт.

6

AT305616

Isolator

1шт.

7

AT305617

Isolator

(FOAM)

1шт.

8

AT306882

Louver

3шт.

9

T205275

Plate

1шт.

10

T205274

Plate

1шт.

11

T205999

Panel

(CORNER TRIM)

1шт.

12

AR21999

Hose Clamp

4шт.

13

T205278

Hose

(DRAIN TUBE) (CUT TO LENGTH)

1шт.

14

T205279

Hose

(FLEX)

1шт.
