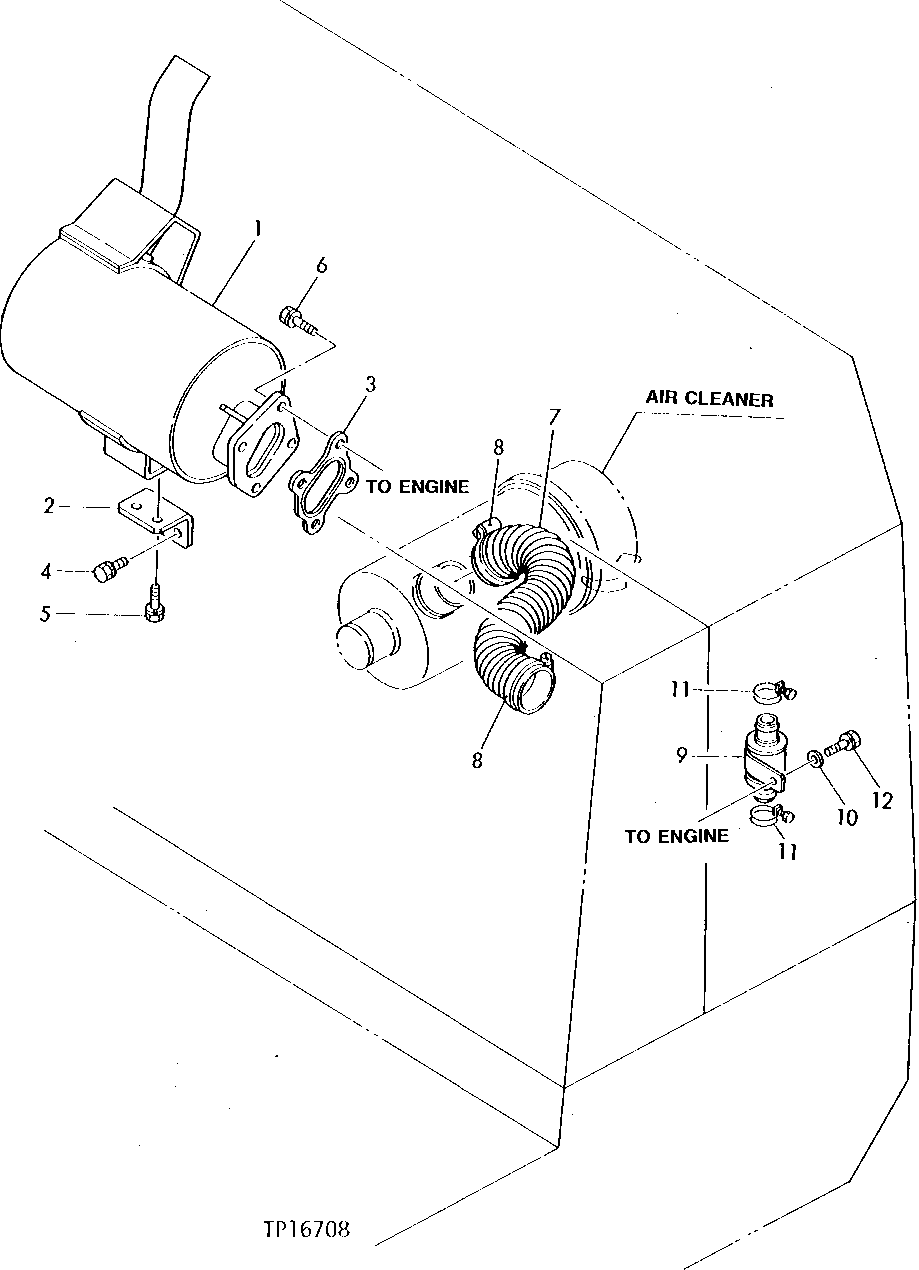

Запчасти John Deere 0 2 - EXHAUST SYSTEM 530 - ENGINE AUXILIARY SYSTEM 5

1

T110660

MUFFLER

1шт.

2

T110661

SUPPORT

1шт.

3

RG60592

GASKET

(SUB FOR T110665)

1шт.

4

19M7932

CAP SCREW

M8 X 16

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

5

19M7881

SCREW

M8 X 20

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

6

19M7881

SCREW

M8 X 20

4шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

7

T110194

SUCTION HOSE

1шт.

8

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

2шт.

9

T111400

FILTER

DUST

1шт.

10

CH15392

WASHER

1шт.

11

WZ2141223

HOSE CLAMP

(SUB FOR CH16743 OR AR21837, THIS APPLICATION) (SUB FOR AA34965)

2шт.

12

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

1шт.

12M7066

LOCK WASHER

10 MM

1шт.
