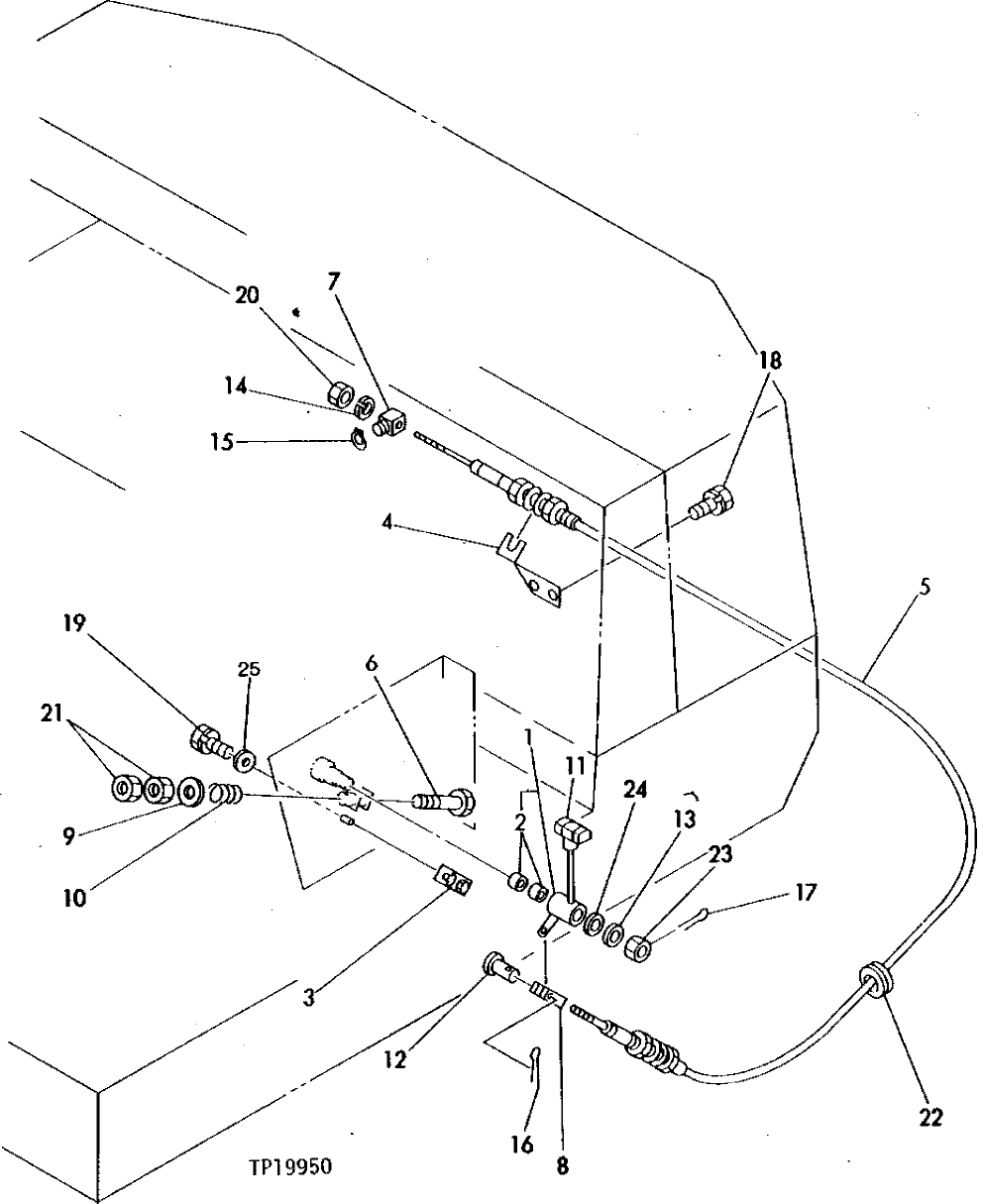

Запчасти John Deere 0 2 - ENGINE SPEED CONTROL 515 - ENGINE AUXILIARY SYSTEM 5

1

AT110085

LEVER

1шт.

2

T110633

BUSHING

2шт.

3

AT110086

SUPPORT

1шт.

4

T110195

SUPPORT

1шт.

5

T110196

CABLE

1шт.

6

T110086

BOLT

1шт.

7

T110012

PIVOT

1шт.

8

T110013

UNIVERSAL JOINT

1шт.

9

T110007

WASHER

1шт.

10

T110385

SPRING

1шт.

11

T110795

GRIP

1шт.

12

T110002

PIN

1шт.

13

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

14

12M7064

LOCK WASHER

5 MM

1шт.

15

CH11490

RING

1шт.

16

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR T110418) (SUB FOR 11M7009)

1шт.

17

11M7015

COTTER PIN

3.200 X 25 MM

1шт.

18

19M7932

CAP SCREW

M8 X 16

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

19

19M7881

SCREW

M8 X 20

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

20

14M7272

NUT

M6, (SUB FOR CH17809)

1шт.

21

14M7274

NUT

M10

2шт.

22

T110606

GROMMET

1шт.

23

14M7177

NUT

M12, (SUB FOR T110001)

1шт.

24

T110618

DISK SPRING

2шт.

25

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.
