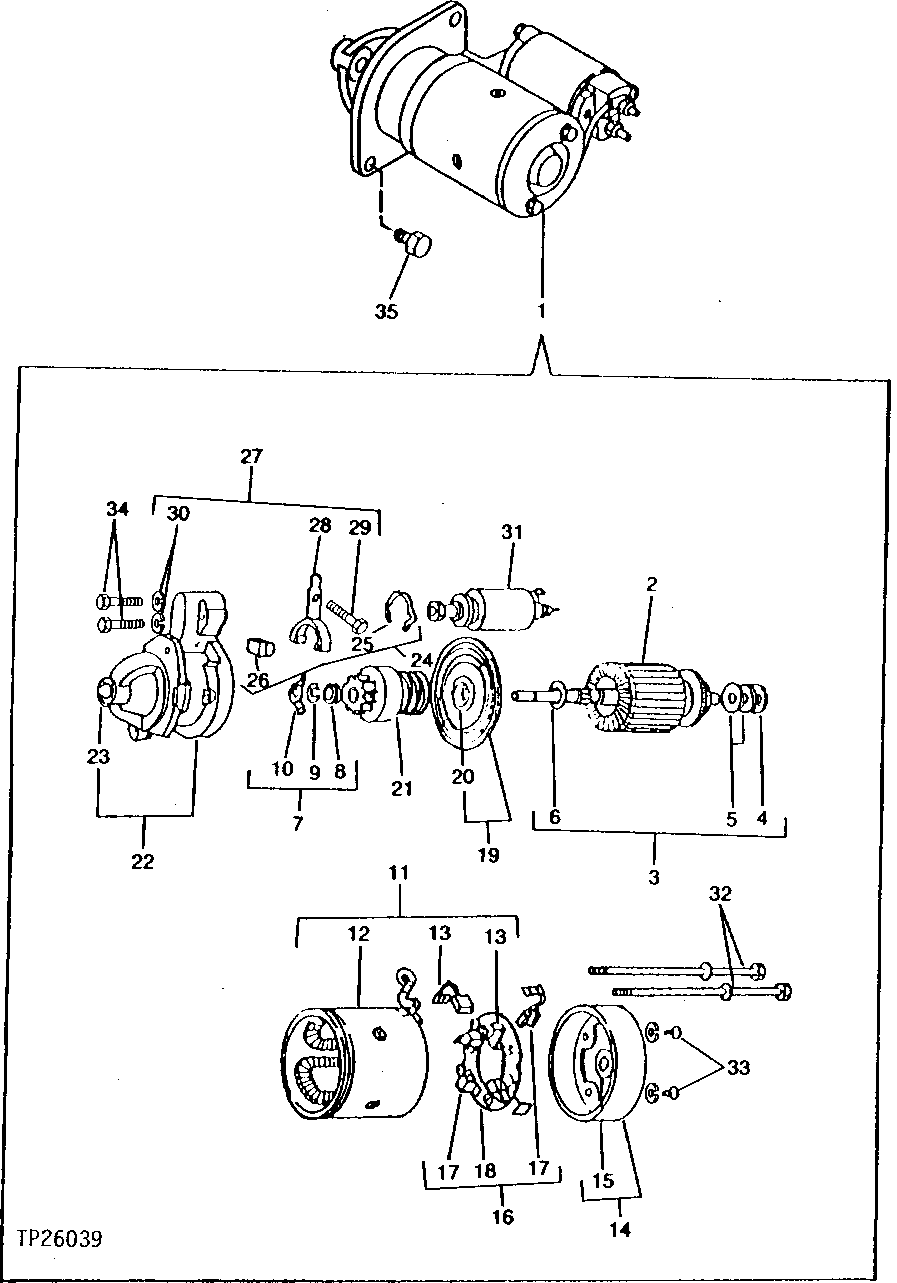

Запчасти John Deere 0 2 - STARTING MOTOR 422 - ENGINE 4

1

AT110301

ELECTRIC MOTOR

1шт.

2

AT110786

ARMATURE

1шт.

3

AT110787

KIT

1шт.

4

THRUST WASHER

(SUB AT110787)

2шт.

5

THRUST WASHER

(SUB AT110787)

4шт.

6

THRUST WASHER

(SUB AT110787)

2шт.

7

AT110788

MOUNTING PARTS

1шт.

8

STOP

(SUB AT110788)

1шт.

9

SEALING WASHER

(SUB AT110788)

1шт.

10

CLIP

(SUB AT110788)

1шт.

11

AT110790

ELECTRICAL COIL

1шт.

12

AT110791

SET SCREW

4шт.

13

AT110792

MOUNTING PARTS

2шт.

14

AT110793

COVER

1шт.

15

AT110794

MOUNTING PARTS

1шт.

16

AT110795

HOLDER

1шт.

17

AT110796

MOUNTING PARTS

2шт.

18

AT110797

MOUNTING PARTS

4шт.

19

AT110798

BEARING

1шт.

20

T111965

BEARING

1шт.

21

M801387

PINION

(SUB FOR AT110800)

1шт.

22

AT110801

MOUNTING PARTS

1шт.

23

AT110802

GEAR CASE

1шт.

24

AT110803

COVER

1шт.

25

COVER

(SUB AT110803)

1шт.

26

COVER

(SUB AT110803)

1шт.

27

AT110804

LEVER

1шт.

28

LEVER

(SUB AT110804)

1шт.

29

PIN FASTENER

(SUB AT110804)

1шт.

30

SWITCH

(SUB AT110804)

1шт.

31

AT110805

SWITCH

1шт.

32

T111551

BOLT

2шт.

33

T111552

BOLT

(SUB FOR T111971)

2шт.

34

CH20077

BOLT

2шт.

35

19M7268

CAP SCREW

2шт.
