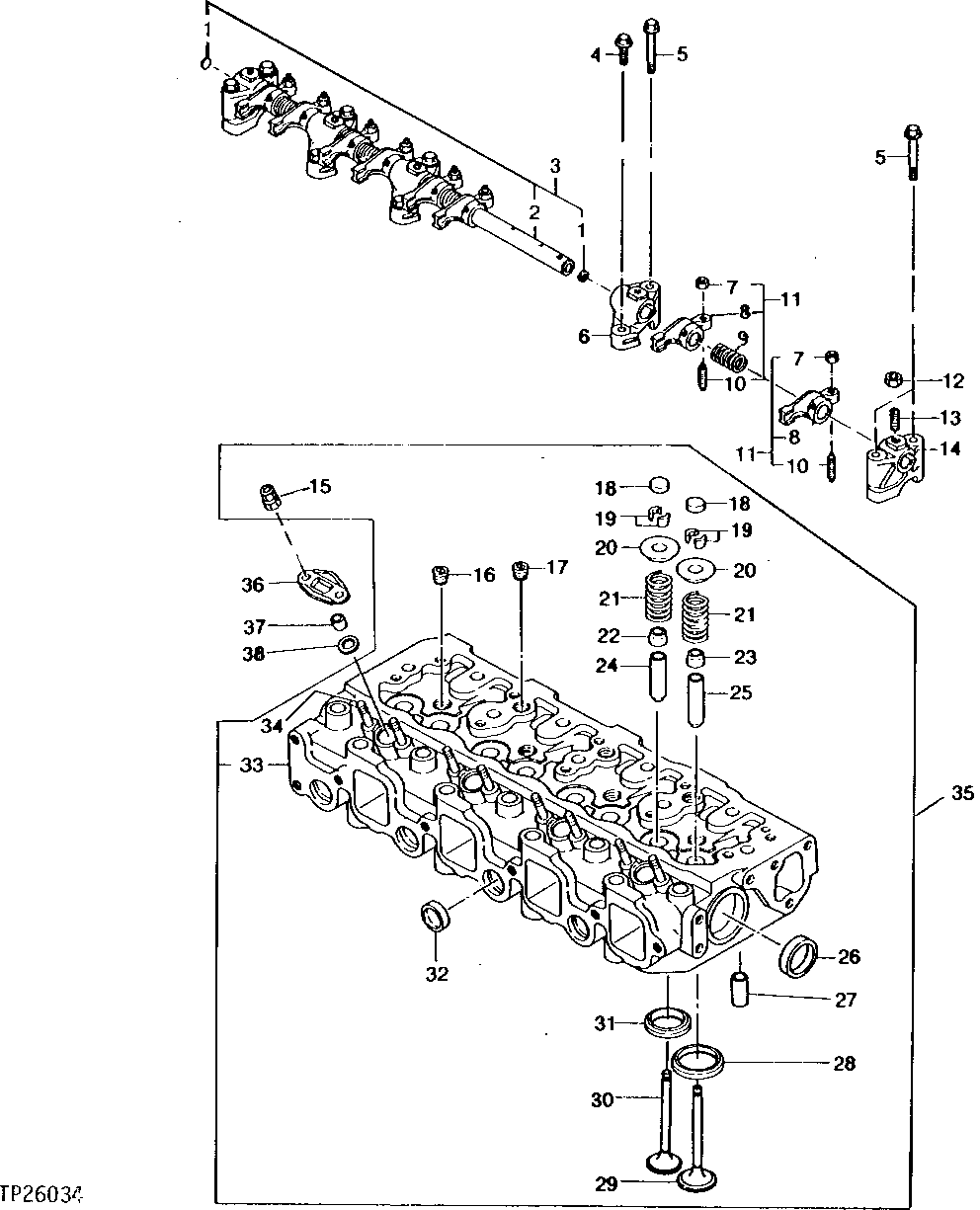

Запчасти John Deere 0 2 - ENGINE CYLINDER HEAD ROCKER ARMS AND VALVES 409 - ENGINE 4

1

M800002

PLUG

2шт.

2

SHAFT

(SUB AM875382)

1шт.

3

AM875382

SHAFT

1шт.

4

19M7867

SCREW

M8 X 25

3шт.

5

19M7800

SCREW

M8 X 50

7шт.

6

M801023

SUPPORT

3шт.

7

M801028

NUT

1шт.

8

ARM

(SUB AM875383)

1шт.

9

M801025

SPRING

4шт.

10

M801027

SCREW

1шт.

11

AM875383

ARM

8шт.

12

14M7273

NUT

M8

3шт.

13

M801024

STUD

3шт.

14

M801022

SUPPORT

2шт.

15

M87828

NUT

8шт.

16

15H666

PIPE PLUG

9.525 MM (3/8")

4шт.

17

CH16747

PLUG

3шт.

18

M801224

CAP

8шт.

19

AM878862

KIT

(SUB FOR CH10067) (INCLUDES SET OF TWO RETAINERS)

4шт.

20

M801223

RETAINER

8шт.

21

M801222

SPRING

8шт.

22

T110650

SEAL

4шт.

23

CH10450

SEAL

4шт.

24

M801228

GUIDE

(EXHAUST)

4шт.

25

M801227

GUIDE

(INTAKE)

4шт.

26

CH16751

PLUG

2шт.

27

M801217

PLUG

4шт.

28

T110652

VALVE SEAT

(SUCTION)

4шт.

29

M801220

INTAKE VALVE

4шт.

30

T110649

EXHAUST VALVE

(EXHAUST)

4шт.

31

T110653

VALVE SEAT

(EXHAUST)

4шт.

32

CH16749

PLUG

4шт.

33

CYLINDER HEAD

(SUB AT110253)

1шт.

34

M801219

BOLT

8шт.

35

AT110253

CYLINDER HEAD

1шт.

36

M801018

RETAINER

4шт.

37

M801016

SEAL

4шт.

38

M801017

VALVE SEAT

4шт.
