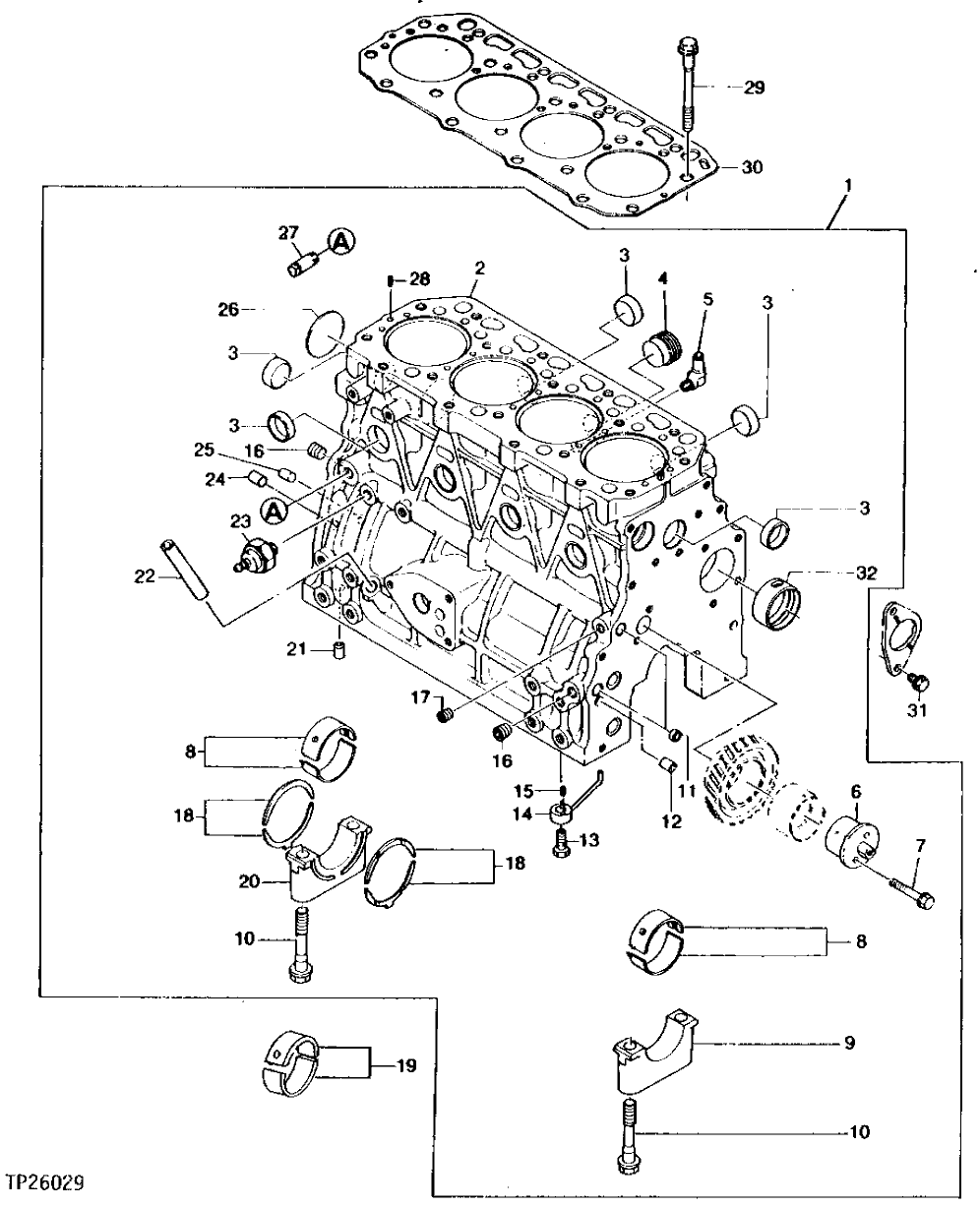

Запчасти John Deere 0 2 - ENGINE CYLINDER BLOCK 404 - ENGINE 4

1

AT110864

CYLINDER BLOCK

(SUB FOR AT110610)

1шт.

2

CYLINDER BLOCK

(SUB AT110864)

1шт.

3

30M7023

CAP

(SUB FOR CH10642)

8шт.

4

15H562

PIPE PLUG

25.400 MM (1") WITHOUT ENGINE COOLANT HEATER

1шт.

5

T110720

ELBOW FITTING

1шт.

6

M800978

SHAFT

IDLER

1шт.

7

CH19101

BOLT

2шт.

8

AM875371

BEARING

STANDARD (REQUIRES 5 SETS)

5шт.

9

BEARING CAP

(SUB AT110864)

4шт.

10

M801189

BOLT

10шт.

11

M87801

PLUG

2шт.

12

M800974

PIPE

2шт.

13

T110724

CHECK VALVE

4шт.

14

T110725

NOZZLE

4шт.

15

CH15575

PIN

4шт.

16

CH10335

PLUG

3шт.

17

15H558

PIPE PLUG

3.175 MM (1/8")

1шт.

18

AM875373

BEARING KIT

CRANKSHAFT (REQUIRES 2 SETS)

2шт.

19

AM875374

BEARING KIT

(.25 MM, .010 INCH - OVERSIZE)

5шт.

20

BEARING CAP

(SUB AT110864)

1шт.

21

T110645

PIPE

1шт.

22

CH15495

GUIDE

1шт.

23

M809526

SWITCH

(SUB FOR CH15500) ENGINE OIL PRESSURE

1шт.

24

M802255

PIN

7.925 X 18.999 MM (5/16" X 0.748") (SUB FOR CH10534)

2шт.

25

T111356

PIN

2шт.

26

M806840

PLUG

(SUB FOR M800973)

1шт.

27

T110730

UNIVERSAL JOINT

1шт.

28

CH18079

SPRING PIN

2шт.

29

M801186

BOLT

18шт.

30

ENGINE CYLINDER HEAD GASKET

(SUB FOR T110639) ( AT212082 NO LONGER AVAILABLE FOR SERVICE)

1шт.

31

19M7865

SCREW

M8 X 16

2шт.

32

M800977

BUSHING

1шт.
