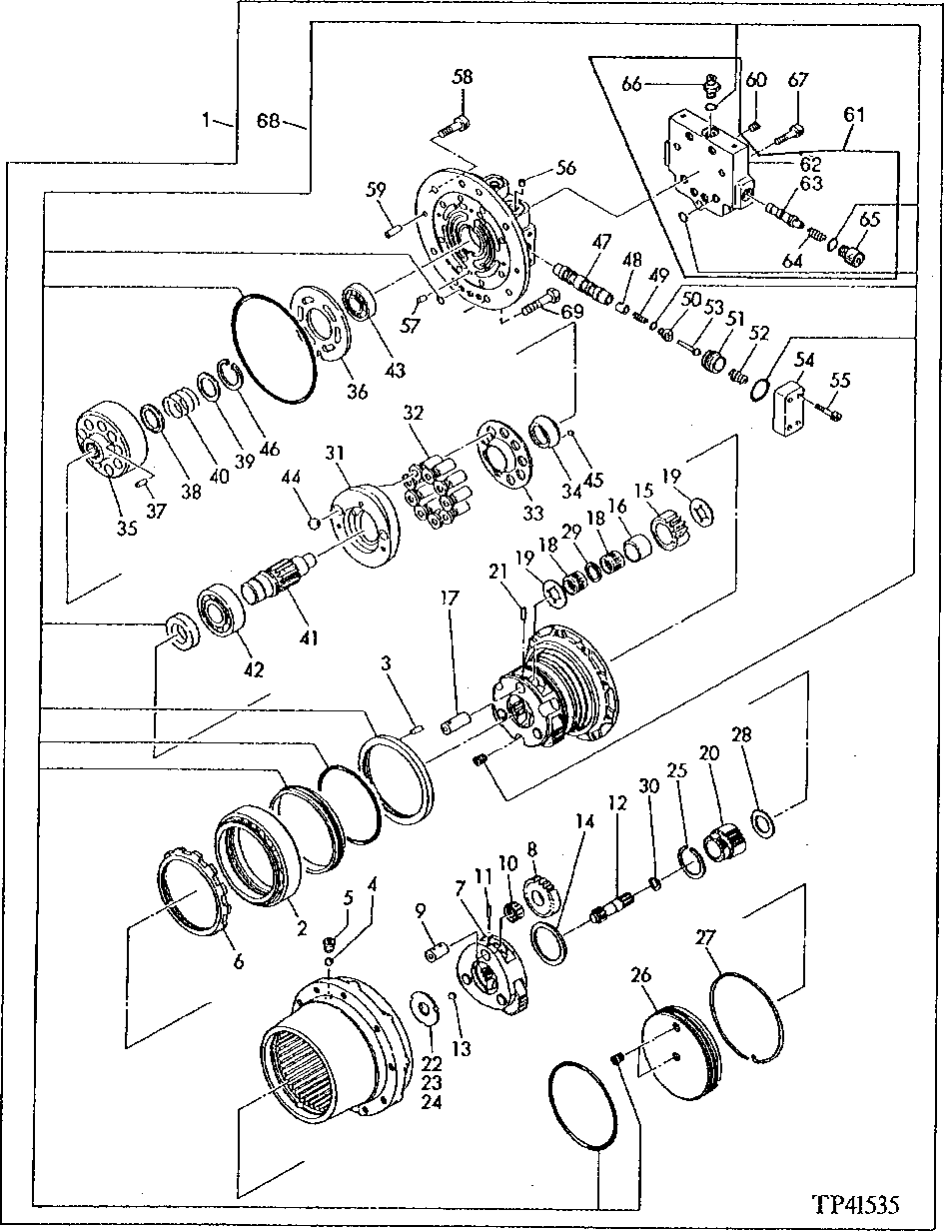

Запчасти John Deere 0 4 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

T110816

HYDRAULIC MOTOR

2шт.

2

T111473

BALL BEARING

1шт.

3

T111474

PIN

1шт.

4

T111475

BALL

99шт.

5

T111476

PLUG

1шт.

6

T111477

NUT

1шт.

7

T111478

HOLDER

1шт.

8

T111479

GEAR

3шт.

9

T111480

SHAFT

3шт.

10

T111481

GAUGE

3шт.

11

T111482

SPRING PIN

3шт.

12

T111483

GEAR

1шт.

13

R42849

BALL

9.525 MM (3/8") (SUB FOR T111484)

1шт.

14

T111485

BUSHING

1шт.

15

T111486

GEAR

3шт.

16

T111487

BUSHING

3шт.

17

T111488

SHAFT

3шт.

18

T111489

GAUGE

6шт.

19

T111490

BUSHING

6шт.

20

T111491

GEAR

1шт.

21

T111492

SPRING PIN

3шт.

22

BUSHING

( T111493 NO LONGER AVAILABLE)

1шт.

23

T111494

BUSHING

1шт.

24

T111495

BUSHING

1шт.

25

T111496

SNAP RING

1шт.

26

T111497

COVER

1шт.

27

T111498

WIRE

1шт.

28

T111499

BUSHING

(USE IF AVAILABLE)

1шт.

29

T111500

BUSHING

3шт.

30

T111501

SNAP RING

1шт.

31

T111502

PLATE

1шт.

32

T111533

PISTON

9шт.

33

T111503

PLATE

1шт.

34

T111504

BUSHING

1шт.

35

T111534

CYLINDER BLOCK

1шт.

36

T111505

PLATE

1шт.

37

T111506

PIN

3шт.

38

T111507

BUSHING

1шт.

39

T111508

BUSHING

1шт.

40

T111509

SPRING

1шт.

41

T111510

SHAFT

1шт.

42

JD30067

BALL BEARING

(SUB FOR T111511)

1шт.

43

JD30007

BALL BEARING

(SUB FOR T111512)

1шт.

44

T111513

BALL

2шт.

45

T111514

BALL

1шт.

46

40M1860

SNAP RING

(SUB FOR T111515)

1шт.

47

T111516

PLUNGER

1шт.

48

T114100

HYD ACTUATED CONTROL VALVE

(SUB FOR T111517)

2шт.

49

T111518

SPRING

2шт.

50

T111519

PLUG

2шт.

51

T111520

PLATE

2шт.

52

T111071

SPRING

2шт.

53

T111521

PUSH ROD

2шт.

54

T111522

FLANGE

2шт.

55

T111523

BOLT

8шт.

56

T111524

ORIFICE

2шт.

57

T111525

PIN

1шт.

58

T111526

BOLT

8шт.

T111526

BOLT

6шт.

59

T111527

PIN

2шт.

60

T111476

PLUG

2шт.

61

AT111738

HYD ACTUATED CONTROL VALVE

(SUB FOR AT110674)

1шт.

62

HOUSING

( T111535 NO LONGER AVAILABLE)

1шт.

63

T114098

HYD ACTUATED CONTROL VALVE

2шт.

64

T114099

SPRING

(SUB FOR T111528)

2шт.

65

T111529

PLUG

2шт.

66

T111530

PLUG

1шт.

67

T114101

CAP SCREW

(SUB FOR T111531)

3шт.

68

T111532

SEAL KIT

1шт.

69

T114097

CAP SCREW

2шт.
