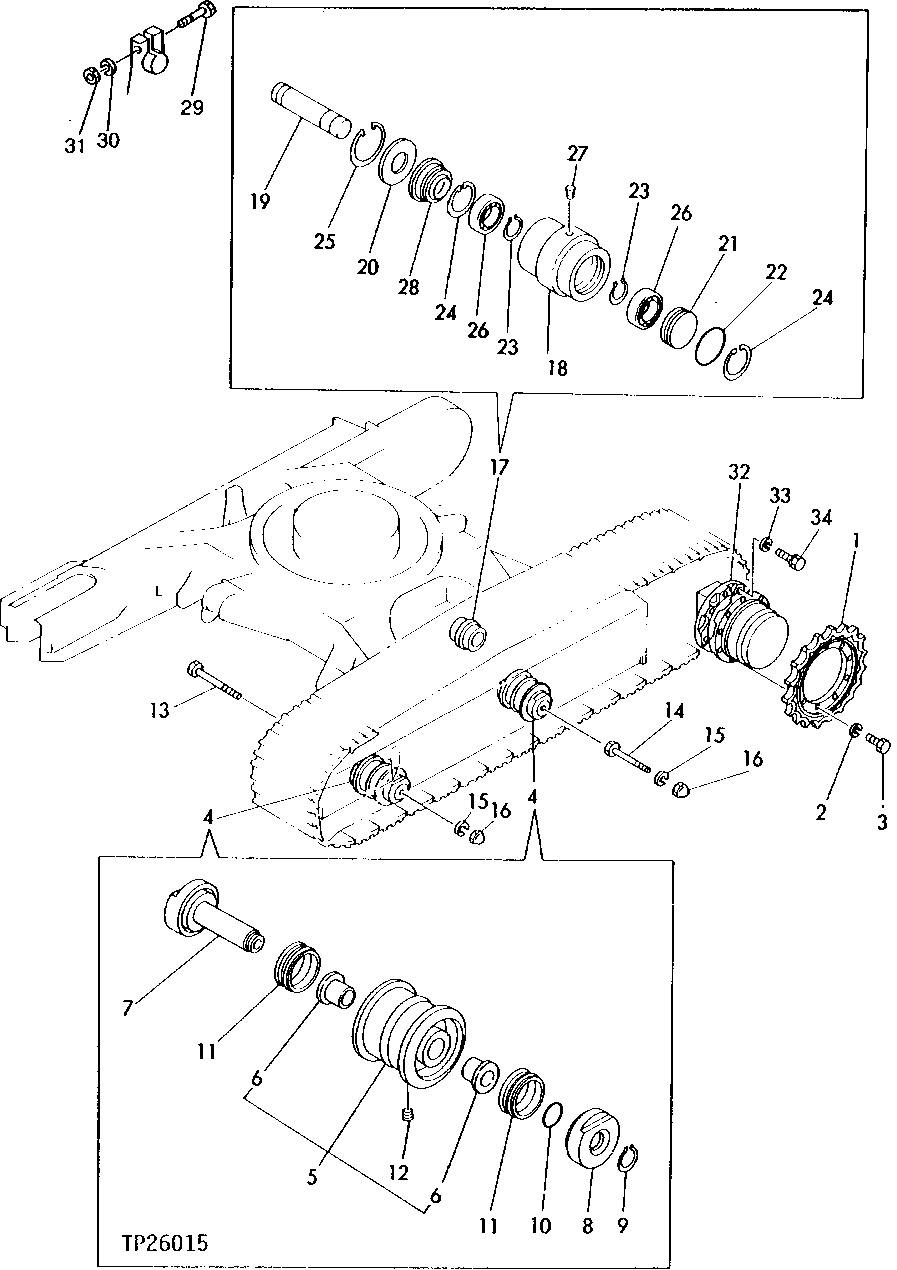

Запчасти John Deere 0 6 - CARRIER ROLLER 130 - TRACKS 1

1

T110083

CHAIN SPROCKET

2шт.

2

12M7068

LOCK WASHER

14 MM

18шт.

3

19M7392

CAP SCREW

M14 X 35

18шт.

4

AT110634

ROLLER

8шт.

5

ROLLER

( T110812 NO LONGER AVAILABLE, SUB AT110634)

8шт.

6

T110218

BUSHING

16шт.

7

SHAFT

( T110813 NO LONGER AVAILABLE) (PART MEETS OBSOLETE SERVICE PART POLICY)

8шт.

8

SEAL

( T110814 NO LONGER AVAILABLE, SUB AT110634)

8шт.

9

40M7084

SNAP RING

(SUB FOR CH11482)

8шт.

10

AT264324

O-RING

(SUB FOR CH10572, T32587, TH100044)

8шт.

11

T110515

SEAL

16шт.

12

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

8шт.

13

T110057

BOLT

6шт.

14

T110070

BOLT

2шт.

15

12M7069

LOCK WASHER

16 MM

8шт.

16

T110472

NUT

8шт.

17

AT110635

ROLLER CARRIAGE

2шт.

18

ROLLER

( T110219 NO LONGER AVAILABLE)

2шт.

19

T110220

SHAFT

2шт.

20

T110221

COVER

2шт.

21

T110222

COVER

2шт.

22

T110223

O-RING

2шт.

23

40M7084

SNAP RING

(SUB FOR CH11482)

4шт.

24

40M7043

SNAP RING

(SUB FOR CH15010)

4шт.

25

40M5099

SNAP RING

(SUB FOR CH14694)

2шт.

26

CH14887

BALL BEARING

4шт.

27

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

2шт.

28

T110815

SEAL

2шт.

29

19M7331

CAP SCREW

M12 X 65

2шт.

30

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

31

14M7275

NUT

M12

2шт.

32

T110816

HYDRAULIC MOTOR

2шт.

33

12M7068

LOCK WASHER

14 MM

18шт.

34

19M7392

CAP SCREW

M14 X 35

18шт.
