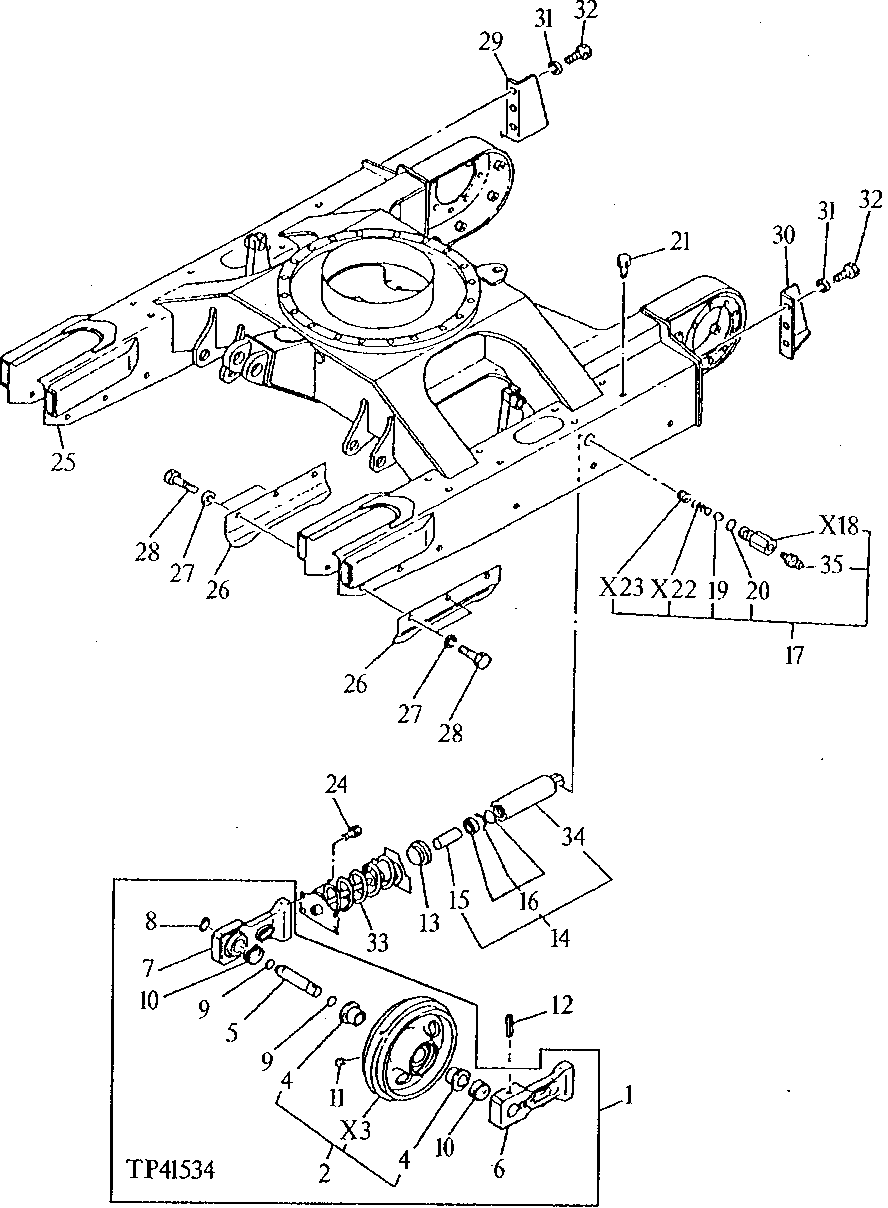

Запчасти John Deere 0 2 - TRACK FRAME AND IDLER 130 - TRACKS 1

1

AT110636

TRACK IDLER

2шт.

2

AT110095

ROLLER

1шт.

3

IDLER

(SUB AT110095)

1шт.

4

T110213

BUSHING

2шт.

5

T110214

SHAFT

1шт.

6

T110215

COVER

1шт.

7

T110216

COVER

1шт.

8

40M7046

SNAP RING

(SUB FOR CH11483)

1шт.

9

AT264324

O-RING

(SUB FOR CH10572, T32587, TH100044)

2шт.

10

T110516

SEAL

2шт.

11

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

1шт.

12

T110217

SPRING PIN

4шт.

13

AT110014

HOLDER

2шт.

14

AT110323

ADJUSTER

2шт.

15

PISTON

( T110099 NO LONGER AVAILABLE)

1шт.

16

AT110015

SEAL KIT

1шт.

17

AT110016

FLOW CONTROL HYD. VALVE

2шт.

18

THREADED NIPPLE

(SUB AT110016)

1шт.

19

400R

BALL

1шт.

20

CH11570

O-RING

1шт.

21

19M7166

CAP SCREW

M10 X 20

16шт.

12M7066

LOCK WASHER

10 MM

16шт.

22

SPRING

(SUB AT110016)

1шт.

23

SPRING

(SUB AT110016)

1шт.

24

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

8шт.

19M7493

CAP SCREW

M12 X 40

8шт.

25

FRAME

CONVENIENCE ASSEMBLY ( AT110114 NO LONGER AVAILABLE)

1шт.

26

T110230

GUARD

4шт.

27

12M7069

LOCK WASHER

16 MM

8шт.

28

T110462

BOLT

8шт.

29

AT110115

GUARD

1шт.

30

AT110116

GUARD

1шт.

31

12M7068

LOCK WASHER

14 MM

6шт.

32

T110806

BOLT

6шт.

33

T110818

SPRING

2шт.

34

MOUNTING PARTS

( AT110398 NO LONGER AVAILABLE)

1шт.

35

TH100074

LUBRICATION FITTING

1шт.
