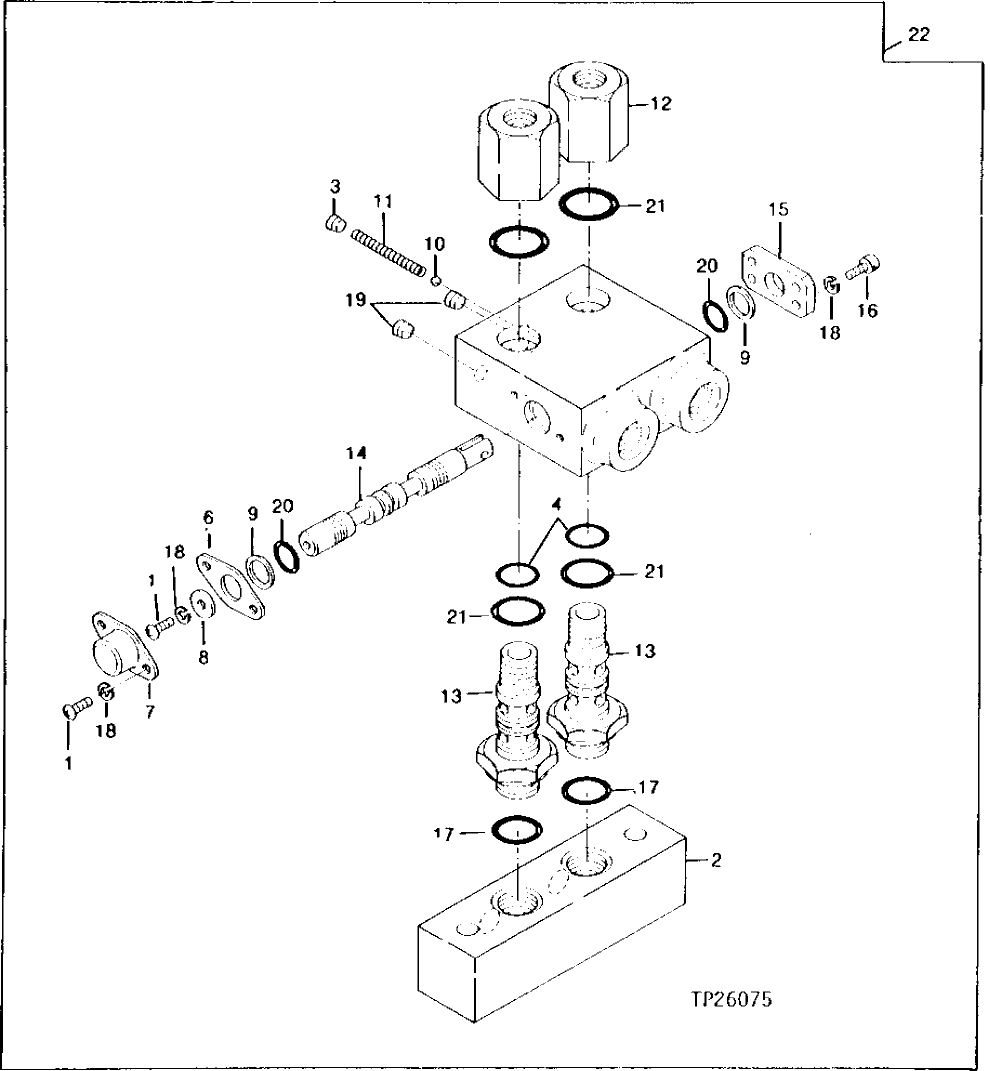

Запчасти John Deere 0 4 - THIRD FUNCTION SELECTOR VALVE 3360 - BACKHOE (EXCAVATOR) 33

1

CH10620

SCREW

3шт.

2

T114081

PLATE

1шт.

3

T114066

PLUG

1шт.

4

T114067

O-RING

2шт.

5

HOUSING

( T114068 NO LONGER AVAILABLE)

1шт.

6

T114069

PLATE

1шт.

7

T114070

CAP

1шт.

8

T114071

WASHER

1шт.

9

T114072

BACK-UP RING

2шт.

10

T114073

BALL

1шт.

11

T114074

SPRING

1шт.

12

T114082

NUT

2шт.

13

T114075

PLUG

2шт.

14

VALVE SPOOL

( T114076 NO LONGER AVAILABLE)

1шт.

15

T114077

PLATE

1шт.

16

T114078

SCREW

4шт.

17

T110590

PACKING

2шт.

18

12M7064

LOCK WASHER

5 MM

7шт.

19

15H558

PIPE PLUG

1/8"

2шт.

20

CH10569

PACKING

2шт.

21

966689

O-RING

(SUB FOR T114080) (SUB FOR TH108142)

4шт.

22

T111452

SELECTIVE CONTROL VALVE

1шт.
