Запчасти John Deere 0 2 - AUXILIARY FUNCTION CONTROL VALVE AND HYDRAULIC OIL LINES 3360 - BACKHOE (EXCAVATOR) 33

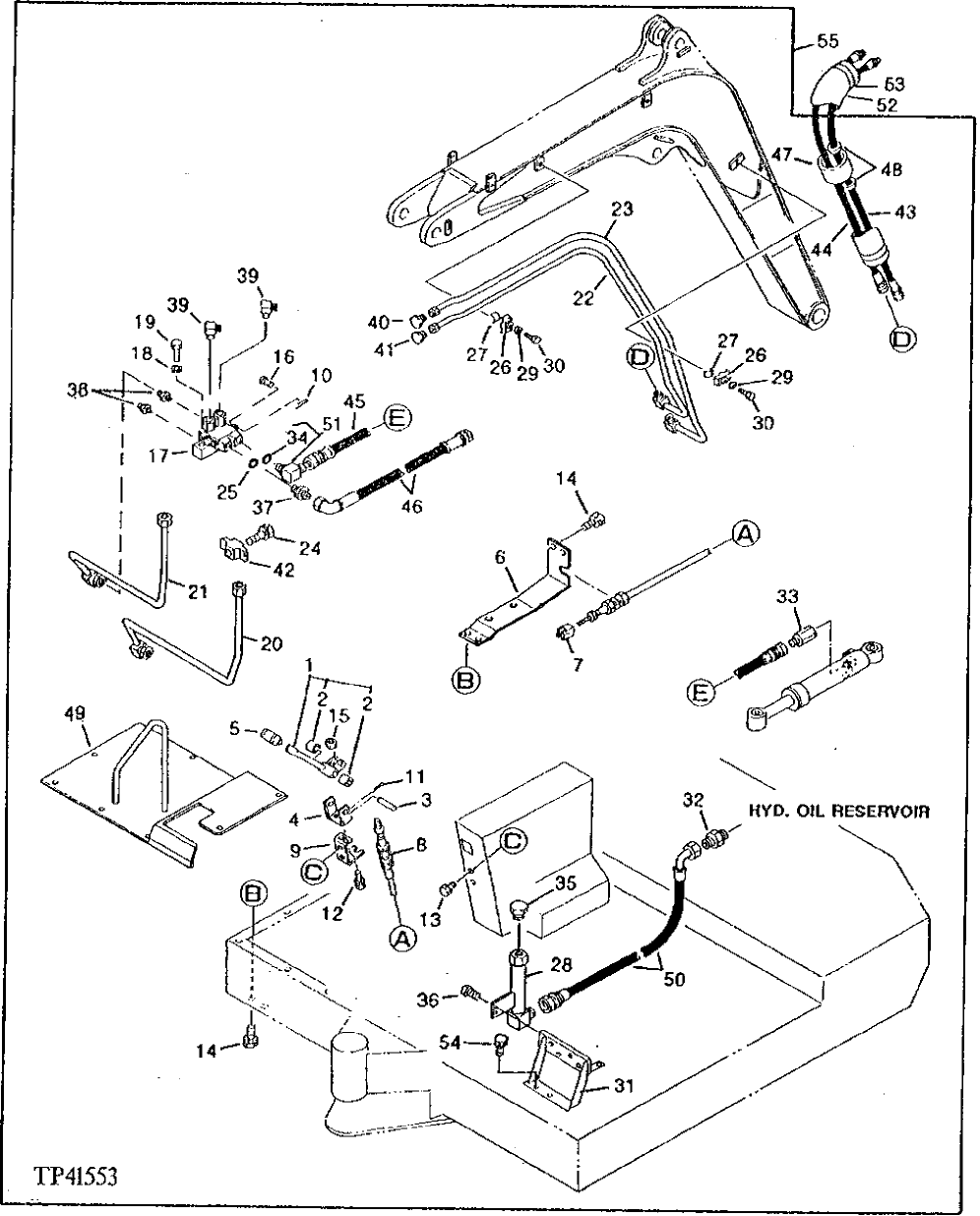

Схема запчастей John Deere 0 - 2 - AUXILIARY FUNCTION CONTROL VALVE AND HYDRAULIC OIL LINES 3360 - BACKHOE (EXCAVATOR) 33

Артикул

Название

Примечание

Количество

1

AT110671

LEVER

1шт.

2

T110633

BUSHING

2шт.

3

AT110001

SHAFT

(SUB FOR T111447)

1шт.

4

T110105

BRACKET

1шт.

5

T110837

GRIP

1шт.

6

T111448

SUPPORT

1шт.

7

T111449

LINK

1шт.

8

T111450

PUSH PULL CABLE

1шт.

9

T111451

BRACKET

1шт.

10

11M7094

COTTER PIN

1.600 X 16 MM, (SUB FOR T110417)

1шт.

11

11M7087

COTTER PIN

4 X 40 MM

1шт.

12

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

13

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

14

19M7166

CAP SCREW

M10 X 20

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

15

14M7229

NUT

M5

1шт.

16

T110484

PIN FASTENER

1шт.

17

T111452

SELECTIVE CONTROL VALVE

1шт.

18

12M7060

WASHER

5.300 MM

2шт.

19

CH15013

BOLT

2шт.

20

T111453

PIPE

1шт.

21

T111454

PIPE

1шт.

22

T111455

PIPE

1шт.

23

T111456

PIPE

1шт.

24

M800452

SCREW WITH WASHER

1шт.

25

T110593

PACKING

1шт.

26

T111457

CLAMP

(USE IF AVAILABLE)

4шт.

27

T111458

SPACER

4шт.

28

T111459

PIPE

1шт.

29

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

4шт.

30

19M7331

CAP SCREW

M12 X 65

4шт.

31

T111460

PIPE

1шт.

32

4156432

ADAPTER

(SUB FOR T111461) (SUB FOR TH101939)

1шт.

33

T111462

ADAPTER

1шт.

34

T110593

PACKING

1шт.

35

T111464

PLUG

1шт.

36

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

37

T110896

FITTING

1шт.

38

4154653

ADAPTER

(SUB FOR T110871) (SUB FOR TH100989)

2шт.

39

4154658

ELBOW FITTING

(SUB FOR T110870) (SUB FOR TH101039)

2шт.

40

T111465

PLUG

1шт.

41

T111464

PLUG

1шт.

42

T110599

CLAMP

1шт.

43

T111466

HYDRAULIC HOSE - FABRICATE

1шт.

44

T111467

HYDRAULIC HOSE - FABRICATE

1шт.

45

T111468

HYDRAULIC HOSE - FABRICATE

1шт.

46

T111469

HYDRAULIC HOSE - FABRICATE

1шт.

47

T111470

BUSHING

1шт.

48

T110897

GROMMET

2шт.

49

T111471

COVER

1шт.

50

T111472

HYDRAULIC HOSE - FABRICATE

1шт.

51

T111463

ELBOW FITTING

1шт.

52

T114060

COVER

WITH CANOPY

1шт.

53

T111653

TIE BAND

WITH CANOPY

2шт.

54

12M7066

LOCK WASHER

10 MM

2шт.

19M7402

CAP SCREW

M10 X 25

2шт.

55

VALVE

( AT107210 NO LONGER AVAILABLE)

1шт.

Выбрано товаров: 60
