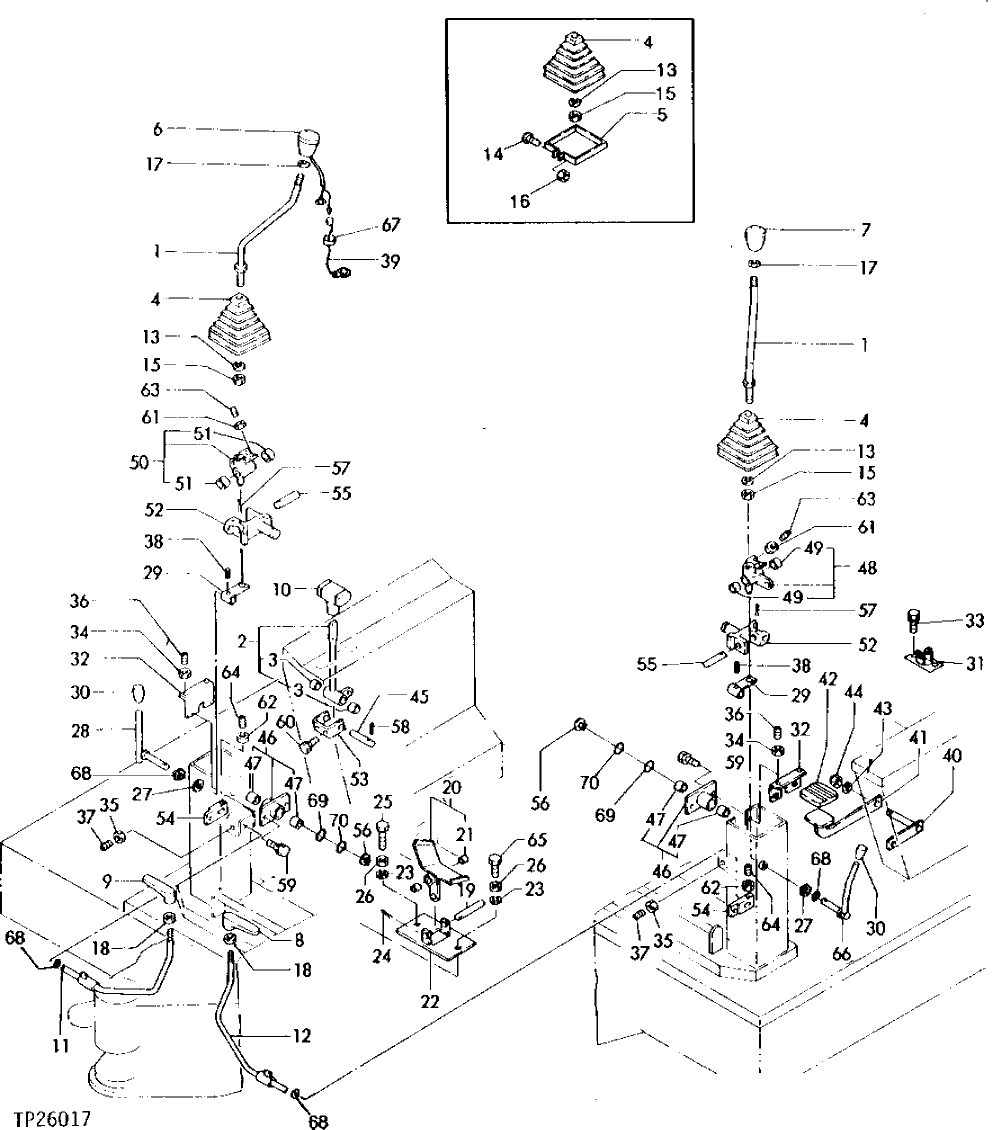

Запчасти John Deere 0 6 - CONTROL LEVERS, PEDALS AND LINKAGE 3315 - BACKHOE (EXCAVATOR) 33
№
Артикул
Название
Примечание
Количество
31
AT110109
SUPPORT
1шт.
32
AT110034
SUPPORT
2шт.
34
R67593
NUT
(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460) (CAB UNITS)
4шт.
14M7229
NUT
M5, (CANOPY UNITS)
4шт.
35
R67593
NUT
(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460) (CAB UNITS)
4шт.
14M7229
NUT
M5, (CANOPY UNITS)
4шт.
36
T114040
STUD
(SUB FOR T110841)
4шт.
37
T114040
STUD
(SUB FOR T110841)
4шт.
38
CH12299
PIN
2шт.
39
T110115
WIRING LEAD
(HORN)
1шт.
40
AT110082
LINK
1шт.
41
AT110033
PEDAL
1шт.
42
T110114
PAD
1шт.
43
24M7028
WASHER
10.500 X 20 X 2 MM
1шт.
44
T110464
NUT
1шт.
45
AT110001
SHAFT
1шт.
46
AT110029
BOSS
2шт.
AT111804
BOSS
2шт.
47
T110075
BUSHING
4шт.
CH14781
NEEDLE BEARING
4шт.
48
LINK
(SUB AT111805) (LEFT) ( AT110030 NO LONGER AVAILABLE)
1шт.
AT111805
LINK
(LEFT)
1шт.
49
T110633
BUSHING
2шт.
BUSHING
(SUB T110633) ( T114163 NO LONGER AVAILABLE)
2шт.
50
AT111806
LINK
(SUB FOR AT110031)
1шт.
AT111806
LINK
1шт.
51
T110633
BUSHING
2шт.
BUSHING
(SUB T110633) ( T114163 NO LONGER AVAILABLE)
2шт.
52
T110103
LINK
2шт.
T114164
LINK
2шт.
53
T110105
BRACKET
1шт.
54
T110106
ARM
2шт.
55
T110111
SHAFT
2шт.
56
40M7080
SNAP RING
(SUB FOR CH16769)
2шт.
40M1823
SNAP RING
(SUB FOR CH14826)
2шт.
57
11M7087
COTTER PIN
4 X 40 MM
2шт.
58
11M7087
COTTER PIN
4 X 40 MM
1шт.
61
R67593
NUT
(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460) (CAB UNITS)
4шт.
14M7229
NUT
M5, (CANOPY UNITS)
4шт.
62
R67593
NUT
(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460) (CAB UNITS)
2шт.
14M7229
NUT
M5, (CANOPY UNITS)
2шт.
63
T114040
STUD
(SUB FOR T110841)
4шт.
64
T114040
STUD
(SUB FOR T110841)
2шт.
65
CH11605
BOLT
1шт.
19M7169
CAP SCREW
1шт.
66
LEVER
(CAB UNITS) (NO LONGER AVAILABLE FOR SERVICE)
1шт.
AT110402
LEVER
(CANOPY UNITS)
1шт.
67
T110612
TIE BAND
2шт.
68
T110113
SHIM
4шт.
69
T114160
O-RING
2шт.
70
T110403
LINING
2шт.
Выбрано товаров: 57
