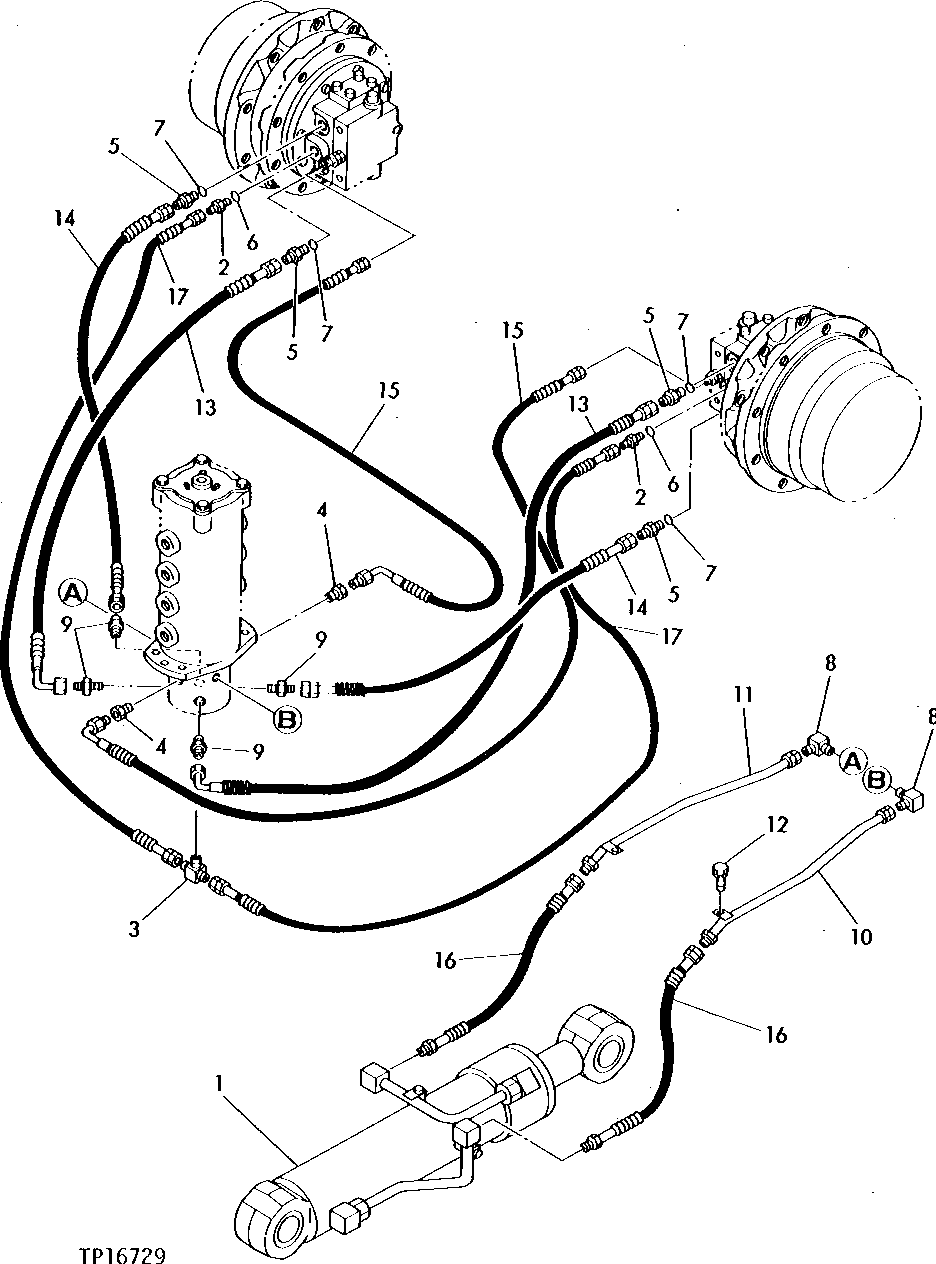

Запчасти John Deere 0 24 - PROPEL MOTOR AND BLADE HYDRAULICS 2160 - MAIN HYDRAULIC SYSTEM 21

1

T110898

HYDRAULIC CYLINDER

DOZER BLADE

1шт.

2

T110900

FITTING

2шт.

3

T110863

TEE FITTING

1шт.

4

X0103-4-4

ADAPTER

(SUB FOR T110901 OR TH100963)

2шт.

5

X8-10F5OX

ADAPTER

(SUB FOR TH101006) (SUB FOR T110902, ALONG WITH U46489)

4шт.

6

CH11570

O-RING

2шт.

7

4506418

O-RING

(SUB FOR T110438) (SUB FOR U46489)

4шт.

8

T115889

ELBOW FITTING

(SUB FOR T110866)

2шт.

9

4154653

ADAPTER

(SUB FOR T110871) (SUB FOR TH100989)

4шт.

10

T110903

BLADE

1шт.

11

T110904

OIL LINE

1шт.

12

19M7402

CAP SCREW

M10 X 25

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

13

T110905

PIPE

2шт.

14

T110906

PIPE

2шт.

15

T110907

PIPE

2шт.

16

T110908

PIPE

2шт.

17

T110909

PIPE

2шт.
