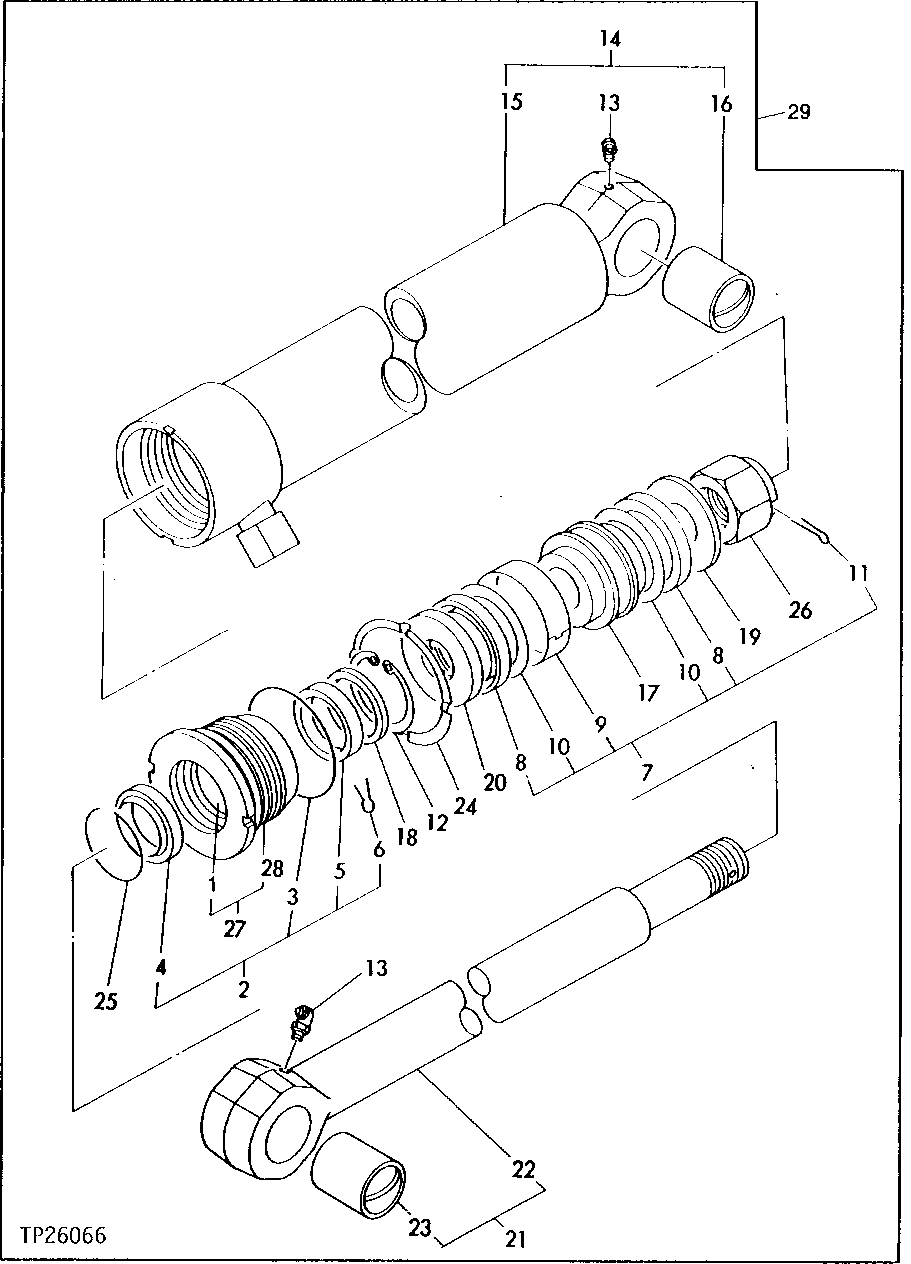

Запчасти John Deere 0 22 - ARM CYLINDER 2160 - MAIN HYDRAULIC SYSTEM 21

1

T110572

BUSHING

1шт.

2

AT110357

SEAL KIT

1шт.

3

AT264319

O-RING

(SUB FOR T110447)

1шт.

4

T110558

SEAL

1шт.

5

T110560

PACKING

1шт.

6

11M7100

COTTER PIN

6.300 X 80 MM, (SUB FOR T110421)

1шт.

7

AT110358

SEAL KIT

1шт.

8

T110564

PACKING

2шт.

9

T110575

RING

1шт.

10

T110579

BACK-UP RING

2шт.

11

11M7100

COTTER PIN

6.300 X 80 MM, (SUB FOR T110421)

1шт.

12

T110415

RING

1шт.

13

CH18478

FITTING

2шт.

14

AT110359

HYDRAULIC CYLINDER BARREL

1шт.

15

HYDRAULIC CYLINDER BARREL

(SUB AT110359)

1шт.

16

T110965

BUSHING

1шт.

17

T110534

PISTON

1шт.

18

T110538

GASKET

1шт.

19

T110540

GASKET

1шт.

20

T110550

GASKET

1шт.

21

T110966

ROD

1шт.

22

ROD

(SUB T110966)

1шт.

23

T110965

BUSHING

1шт.

24

T110548

WASHER

1шт.

25

T110551

RING

1шт.

26

T110554

NUT

1шт.

27

AT110360

HYDR. CYLINDER ROD GUIDE

1шт.

28

HYDR. CYLINDER ROD GUIDE

(SUB AT110360)

1шт.

29

AT110356

HYDRAULIC CYLINDER

1шт.
