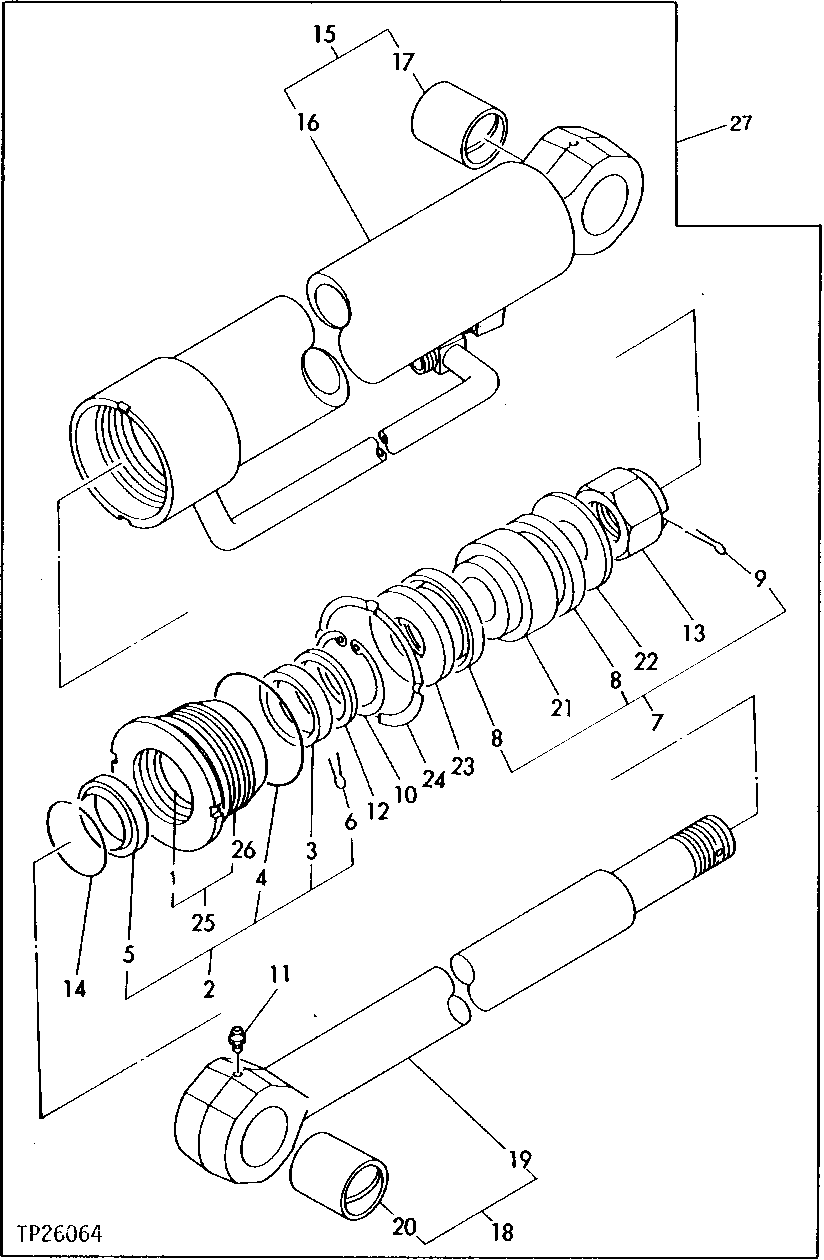

Запчасти John Deere 0 16 - SWING CYLINDER 2160 - MAIN HYDRAULIC SYSTEM 21

1

T110492

BUSHING

1шт.

2

AT110369

SEAL KIT

1шт.

3

T110506

PACKING

1шт.

4

AT264319

O-RING

(SUB FOR T110447)

1шт.

5

T110505

SEAL

1шт.

6

11M7032

COTTER PIN

5 X 50 MM, (SUB FOR T110420)

1шт.

7

AT110370

SEAL KIT

1шт.

8

T110564

PACKING

2шт.

9

11M7032

COTTER PIN

5 X 50 MM, (SUB FOR T110420)

1шт.

10

CH13494

SNAP RING

1шт.

11

TH100074

LUBRICATION FITTING

(SUB FOR T110449 OR CH11575)

1шт.

12

T110495

GASKET

1шт.

13

T110504

NUT

1шт.

14

T110511

RING

1шт.

15

TUBE

(SUB AT110368)

1шт.

16

HYDRAULIC CYLINDER BARREL

(SUB AT110368)

1шт.

17

T110545

BUSHING

1шт.

18

T110979

ROD

1шт.

19

ROD

(SUB T110979)

1шт.

20

T110545

BUSHING

1шт.

21

T110535

PISTON

1шт.

22

T110541

GASKET

1шт.

23

T110542

GASKET

1шт.

24

T110548

WASHER

1шт.

25

AT110233

HYDR. CYLINDER ROD GUIDE

1шт.

26

HYDR. CYLINDER ROD GUIDE

(SUB AT110233)

1шт.

27

AT110368

HYDRAULIC CYLINDER

1шт.
