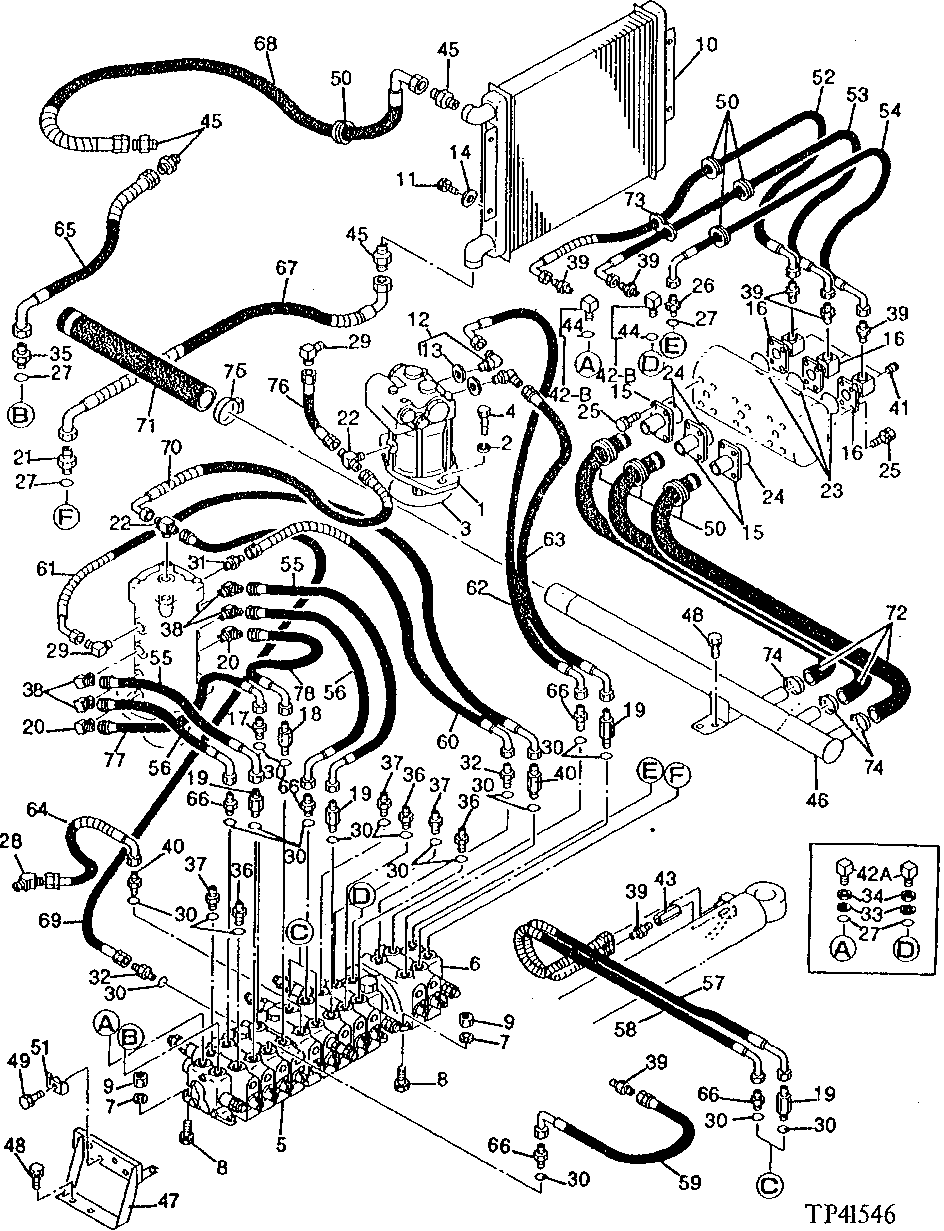

Запчасти John Deere 0 8 - HYDRAULIC SYSTEM COMPONENTS, LINES AND HOSES 2160 - MAIN HYDRAULIC SYSTEM 21

1

MOTOR

SWING ( AT110130 NO LONGER AVAILABLE)

1шт.

2

12M7068

LOCK WASHER

14 MM

2шт.

3

T110443

O-RING

1шт.

4

T110855

CAP SCREW

2шт.

5

CONTROL VALVE

( AT110132 NO LONGER AVAILABLE)

1шт.

6

CONTROL VALVE

( AT110133 NO LONGER AVAILABLE)

1шт.

7

12M7060

WASHER

5.300 MM

7шт.

8

19M7168

CAP SCREW

M10 X 30

7шт.

12M7066

LOCK WASHER

10 MM

7шт.

9

14M7274

NUT

M10

7шт.

10

T110272

OIL COOLER

1шт.

11

19M7881

SCREW

M8 X 20

4шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

12

4154672

ELBOW FITTING

(SUB FOR T110856) (SUB FOR TH101008)

2шт.

13

4506418

O-RING

(SUB FOR T110438) (SUB FOR U46489)

1шт.

14

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

15

AT110134

FLANGE

3шт.

16

T110857

FLANGE

3шт.

17

T110858

THREADED NIPPLE

1шт.

18

T110859

THREADED NIPPLE

1шт.

19

T110860

THREADED NIPPLE

4шт.

20

4154656

ELBOW FITTING

(SUB FOR T110861) (SUB FOR TH101588)

2шт.

21

T110869

FITTING

(SUB FOR T110862)

1шт.

22

T110863

TEE FITTING

2шт.

23

AT264360

O-RING

(SUB FOR T110440, TH104930, 4506430)

3шт.

24

T110441

O-RING

3шт.

25

19M7166

CAP SCREW

M10 X 20

24шт.

12M7066

LOCK WASHER

10 MM

24шт.

26

T110864

FITTING

1шт.

27

T110590

PACKING

5шт.

T110590

PACKING

3шт.

28

T115887

ELBOW FITTING

(SUB FOR T110865)

1шт.

29

T115889

ELBOW FITTING

(SUB FOR T110866)

2шт.

30

T110593

PACKING

21шт.

31

T115957

ADAPTER

(SUB FOR T110867)

1шт.

32

T110868

FITTING

2шт.

33

T110601

RING

1шт.

34

T110602

NUT

1шт.

35

T110869

FITTING

1шт.

36

T110608

FITTING

3шт.

37

T110609

ADAPTER

3шт.

38

4154658

ELBOW FITTING

(SUB FOR T110870) (SUB FOR TH101039)

4шт.

39

4154653

ADAPTER

(SUB FOR T110871) (SUB FOR TH100989)

7шт.

40

T110872

FITTING

2шт.

41

T110873

PLUG

3шт.

42A

TEE FITTING

(SUB AT111543)

2шт.

42B

AT111543

FITTING

2шт.

43

AT110135

FLOW CONTROL HYD. VALVE

1шт.

44

T110590

PACKING

1шт.

45

T115827

ADAPTER

(SUB FOR T110875)

4шт.

46

AT110136

PIPE

1шт.

47

AT110137

SUPPORT

1шт.

48

19M7402

CAP SCREW

M10 X 25

2шт.

12M7066

LOCK WASHER

10 MM

2шт.
