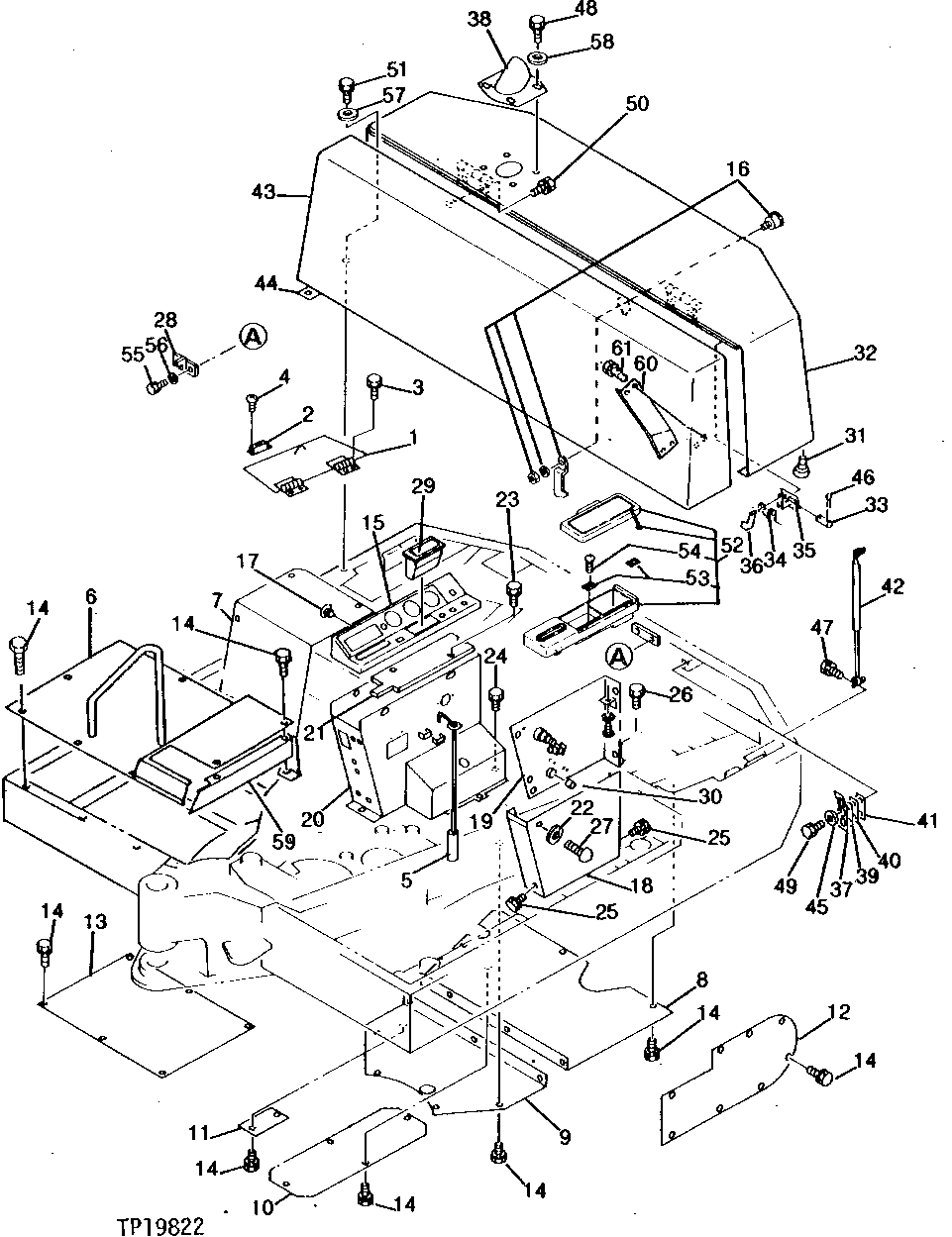

Запчасти John Deere 0 4 - HOOD AND ACCESS COVERS 1910 - SHEET METAL AND STYLING 19

40

SHIM

NO LONGER AVAILABLE

1шт.

41

SHIM

NO LONGER AVAILABLE

1шт.

42

T110256

SPRING

2шт.

43

AT110474

COVER

(CAB UNITS)

1шт.

T114052

COVER

(SUB FOR T114052) (CANOPY UNITS)

1шт.

44

T111041

STRAP

4шт.

45

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

46

11M7077

COTTER PIN

1.600 X 25 MM, (SUB FOR 11M7076)

4шт.

47

19M8425

CAP SCREW

M6 X 16

8шт.

12M7006

LOCK WASHER

6 MM

8шт.

48

19M7881

SCREW

M8 X 20

4шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

49

19M7166

CAP SCREW

M10 X 20

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

50

19M7402

CAP SCREW

M10 X 25

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

51

19M7168

CAP SCREW

M10 X 30, (CANOPY UNITS)

4шт.

19M8637

CAP SCREW

M10 X 40, (CANOPY UNITS)

6шт.

CH11118

WASHER

(CANOPY UNITS)

4шт.

12M7060

WASHER

5.300 MM, (CANOPY UNITS)

6шт.

19M7402

CAP SCREW

M10 X 25, (CAB UNITS)

6шт.

12M7066

LOCK WASHER

10 MM, (CAB UNITS)

6шт.

52

AT111725

INSTRUMENT PANEL

(SUB FOR AT110397) (USE IF AVAILABLE - IF AT111725 NOT AVAILABLE, SUB INDIVIDUAL COMPONENTS)

1шт.

53

T114048

HINGE

CAB, (SUB FOR T111032)

2шт.

T114048

HINGE

CANOPY

2шт.

54

T114049

SCREW

12шт.

55

19M7881

SCREW

M8 X 20

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

56

T110587

WASHER

(SUB FOR T111408)

2шт.

57

24M7028

WASHER

10.500 X 20 X 2 MM

6шт.

58

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

59

T114272

COVER

(SUB FOR T114051) (CANOPY UNITS)

1шт.

60

T114053

SUPPORT

(CANOPY UNITS)

1шт.

61

19M7166

CAP SCREW

M10 X 20, (CANOPY UNITS)

4шт.

12M7066

LOCK WASHER

10 MM, (CANOPY UNITS)

4шт.
