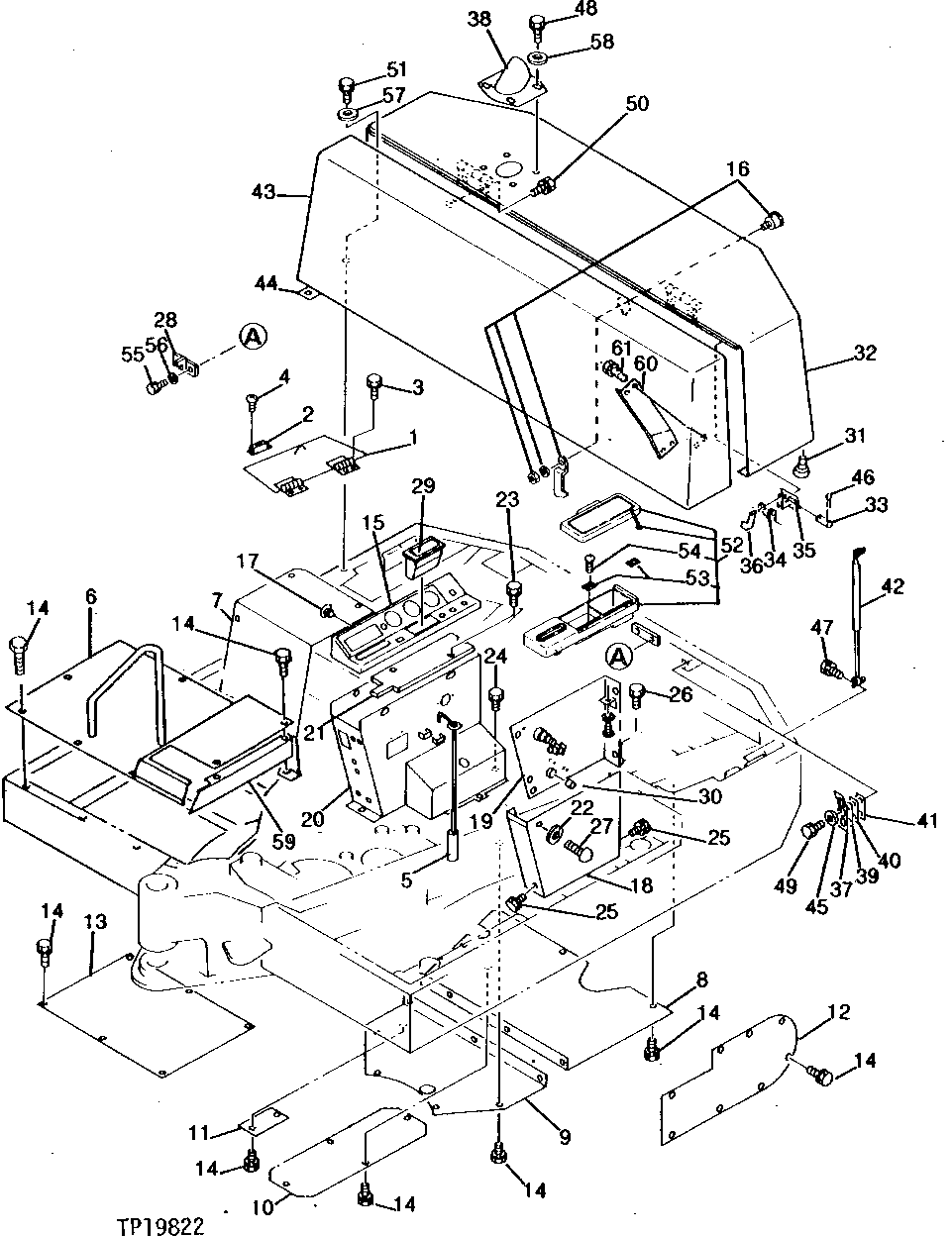

Запчасти John Deere 0 2 - HOOD AND ACCESS COVERS 1910 - SHEET METAL AND STYLING 19

1

AT110084

COVER

(CANOPY UNITS)

1шт.

AT111869

COVER

(CANOPY UNITS)

1шт.

AT110084

COVER

(CAB UNITS)

1шт.

2

T110193

CATCH

1шт.

3

19M7166

CAP SCREW

M10 X 20

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

4

T110457

SCREW WITH WASHER

(SUB FOR T111407)

2шт.

5

AT110118

PIN

1шт.

6

AT110471

COVER

1шт.

7

T110845

COVER

(CAB UNITS)

1шт.

T114050

COVER

(CANOPY UNITS)

1шт.

8

AT110119

COVER

1шт.

T114274

COVER

1шт.

9

T110237

COVER

1шт.

10

T114271

COVER

(SUB FOR T110238)

1шт.

11

T114273

COVER

(SUB FOR T110239)

1шт.

12

T110240

COVER

2шт.

13

T110241

COVER

(USE IF AVAILABLE)

1шт.

14

19M7166

CAP SCREW

M10 X 20

55шт.

12M7066

LOCK WASHER

10 MM

55шт.

15

T110846

INSTRUMENT PANEL

(CAB UNITS)

1шт.

T111033

PANEL

(CANOPY UNITS)

1шт.

16

AT110499

KEY

1шт.

17

T110847

PLUG

2шт.

18

AT110045

PANEL

1шт.

19

T110848

STAND

1шт.

20

AT110125

STAND

1шт.

21

AT110052

PLATE

1шт.

22

CH13482

WASHER

3шт.

23

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

24

19M7166

CAP SCREW

M10 X 20

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

25

19M7166

CAP SCREW

M10 X 20

5шт.

12M7066

LOCK WASHER

10 MM

5шт.

26

19M7166

CAP SCREW

M10 X 20

3шт.

12M7066

LOCK WASHER

10 MM

3шт.

27

T110849

SCREW WITH WASHER

3шт.

28

AT110498

HOOK

1шт.

29

T110526

ASHTRAY

1шт.

30

T110633

BUSHING

2шт.

31

T110337

ISOLATOR

4шт.

32

AT110485

COVER

1шт.

33

T110393

PIN

2шт.

34

T110394

SPRING

2шт.

35

AT110127

LEVER

2шт.

36

T110251

LATCH

2шт.

37

T110252

PLATE

2шт.

38

AT110003

EXHAUST PIPE

1шт.

39

SHIM

NO LONGER AVAILABLE

1шт.
