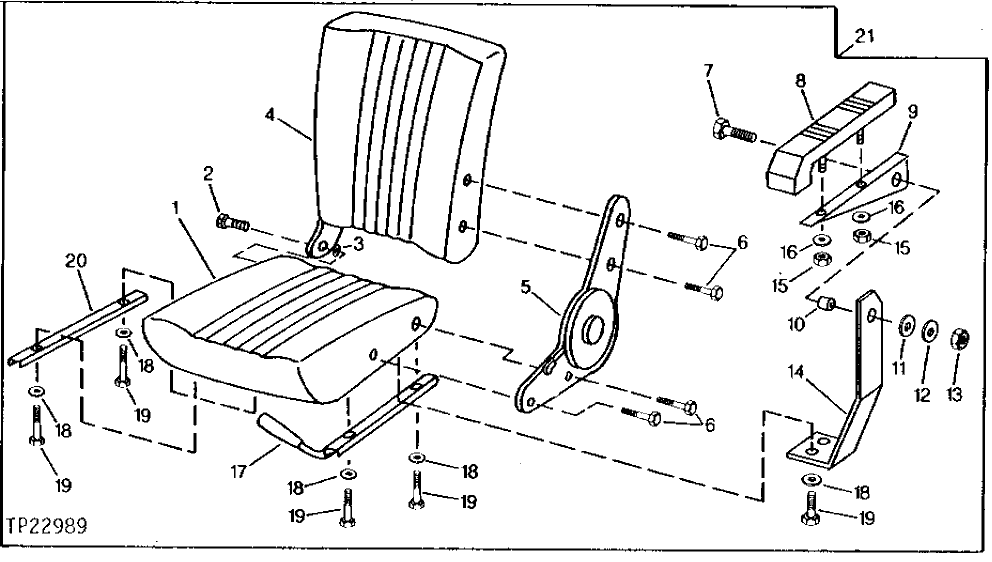

Запчасти John Deere 0 5 - SEAT ASSEMBLY WITH ARM 1821 - OPERATORS STATION 18

1

T114299

CUSHION

(SUB FOR T114188)

1шт.

2

T114195

BOLT

1шт.

3

T114194

SPACER

1шт.

4

T114297

SEAT BACK

(SUB FOR T114187)

1шт.

5

T114184

ADJUSTER

1шт.

6

M800658

BOLT

4шт.

7

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

1шт.

8

T114192

ARMREST

1шт.

9

T114189

SUPPORT

1шт.

10

T114196

SPACER

1шт.

11

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

12

24M7055

WASHER

8.400 X 16 X 1.600 MM (0.331" X 0.630" X 0.063") (SUB FOR CH10526)

1шт.

13

14M7273

NUT

M8

1шт.

14

T114190

MAIN FRAME

1шт.

15

14M7272

NUT

M6

2шт.

16

CH10525

WASHER

2шт.

17

T114298

ADJUSTER

(SUB FOR T114185)

1шт.

18

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

6шт.

19

19M7881

SCREW

M8 X 20

6шт.

20

T114186

ADJUSTER

1шт.

21

AT111877

SEAT

(SUB FOR T114172)

1шт.
