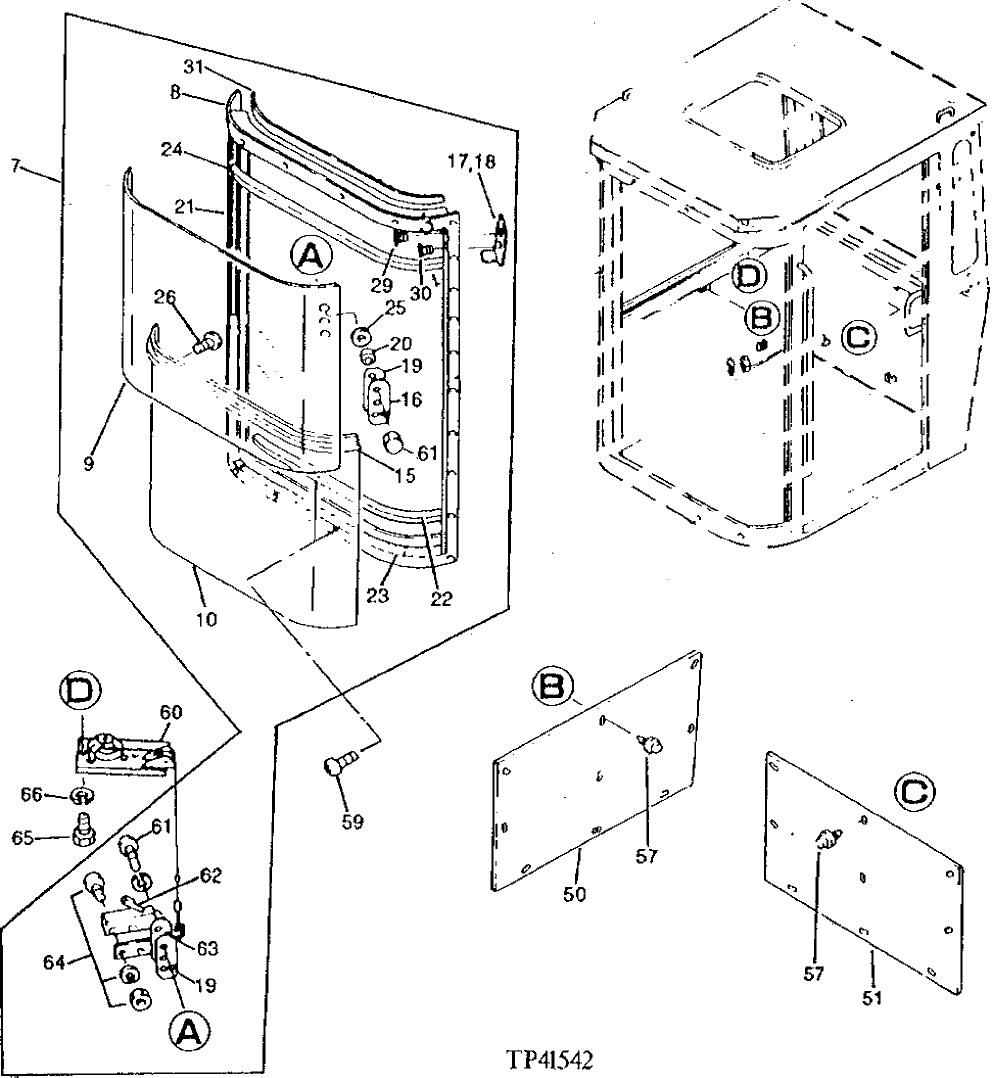

Запчасти John Deere 0 4 - CAB 1810 - OPERATORS STATION 18

7

WINDOW

( AT110054 NO LONGER AVAILABLE)

1шт.

8

T111042

FRAME

WINDOW

1шт.

9

T111043

WINDOWPANE

1шт.

10

T111044

WINDOWPANE

1шт.

15

T111049

COVER

1шт.

16

T111050

PLATE

2шт.

17

T111051

CLAMP

2шт.

18

T111052

CLAMP

2шт.

19

T111053

GASKET

4шт.

20

T111054

SPACER

6шт.

21

T111055

SEAL

SLIDE

2шт.

22

T111056

BRACKET

8шт.

23

T111057

PAD

1шт.

24

T111058

PAD

RUBBER

1шт.

25

T111059

GASKET

6шт.

26

T111060

SCREW

1шт.

29

AT110421

SCREW

1шт.

30

T111061

SCREW

1шт.

31

AT110422

GASKET KIT

1шт.

50

T110259

PANEL

1шт.

51

T110258

PANEL

1шт.

57

T110173

CLIP

18шт.

59

T111321

SCREW

26шт.

60

AT110055

BALANCER

(LEFT)

1шт.

AT110056

BALANCER

(RIGHT)

1шт.

61

AT110420

SCREW

1шт.

62

T111045

LOCK

(LEFT)

1шт.

T111046

LOCK

(RIGHT)

1шт.

63

T111047

BRACKET

(LEFT)

1шт.

T111048

BRACKET

(RIGHT)

1шт.

64

AT110419

CAP SCREW AND NUT

1шт.

65

T111409

BOLT

4шт.

66

12M7064

LOCK WASHER

5 MM

4шт.
