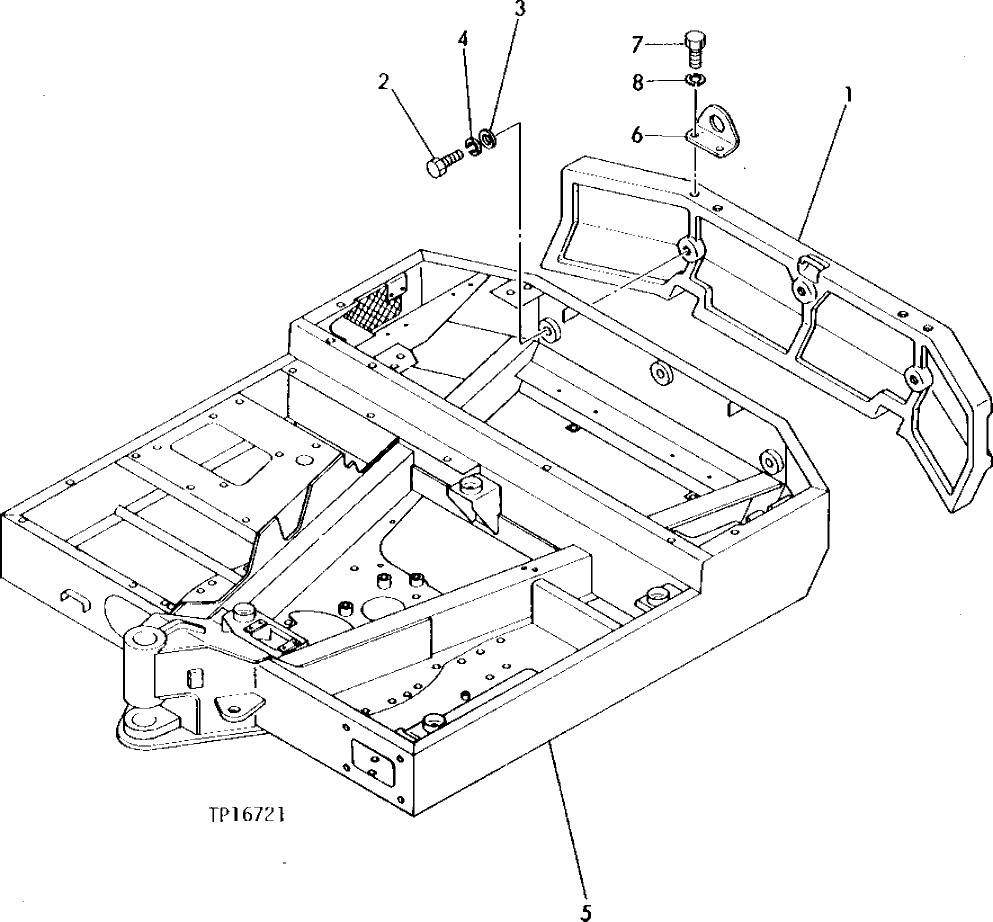

Запчасти John Deere 0 2 - SWING FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

T110843

COUNTERWEIGHT

(USE IF AVAILABLE)

1шт.

2

19M7597

CAP SCREW

M20 X 50, (SUB FOR T110279)

3шт.

3

24M7051

WASHER

21 X 37 X 3 MM (0.827" X 1.457" X 0.118") (SUB FOR CH11472)

3шт.

4

12M7070

LOCK WASHER

20 MM

3шт.

5

FRAME

(SUB FOR T110844) ( AT111867 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

6

T110931

HOOK

2шт.

7

19M7597

CAP SCREW

M20 X 50, (SUB FOR T110932 OR 19M7597)

4шт.

8

12M7070

LOCK WASHER

20 MM

4шт.
