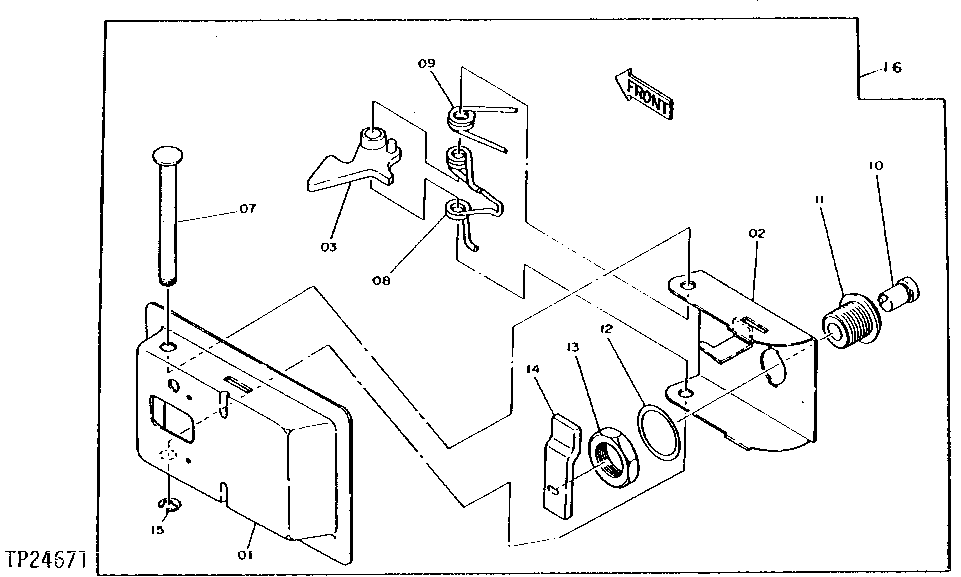

Запчасти John Deere 95D 11 - RIGHT ENGINE COMPARTMENT DOOR LATCH 1910 - SHEET METAL AND STYLING 19

1

8024490

COVER

(SUB FOR TH102241)

1шт.

2

8024464

LATCH

(SUB FOR TH102228)

1шт.

3

LEVER

( TH102229 OR AT173241 NOT AVAILABLE)

1шт.

7

4355972

PIN FASTENER

(SUB FOR TH102230)

1шт.

8

4355973

SPRING

(SUB FOR TH102233, THIS APPLICATION) (SUB FOR AT173242)

1шт.

9

4355975

TORSION SPRING

(SUB FOR TH102234, 4134321)

1шт.

10

4361411

LOCK

(SUB FOR TH110128) (SUB FOR AT206102)

1шт.

4158653

KEY

(SUB FOR TH101605) (NOT ILLUSTRATED)

1шт.

11

4134325

LOCK

(SUB FOR TH102236)

1шт.

12

4355979

RING

(SUB FOR TH102237, 4134322)

1шт.

13

4355980

NUT

(SUB FOR TH102238, 4134323)

1шт.

14

4355981

STRAP

(SUB FOR TH102232, 4134331)

1шт.

15

CH11490

RING

(SUB FOR TH102231)

1шт.

16

LOCK

(SUB AT214010) ( TH110126 NOT AVAILABLE)

1шт.
