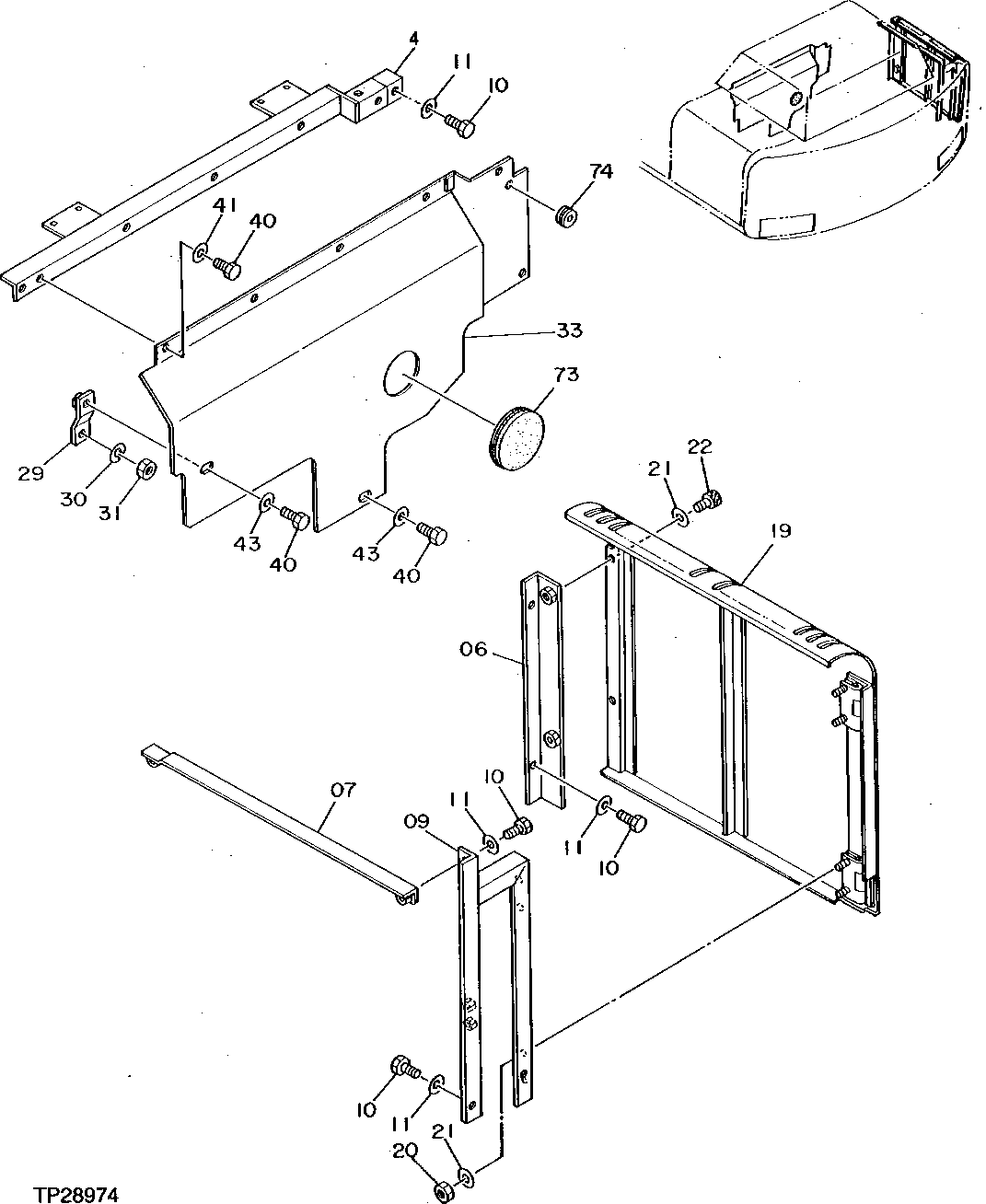

Запчасти John Deere 95D 4 - ENGINE COMPARTMENT DOORS AND HOOD 1910 - SHEET METAL AND STYLING 19

4

8044590

SUPPORT

(SUB FOR AT127141)

1шт.

6

9725238

SUPPORT

(SUB FOR TH109667)

1шт.

7

9725449

SUPPORT

(SUB FOR AT127203)

1шт.

9

8041522

SUPPORT

(SUB FOR AT127204)

1шт.

10

19M7872

CAP SCREW

M12 X 25

8шт.

11

24M7047

WASHER

13 X 24 X 2.500 MM

8шт.

19

7017662

DOOR

(SUB FOR AT126949)

1шт.

20

14M7275

NUT

M12

4шт.

21

24M7047

WASHER

13 X 24 X 2.500 MM

6шт.

22

19M8443

SCREW

M12 X 20

2шт.

29

9732361

BRACKET

(SUB FOR AT127244)

1шт.

30

12H301

LOCK WASHER

1/2"

1шт.

31

14M7275

NUT

M12

1шт.

33

7020821

COVER

(SUB FOR AT126985)

1шт.

40

19M7872

CAP SCREW

M12 X 25

8шт.

41

24M7047

WASHER

13 X 24 X 2.500 MM

6шт.

43

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

2шт.

73

4093813

PLUG

(SUB FOR TH110125)

1шт.

74

94-2805

GROMMET

(SUB FOR TH110221)

1шт.
