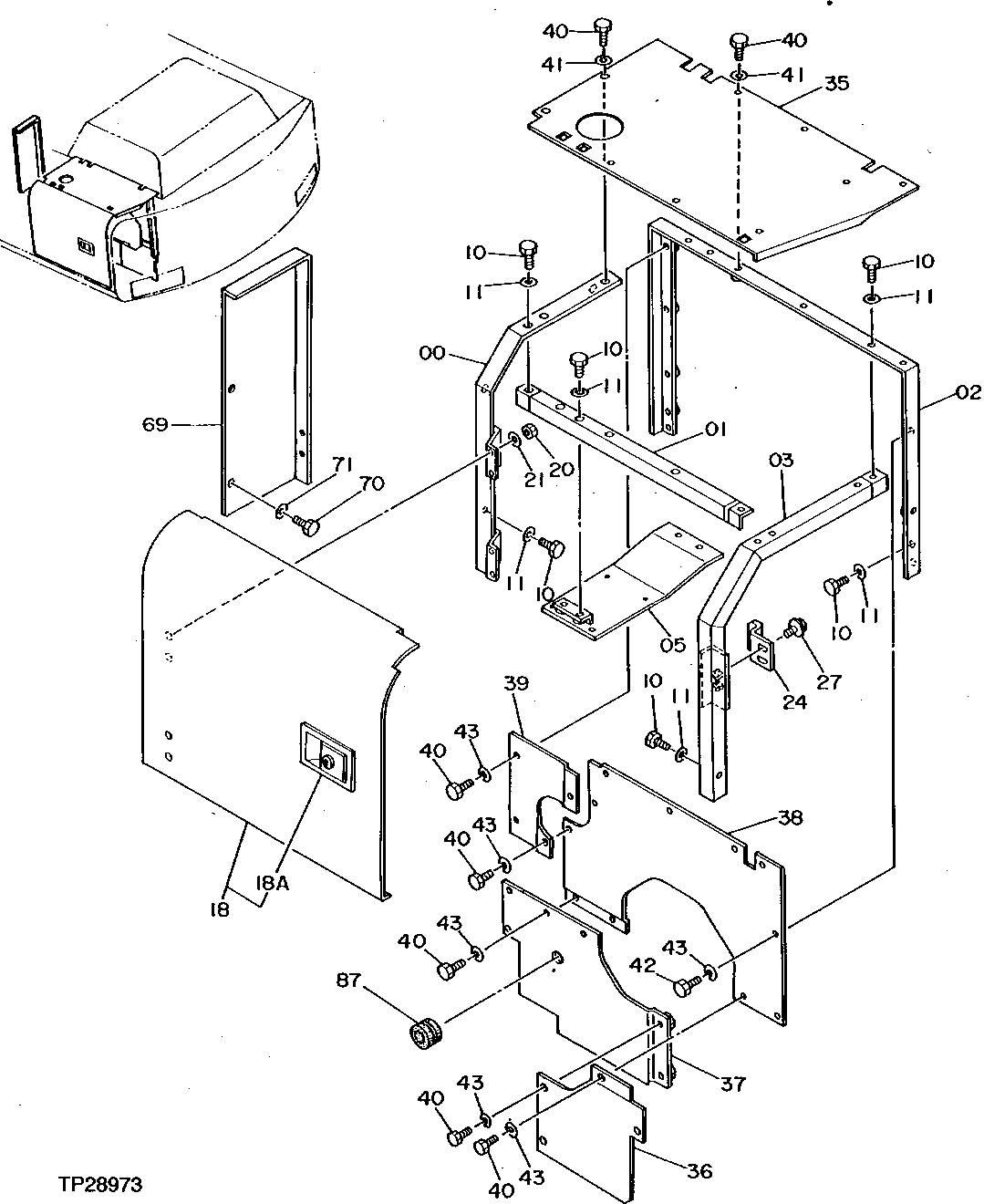

Запчасти John Deere 95D 2 - ENGINE COMPARTMENT DOORS AND HOOD 1910 - SHEET METAL AND STYLING 19

0

8044595

SUPPORT

(SUB FOR AT127145)

1шт.

1

8044592

SUPPORT

(SUB FOR AT127142)

1шт.

2

8044594

SUPPORT

(SUB FOR AT127144)

1шт.

3

8044593

SUPPORT

(SUB FOR AT127143)

1шт.

5

8043732

BRACKET

(SUB FOR AT127118)

1шт.

10

19M7872

CAP SCREW

M12 X 25

13шт.

11

24M7047

WASHER

13 X 24 X 2.500 MM

13шт.

18

7017359

LOCK

(SUB FOR AT126946)

1шт.

18A

4361763

LOCK

(SUB FOR TH110126 OR AT115741) (SUB FOR AT214010)

1шт.

20

14M7275

NUT

M12

4шт.

21

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

24

4188492

STOP

(SUB FOR TH108762)

1шт.

27

19M8011

CAP SCREW

M12 X 30

2шт.

35

3045861

COVER

(SUB FOR AT126182)

1шт.

36

3045862

COVER

(SUB FOR AT126183)

1шт.

37

8044600

COVER

(SUB FOR AT127150)

1шт.

38

8044601

COVER

(SUB FOR AT127151)

1шт.

39

3045863

COVER

(SUB FOR AT126184)

1шт.

40

19M7872

CAP SCREW

M12 X 25

26шт.

41

24M7047

WASHER

13 X 24 X 2.500 MM

9шт.

42

19M7403

CAP SCREW

M12 X 35

1шт.

43

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

18шт.

69

4204023

COVER

(SUB FOR TH108770)

1шт.

70

19M7872

CAP SCREW

M12 X 25

5шт.

71

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

5шт.

87

4146559

GROMMET

(SUB FOR TH108788)

1шт.
