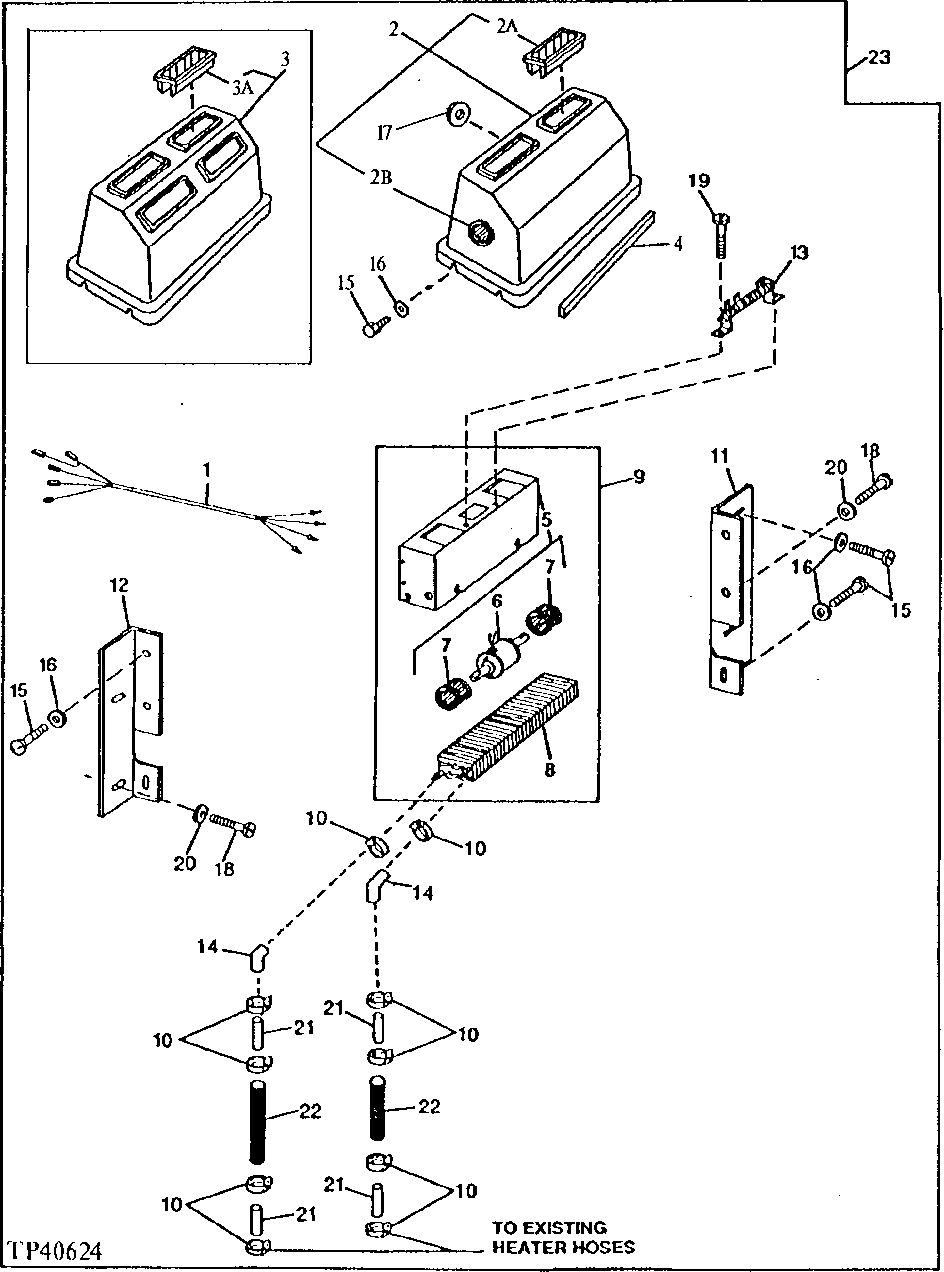

Запчасти John Deere 95D 8 - HEATER 1830 - OPERATORS MANUAL 18

1

AT112079

WIRING HARNESS

(BLOWER MOTOR TO BLOWER SWITCH)

1шт.

R44302

TIE BAND

(KEEP WIRES OUT OF BLOWER BLADES)

1шт.

2

AT132891

COVER

(SUB FOR AT81206 OR AT130120)

1шт.

2A

AT81207

LOUVER

2шт.

2B

AT103802

LOUVER

2шт.

3

COVER

(SUB FOR AT81207) ( AT81206 NO LONGER AVAILABLE)

1шт.

3A

AT130121

LOUVER

(SUB FOR AT81207, ALONG WITH (4) M46081, THIS APPLICATION)

4шт.

4

SEAL

(MAKE FROM T70636 BULK MATERIAL, CUT TO LENGTH)

1шт.

5

AT80368

BLOWER

1шт.

6

AT80369

ELECTRIC MOTOR

1шт.

7

AT66343

BLOWER FAN

(SET OF TWO) BLOWER

1шт.

8

AT56095

CORE

1шт.

9

HEATER

( AT80367 NO LONGER AVAILABLE)

1шт.

10

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

10шт.

11

T80640

BRACKET

(USE IF AVAILABLE)

1шт.

12

T80639

BRACKET

(TUBE SIDE OF HEATER) (USE IF AVAILABLE)

1шт.

13

AT56762

RESISTOR

1шт.

14

T22942

HOSE

2шт.

15

37H84

SCREW

8шт.

16

24H1821

WASHER

9/32" X 47/64" X 1/16"

12шт.

17

B30667

GROMMET

1шт.

18

19H1948

CAP SCREW

1/4" X 3/4"

4шт.

19

37H196

SCREW

2шт.

20

24H1287

WASHER

9/32" X 5/8" X 0.065"

4шт.

21

N155214

HOSE FITTING

4шт.

22

HOSE

(SUB FOR T78162) (MAKE FROM TY22328 BULK MATERIAL, CUT TO LENGTH)

2шт.

23

HEATER

( TH108182 NO LONGER AVAILABLE) (REPLACEMENT FIELD KIT AVAILABLE FROM "RED DOT")

1шт.
