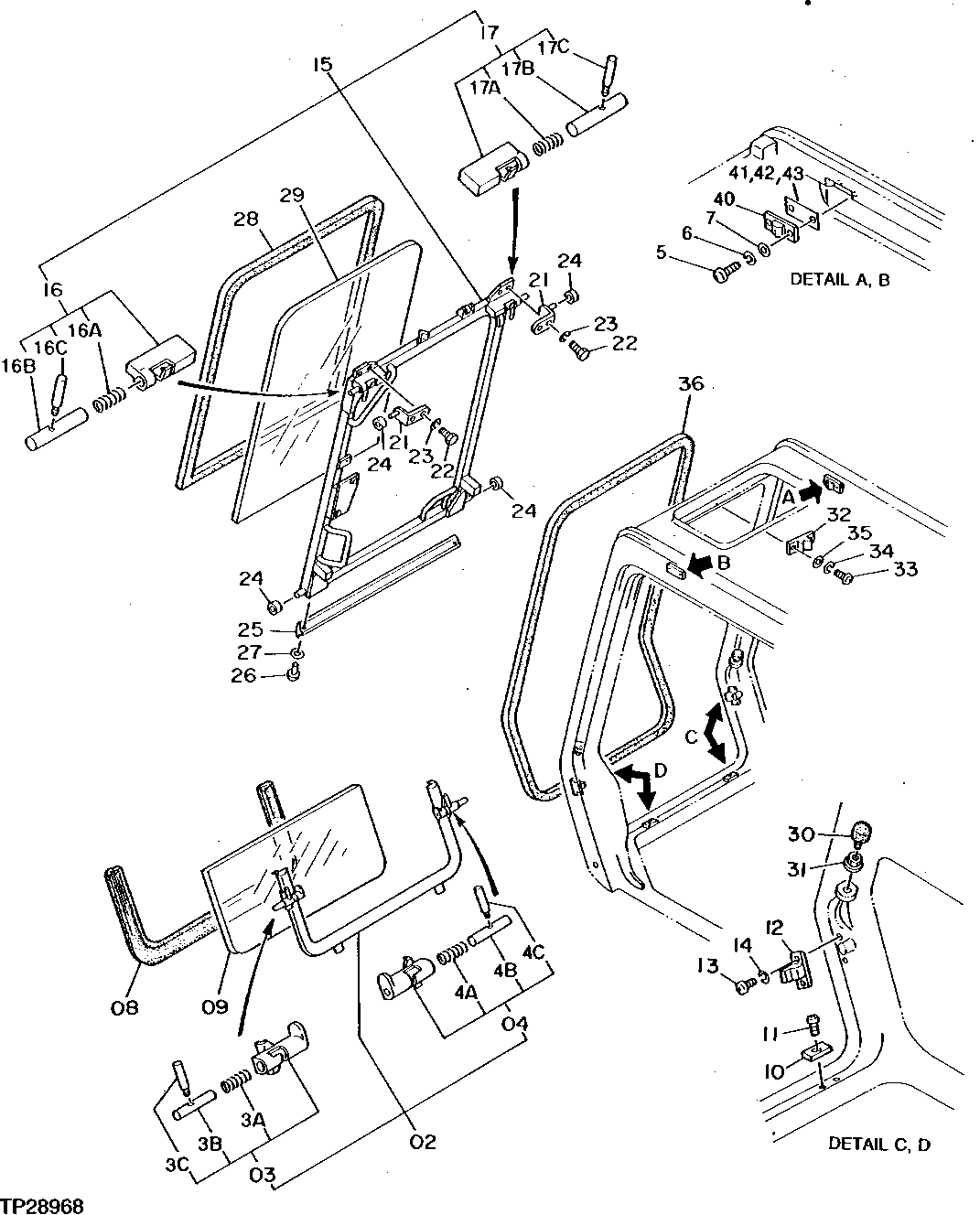

Запчасти John Deere 95D 4 - CAB 1810 - OPERATORS MANUAL 18

2

4204543

FRAME

(SUB FOR TH108623)

1шт.

3

LOCK

(LEFT) (ORDER COMPONENTS)

1шт.

3A

4204546

SPRING

(SUB FOR TH108625)

1шт.

3B

4204547

PIN

(SUB FOR TH108626)

1шт.

3C

4204548

LEVER

(SUB FOR TH108627)

1шт.

4

LOCK

(RIGHT) (ORDER COMPONENTS)

1шт.

4A

4204546

SPRING

(SUB FOR TH108625)

1шт.

4B

4204547

PIN

(SUB FOR TH108626)

1шт.

4C

4204548

LEVER

(SUB FOR TH108627)

1шт.

5

21M7192

SCREW

M8 X 16

4шт.

6

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

7

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

8

4204549

ISOLATOR

(SUB FOR TH108629)

1шт.

9

TH108630

WINDOWPANE

1шт.

10

4204551

BUSHING

(SUB FOR TH108631)

2шт.

11

21M7420

SCREW

M6 X 16

2шт.

12

4204552

STOP

(SUB FOR TH108632)

2шт.

13

21M7246

SCREW

M6 X 16

4шт.

14

12M7006

LOCK WASHER

6 MM

4шт.

15

4213186

FRAME

(SUB FOR AT126515)

1шт.

16

LOCK

(LEFT) (ORDER COMPONENTS)

1шт.

16A

494918

SPRING

(SUB FOR TH106783)

1шт.

16B

4204556

PIN

(SUB FOR TH108635)

1шт.

16C

4204548

LEVER

(SUB FOR TH108627)

1шт.

17

LOCK

(RIGHT) (ORDER COMPONENTS)

1шт.

17A

494918

SPRING

(SUB FOR TH106783)

1шт.

17B

4204556

PIN

(SUB FOR TH108635)

1шт.

17C

4204548

LEVER

(SUB FOR TH108627)

1шт.

21

4204557

BRACKET

(SUB FOR TH108637)

2шт.

22

19M7881

SCREW

M8 X 20

4шт.

23

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

24

4204558

ROLLER

(SUB FOR TH108638)

4шт.

25

4204559

ISOLATOR

(SUB FOR TH108639)

1шт.

26

37M7095

SCREW

4шт.

27

24M7029

SHIM

0.500 MM

4шт.

28

4204560

ISOLATOR

(SUB FOR TH108640)

1шт.

29

TH108641

WINDOWPANE

1шт.

30

4294508

BUMPER

(SUB FOR TH108642) (SUB FOR AT201032)

2шт.

31

14M7274

NUT

M10

2шт.

32

4204564

STOP

(SUB FOR TH108644)

1шт.

33

21M7192

SCREW

M8 X 16

2шт.

34

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

35

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

36

4204565

ISOLATOR

(SUB FOR TH108645)

1шт.

40

4204595

SHIM

(SUB FOR TH108678)

2шт.

41

SHIM

(K) ( TH108679 NO LONGER AVAILABLE - SUB KIT)

1шт.

42

SHIM

(K) ( TH108680 NO LONGER AVAILABLE - SUB KIT)

1шт.

43

SHIM

(K) ( TH108681 NO LONGER AVAILABLE - SUB KIT)

1шт.

45

4232050

CAB

(SUB FOR AT126810) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES)

1шт.
