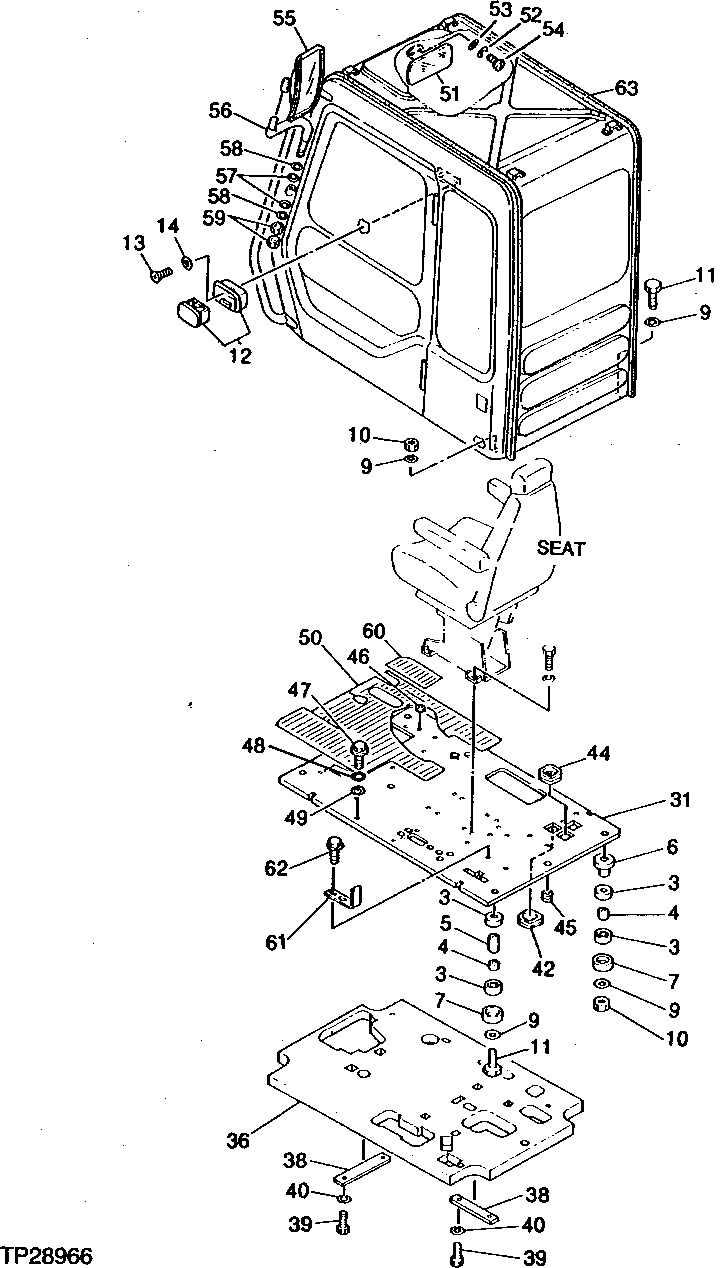

Запчасти John Deere 95D 2 - CAB GROUP 1810 - OPERATORS MANUAL 18

3

4200084

ISOLATOR

(SUB FOR TH108603)

8шт.

4

4200085

ISOLATOR

(SUB FOR TH108604)

4шт.

5

4200086

SPACER

(SUB FOR TH108605)

3шт.

6

9727615

STOP

(SUB FOR TH108606)

1шт.

7

4185675

STOP

(SUB FOR TH108607)

4шт.

9

4114405

WASHER

(SUB FOR TH101105)

8шт.

10

14M7328

LOCK NUT

M16

4шт.

11

4203189

BOLT

(SUB FOR TH108608)

4шт.

12

4298985

ASHTRAY

(SUB FOR TH101096)

1шт.

13

21M7278

SCREW

M5 X 10

2шт.

14

24M7027

WASHER

5.300 X 10 X 1 MM

2шт.

31

6008736

PLATE

(SUB FOR AT126933)

1шт.

36

2025435

PAD

(SUB FOR AT126085)

1шт.

38

4204646

PLATE

(SUB FOR TH108612)

3шт.

39

19M7402

CAP SCREW

M10 X 25

6шт.

40

12M7066

LOCK WASHER

10 MM

6шт.

42

4205082

GROMMET

(SUB FOR TH108615)

1шт.

44

4205080

GROMMET

(SUB FOR TH108613)

1шт.

45

4205084

GROMMET

(SUB FOR TH108616)

1шт.

46

4196453

GROMMET

(SUB FOR AT126315)

1шт.

47

19M7662

CAP SCREW

M10 X 30

2шт.

48

12M7066

LOCK WASHER

10 MM

2шт.

49

4114402

WASHER

(SUB FOR TH102181)

2шт.

50

1012453

MAT

(SUB FOR AT126067)

1шт.

51

965452

REAR VIEW MIRROR

(SUB FOR TH104114)

1шт.

52

12M7006

LOCK WASHER

6 MM

2шт.

53

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

54

21M7246

SCREW

M6 X 16

2шт.

55

REAR VIEW MIRROR

( TH104119 NO LONGER AVAILABLE) (SUB AT185207 MIRROR AND AT186649 ARM)

1шт.

4420724

REAR VIEW MIRROR

(SUB FOR AT185207)

1шт.

56

3039640

SUPPORT

(SUB FOR AT126149)

1шт.

57

4172172

WASHER

(SUB FOR TH104118)

2шт.

58

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

59

14M7275

NUT

M12

2шт.

60

4217423

MAT

(SUB FOR AT126687)

1шт.

61

4215494

ANGLE

(SUB FOR AT126651)

1шт.

62

19M7402

CAP SCREW

M10 X 25

2шт.

63

4232050

CAB

(SUB FOR AT126810) (FOR BREAKDOWN SEE FOLLOWING PAGES)

1шт.
