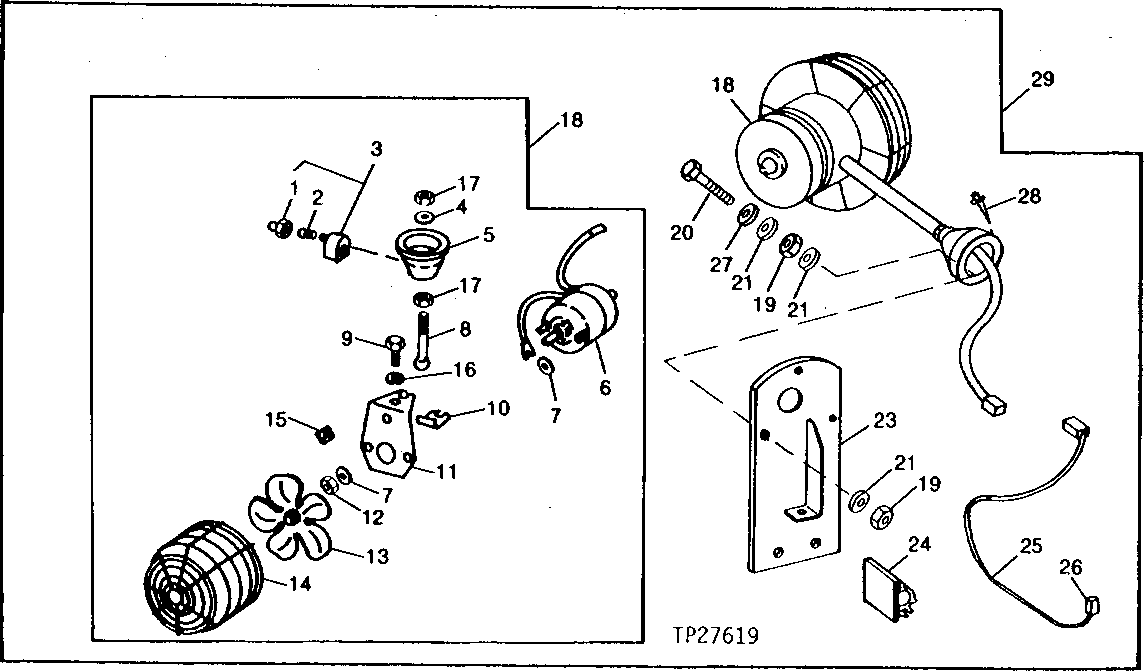

Запчасти John Deere 95D 1 - CAB CIRCULATING FAN INSTALLATION 1810 - OPERATORS MANUAL 18

1

SWITCH

(SUB AU42189 OR AT41571)

1шт.

2

AT41570

BULB

1шт.

3

AU42189

SWITCH

(SUB FOR AT41571)

1шт.

4

12H310

LOCK WASHER

3/8"

1шт.

5

BASE

( U46504 NO LONGER AVAILABLE)

1шт.

6

MOTOR

(SUB AT41568) ( AT41572 NO LONGER AVAILABLE)

1шт.

7

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

8

ROD

( U46503 NO LONGER AVAILABLE)

1шт.

9

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

10

CLAMP

( U46501 NO LONGER AVAILABLE)

1шт.

11

CLAMP

( U46502 NO LONGER AVAILABLE)

1шт.

12

14H605

NUT

0.164"

2шт.

13

AU43849

FAN BLADE

1шт.

14

AT55787

GUARD

1шт.

15

U46505

CLIP

6шт.

16

12M7032

LOCK WASHER

8.400 MM, (SUB FOR 12H291)

1шт.

17

14H732

NUT

2шт.

18

AT41568

FAN

1шт.

19

14H605

NUT

0.164", WITH WASHER

3шт.

20

37H95

SCREW

3шт.

21

12M7084

LOCK WASHER

4.300 MM, (USE THREE WITH 37H95 AND SIX WITH 21H1315)

9шт.

23

AT106904

BRACKET

1шт.

24

AT54892

CLIP

1шт.

25

T43753

WIRING LEAD

1шт.

26

TERMINAL

NO LONGER REQUIRED

1шт.

27

12H290

WASHER

0.164"

3шт.

28

H85233

RIVET

FAN BASE TO CAB SIDE

3шт.

29

KIT

( AT106902 DEFROSTER FAN KIT NO LONGER AVAILABLE FOR SERVICE)

1шт.
