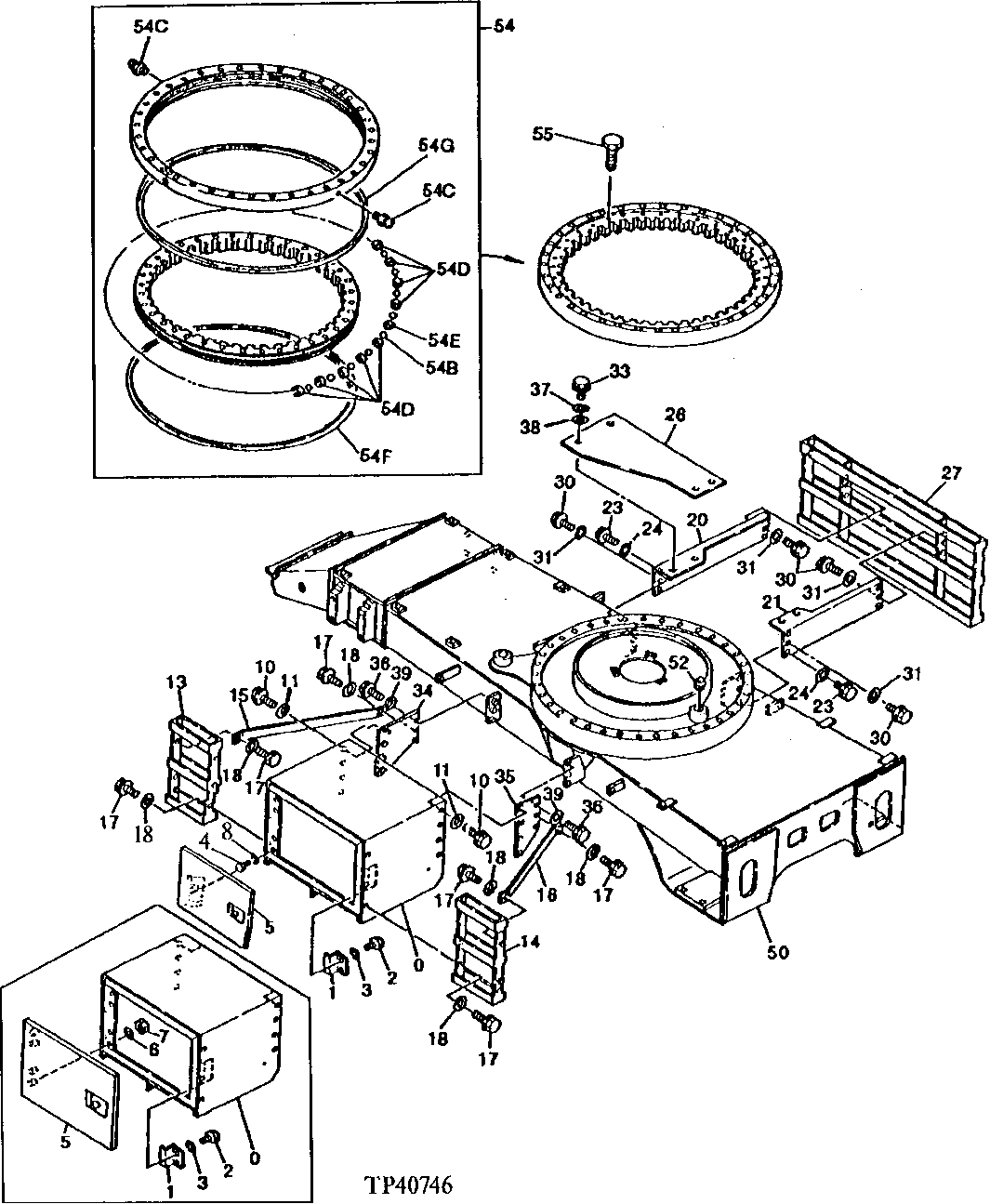

Запчасти John Deere 95D 4 - CHASSIS AND SWING BEARING 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17
№
Артикул
Название
Примечание
Количество
0
TOOLBOX
( AT127907 NO LONGER AVAILABLE)
1шт.
1
4209836
STOP
(SUB FOR AT126491)
1шт.
2
19M8011
CAP SCREW
M12 X 30
2шт.
3
12H301
LOCK WASHER
1/2"
2шт.
5
7019505
COVER
(SUB FOR AT127908)
1шт.
6
12H301
LOCK WASHER
1/2"
4шт.
7
14M7275
NUT
M12
4шт.
8
24M7028
WASHER
10.500 X 20 X 2 MM
4шт.
10
19M8011
CAP SCREW
M12 X 30
8шт.
11
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
8шт.
13
8045014
STEP
(SUB FOR AT127153)
1шт.
14
8045014
STEP
(SUB FOR AT134287) (SUB FOR AT127153)
1шт.
15
4209880
SUPPORT
(SUB FOR AT126493)
1шт.
16
4209879
SUPPORT
(SUB FOR AT126492)
1шт.
17
19M8011
CAP SCREW
M12 X 30
10шт.
18
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
10шт.
20
9730671
BRACKET
(SUB FOR AT127236)
1шт.
21
9730672
BRACKET
(SUB FOR AT127237)
1шт.
23
19M8011
CAP SCREW
M12 X 30
4шт.
24
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
4шт.
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
4шт.
26
4226224
PLATE
(SUB FOR AT126791)
1шт.
27
7021006
STEP
(SUB FOR AT126988)
1шт.
30
19M8011
CAP SCREW
M12 X 30
8шт.
31
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
8шт.
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
8шт.
33
19M8011
CAP SCREW
M12 X 30
4шт.
34
9728669
BRACKET
(SUB FOR AT127220)
1шт.
35
9728670
BRACKET
(SUB FOR AT127221)
1шт.
36
19M8011
CAP SCREW
M12 X 30
4шт.
37
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
4шт.
38
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
4шт.
39
12M7058
LOCK WASHER
12 MM, (SUB FOR 12M7067)
4шт.
50
AT126930
FRAME
CONVENIENCE ASSEMBLY
1шт.
52
J75214
FITTING PLUG
(SUB FOR TH105686)
1шт.
54
9098995EX
ROLLER
(USE TH108810 IF AVAILABLE) (SUB FOR TH108810) (SUB FOR AT190766)
1шт.
54B
4428919
BALL
(SUB FOR AT182113 AND TH104229 AND 4355728)
ARшт.
54C
TH100074
LUBRICATION FITTING
2шт.
54D
4127708
SPACER
(SUB FOR TH104232)
99шт.
54E
4127707
SPACER
(SUB FOR TH104233)
10шт.
54F
T203958
SEAL
(SUB FOR T191211, TH108166, AT131484 AND AT131732) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)
1шт.
TY21517
ADHESIVE
(NOT ILLUSTRATED)
ARшт.
AT66866
FLUID
(NOT ILLUSTRATED)
ARшт.
54G
T203958
SEAL
(SUB FOR T191211, TH108166, AT131484 AND AT131732) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)
1шт.
TY21517
ADHESIVE
(NOT ILLUSTRATED)
ARшт.
AT66866
FLUID
(NOT ILLUSTRATED)
ARшт.
Выбрано товаров: 48
