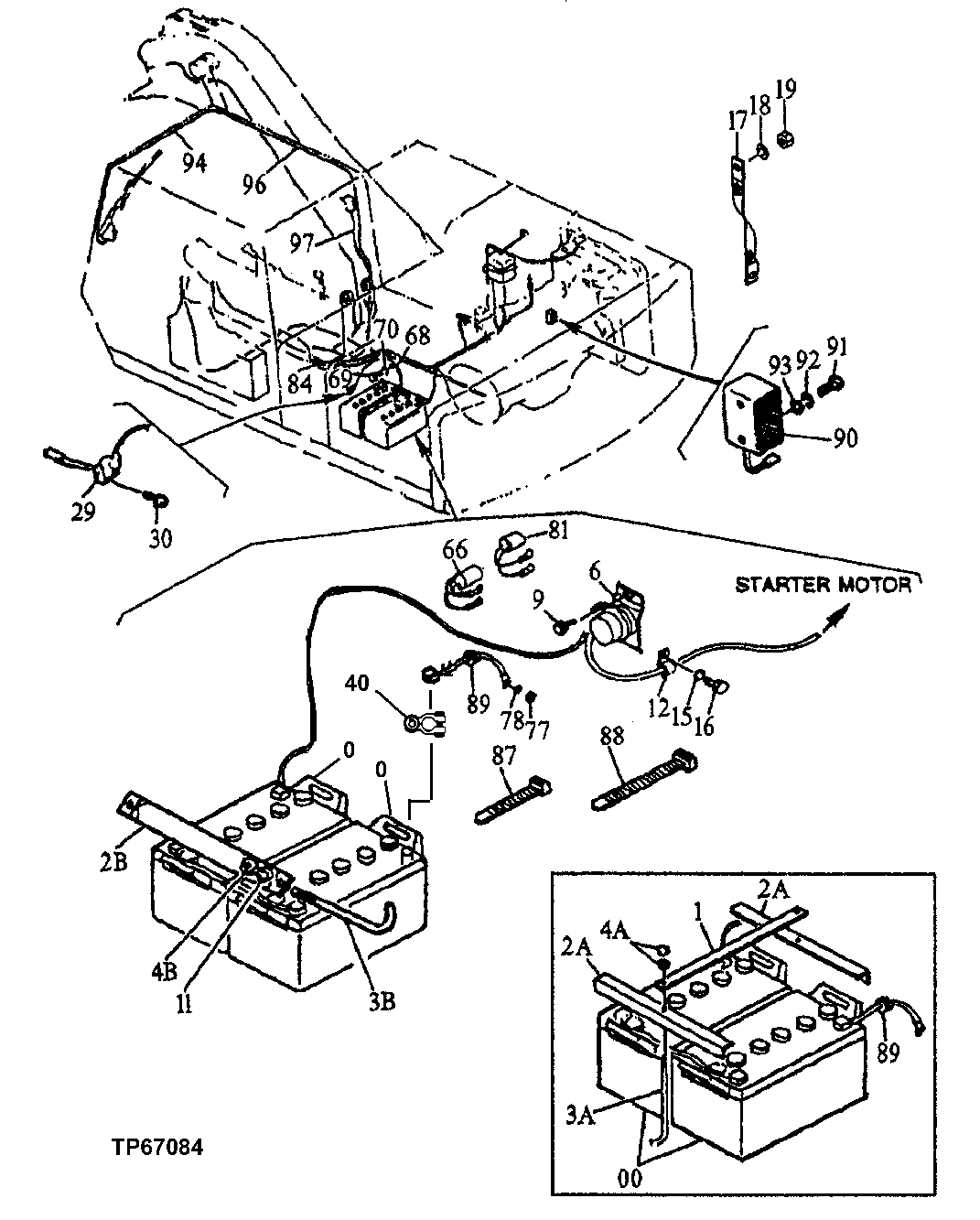

Запчасти John Deere 95D 12 - ELECTRIC PARTS 1674 - ELECTRICAL SYSTEM 16

0

TY6106

DRY CHARGED BATTERY

(USE IF AVAILABLE)

2шт.

TY21741

DRY CHARGED BATTERY

(SUB FOR TY6106)

2шт.

1

STRAP

(SUB (2) TY21741, (2) T79470, (2) T79471, (4) 14M7298 AND (4) 24M7207) ( AT126235 NO LONGER AVAILABLE)

1шт.

2A

4131299

ANGLE

(SUB FOR TH100525) (USE WITH ORIGINAL BATTERY)

2шт.

2B

T79470

ANGLE

(USE WITH REPLACEMENT BATTERY)

2шт.

3A

4177557

BOLT

(SUB FOR TH108578) (USE WITH ORIGINAL BATTERY)

2шт.

3B

T79471

HOOK BOLT

(USE WITH REPLACEMENT BATTERY)

2шт.

4A

14M7274

NUT

M10, (USE WITH ORIGINAL BATTERY)

4шт.

4B

14M7298

FLANGE NUT

M8, (USE WITH REPLACEMENT BATTERY)

4шт.

6

4031771

RELAY

(SUB FOR TH104069) (BATTERY)

1шт.

9

19M7407

CAP SCREW

M8 X 25

2шт.

11

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207)

4шт.

12

T24432

CLAMP

(SUB FOR TH108595)

4шт.

15

12M7066

LOCK WASHER

10 MM

4шт.

16

19M8324

CAP SCREW

M10 X 16

4шт.

17

AT47069

GROUND CABLE

(SUB FOR AT154993) STRAP (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.

18

12M7066

LOCK WASHER

10 MM

1шт.

19

14M7274

NUT

M10

1шт.

29

4151888

SWITCH

(SUB FOR TH102170) (HYDRAULIC OIL LEVEL)

1шт.

30

21M7265

SCREW

M5 X 12

3шт.

40

AT219485

CLAMP

(BATTERY TERMINAL CLAMPS)

4шт.

66

4191038

ELECTRICAL CONNECTOR ASSY

(SUB FOR TH107964) (FUSIBLE LINK)

1шт.

68

T38377

CLAMP

1шт.

69

19M8324

CAP SCREW

M10 X 16

1шт.

70

12M7066

LOCK WASHER

10 MM

1шт.

77

14M7274

NUT

M10

4шт.

78

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

81

4240648

WIRING LEAD

(SUB FOR AT130831)

1шт.

84

4240381

WIRING HARNESS

(ALSO ORDER AT130947) (SUB FOR AT126857)

1шт.

87

H77698

TIE BAND

5шт.

88

H77698

TIE BAND

(SUB FOR M88199)

20шт.

89

4146559

GROMMET

(SUB FOR TH108788)

1шт.

90

AT120884

TRAVEL WARNING ALARM

(REVERSE WARNING)

1шт.

91

19M8539

CAP SCREW

M8 X 90

2шт.

92

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

93

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

94

4229055

WIRING HARNESS

(SUB FOR TH111933) (FUEL SENDER)

1шт.

96

4229056

WIRING HARNESS

(SUB FOR TH111934) (WIPER)

1шт.

97

4229057

WIRING HARNESS

(SUB FOR TH111935) (DOME LIGHT)

1шт.
