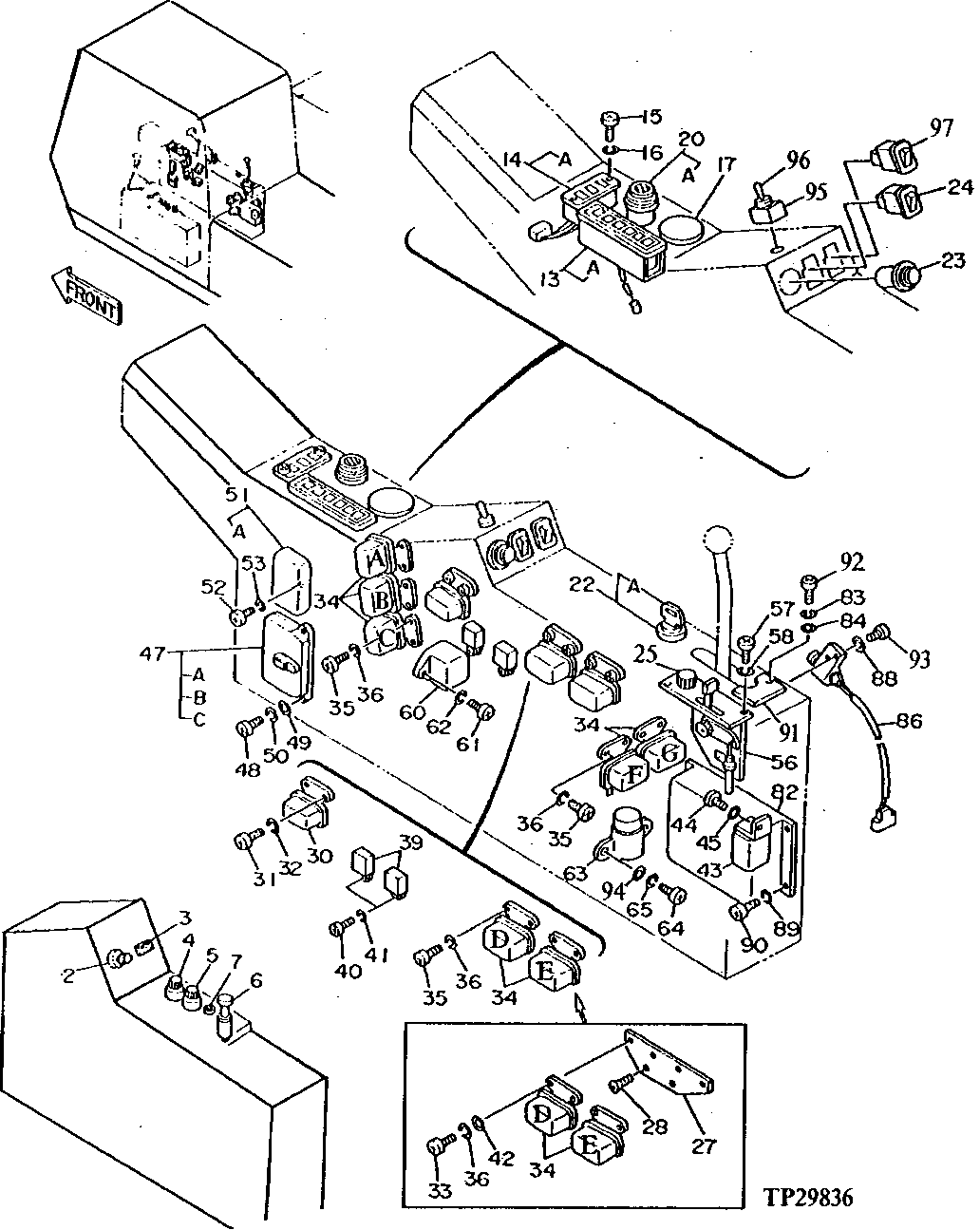

Запчасти John Deere 95D 2 - CAB ELECTRICAL PARTS 1674 - ELECTRICAL SYSTEM 16

2

4201802

SWITCH

(SUB FOR TH108555) (DIG MODE)

1шт.

4268742

KNOB

(SUB FOR AT130798)

1шт.

3

4187089

SWITCH

(SUB FOR TH108554) (AUTO IDLE)

1шт.

4

4209357

SWITCH

(SUB FOR AT126469) (BOOM WORK LIGHT)

1шт.

5

4196177

SWITCH

(SUB FOR AT126308) (PARKING LIGHT)

1шт.

6

AU42809

RESISTOR

(12 VOLT)

1шт.

AR60937

ELECTRICAL LIGHTER

(12 VOLT)

1шт.

AT78633

HOUSING

(12 VOLT)

1шт.

AT78634

WIRING LEAD

(12 VOLT)

1шт.

( 4357862 NO LONGER AVAILABLE) (SUB FOR AT190190) (24 VOLT)

1шт.

7

4146754

BUMPER

(SUB FOR TH100572)

1шт.

13

4240763

INSTRUMENT PANEL W/SUPPORT

(SUB FOR AT126859) (INDICATOR)

1шт.

13A

57M7169

BULB

(SUB FOR AT128400)

6шт.

14

PLATE

(SUB FOR AT126295) (TURN AND BRIGHTS INDICATORS) ( 4194571 NLA)

1шт.

14A

57M7169

BULB

(SUB FOR AT128400)

3шт.

15

21M7278

SCREW

M5 X 10

2шт.

16

12M7064

LOCK WASHER

5 MM

2шт.

17

4143612

GROMMET

(SUB FOR AT126207)

1шт.

20

4254220

METER

(SUB FOR AT126332) (AIR PRESSURE GAUGE)

1шт.

20A

4260073

BULB

(SUB FOR AT128401)

1шт.

22

4237505

SWITCH

(SUB FOR TH108551 OR 4186744) (IGNITION)

1шт.

22A

AT194969

KEY

(SUB FOR TH108552 AND AT147803) (IGNITION)

1шт.

23

4155755

SWITCH

(SUB FOR TH101582) (START AID)

1шт.

24

4209356

SWITCH

(SUB FOR AT126468) (AXLE LOCK)

1шт.

25

4184397

SWITCH

(SUB FOR TH108557) (BLOWER)

1шт.

4268750

KNOB

(SUB FOR AT130800)

1шт.

27

4250479

BRACKET

(SUB FOR AT130802)

1шт.

28

M470513

CAP SCREW

(SUB FOR TH101156)

2шт.

30

4505392

RELAY

(SUB FOR TH100585) (HORN)

1шт.

31

21M7288

SCREW

M6 X 10

2шт.

32

12M7006

LOCK WASHER

6 MM

2шт.

33

21M7282

SCREW

M5 X 8, (SUB FOR 21M7273)

4шт.

34A

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) PARK LIGHT ( 4149142 NLA)

1шт.

4714037

RELAY

PARK LIGHT

1шт.

4714179

WIRING HARNESS

1шт.

34B

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) BRAKE LIGHT ( 4149142 NLA)

1шт.

4714037

RELAY

BRAKE LIGHT

1шт.

4714179

WIRING HARNESS

1шт.

34C

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) AXLE LOCK ( 4149142 NLA)

1шт.

4714037

RELAY

AXLE LOCK

1шт.

4714179

WIRING HARNESS

1шт.

34D

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) TRAVEL ALARM ( 4149142 NLA)

1шт.

4714037

RELAY

TRAVEL ALARM

1шт.

4714179

WIRING HARNESS

1шт.

34E

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) NEUTRAL PARK ( 4149142 NLA)

1шт.

4714037

RELAY

NEUTRAL PARK

1шт.

4714179

WIRING HARNESS

1шт.

34F

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) PARK BRAKE ( 4149142 NLA)

1шт.

4714037

RELAY

PARK BRAKE

1шт.

4714179

WIRING HARNESS

1шт.

34G

RELAY

(SUB FOR TH104050) (SUB 4714037) (ALSO ORDER 4714179) PARK BRAKE ( 4149142 NLA)

1шт.

4714037

RELAY

PARK BRAKE

1шт.

4714179

WIRING HARNESS

1шт.

35

21M7278

SCREW

M5 X 10

14шт.

36

12M7064

LOCK WASHER

5 MM

14шт.

39

4413974

FLASHER

(SUB FOR TH111887 OR 4215003) (ALSO ORDER 4645487)

2шт.

40

21M7288

SCREW

M6 X 10

2шт.

41

12M7006

LOCK WASHER

6 MM

2шт.

42

24M7027

WASHER

5.300 X 10 X 1 MM

4шт.

43

4205029

RELAY

(SUB FOR TH108573)

1шт.

44

21M7288

SCREW

M6 X 10

1шт.

45

12M7006

LOCK WASHER

6 MM

1шт.

47

4233131

FUSE BOX

(SUB FOR AT126821)

1шт.

47A

AT58169

FUSE

(SUB FOR TH108561) (1 AMP) (BOX OF FIVE) (CLOCK AND RADIO)

2шт.

47B

AT28077

FUSE

(SUB FOR TH108562) (10 AMP) (DOME LIGHT, HEATER-AIR CONDITIONER, WINDSHIELD WIPER, HORN, O/R BLADE, BRAKE LIGHTS, CONTROLLER, MONITOR)

8шт.

47C

AT39227

FUSE

(SUB FOR TH104047) (15 AMP) (F/R SWITCH, LIGHTER, START AID, OUTSIDE LIGHTS)

4шт.

48

21M7277

SCREW

M6 X 25

2шт.

49

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

50

12M7006

LOCK WASHER

6 MM

2шт.

51

4233132

FUSE BOX

(SUB FOR AT126822)

1шт.

51A

AT39227

FUSE

(15-AMP) (SUB FOR TH104047)

6шт.

52

21M7278

SCREW

M5 X 10

2шт.

53

12M7064

LOCK WASHER

5 MM

2шт.

56

4456566

CONTROL

HEATER, (SUB FOR 4189169, ALSO ORDER 4248908)

1шт.

4248908

CABLE

(SUB FOR AT194604)

1шт.

57

21M7396

SCREW

M4 X 10

4шт.

58

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

4шт.

60

970879

AUDIBLE WARNING ALARM

(SUB FOR TH104052) (ENGINE STOP)

1шт.

61

21M7250

SCREW

M4 X 12

2шт.

62

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

63

AT85258

RELAY

(STARTER) (SUB AT145341, ALONG WITH (2) T28583 CONNECTORS)

1шт.

AT145341

RELAY

(STARTER)

1шт.

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS)

2шт.

64

21M7271

SCREW

M5 X 16

2шт.

65

12M7064

LOCK WASHER

5 MM

2шт.

82

9090925

CIRCUIT BOX

(SUB FOR AT127177) (SUB FOR AT134322) (CONTROLLER)

1шт.

83

12M7006

LOCK WASHER

6 MM

2шт.

84

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

86

4211194

SWITCH

(SUB FOR AT126512) (FAST IDLE)

1шт.

88

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

89

12M7006

LOCK WASHER

6 MM

4шт.

90

21M7288

SCREW

M6 X 10

4шт.

91

9729659

BRACKET

(SUB FOR AT127231)

1шт.

92

21M7246

SCREW

M6 X 16

2шт.

93

21M7250

SCREW

M4 X 12

2шт.

94

24M7027

WASHER

5.300 X 10 X 1 MM

2шт.

95

AT50820

TOGGLE/ROCKER SWITCH

(TRANSPORT OR WORK STEERING)

1шт.

96

4042098

CAP

(SUB FOR TH103939)

1шт.

97

4209355

SWITCH

(SUB FOR AT134057) (BLADE OR STABILIZER)

1шт.
