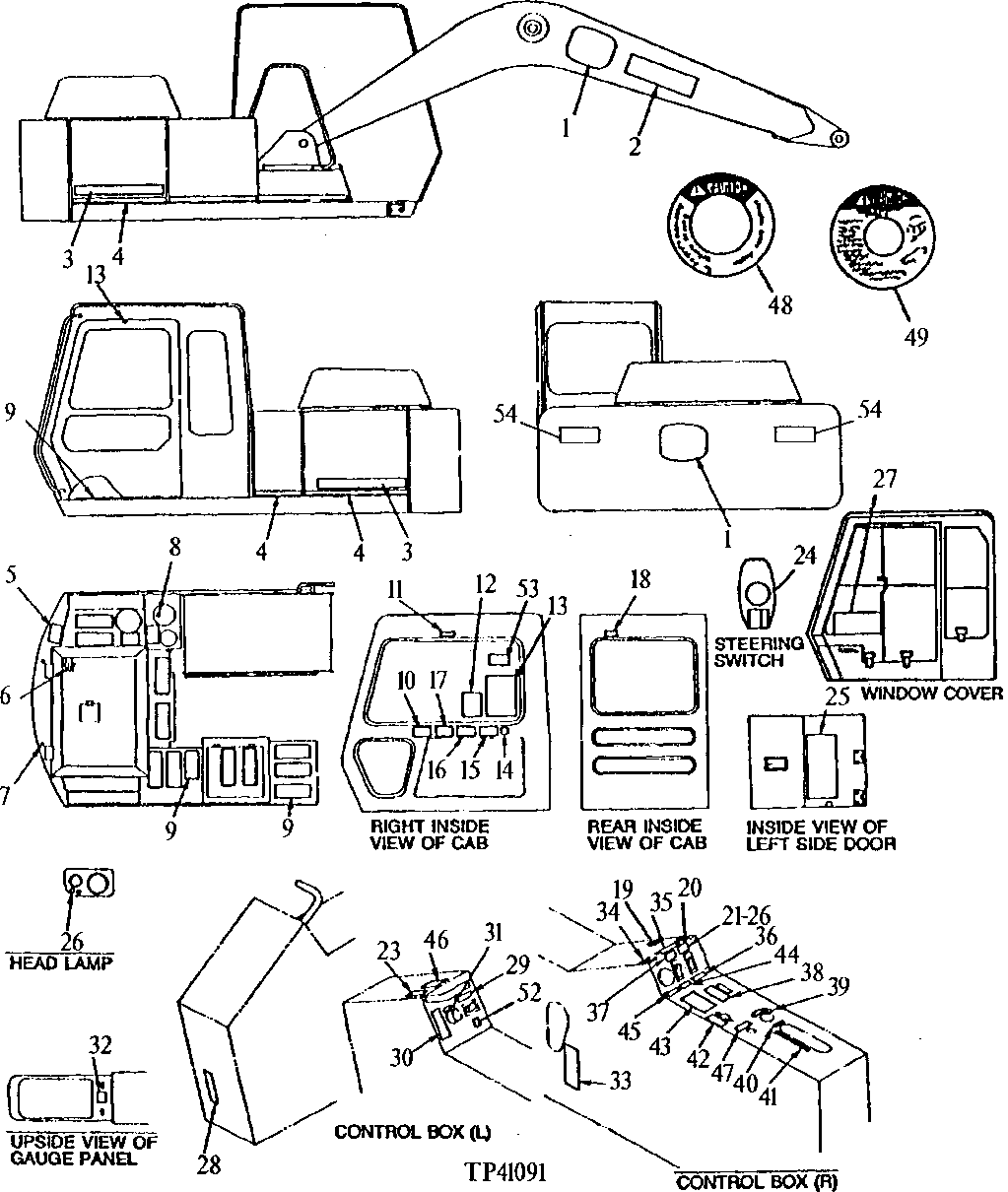

Запчасти John Deere 95D 2 - LABELS AND DECALS 1320 - MISCELLANEOUS VEHICLE 13

1

JD5626

LABEL

(K) (LEAPING DEERE) (SIDES AND REAR OF UNIT)

3шт.

2

1014134

LABEL

(K) (SUB FOR T121697) (MODEL NUMBER)

2шт.

3

JD5613

LABEL

(K) (JOHN DEERE)

2шт.

4

T107620

LABEL

(K) (BLACK STRIPE)

1шт.

5

4121128

MAT

(K) (SUB FOR TH106654)

3шт.

6

T146102

LABEL

(K) (SUB FOR T146102 OR T146102) (WARNING - JUMP START)

1шт.

7

T119535

LABEL

(K) (SUB FOR TH101411) (BUMPER PLATE)

2шт.

8

P63448

LABEL

(K) (SUB FOR T108113 OR AT155733) (BLEED PUMP)

1шт.

9

H21259

MAT

(K) (OPERATOR DECK)

14шт.

10

4249682

LABEL

(SUB FOR T121821) (BRAKE AIR PRESSURE)

1шт.

11

T146668

SAFETY SIGN

(SUB FOR T107627) (WARNING)

1шт.

12

T138802

SAFETY SIGN

(SUB FOR T115279) (CAUTION - 9 POINTS)

1шт.

13

LABEL

(SUB FOR T121719) (LIFT CHART) ( 2028440 NLA)

1шт.

14

T114427

LABEL

(HEATER DAMPER DOOR)

1шт.

15

4249683

LABEL

(SUB FOR T124339) (INFORMATION)

1шт.

16

T107623

LABEL

(ENGINE START AND STOP)

1шт.

17

T146667

SAFETY SIGN

(SUB FOR T114392) (DANGER - ELECTROCUTION)

1шт.

18

T146664

SAFETY SIGN

(SUB FOR TH111901) (WINDOW LOCK)

1шт.

19

4248275

LABEL

(SUB FOR T121842) (STABILIZER - RIGHT)

1шт.

20

4248266

LABEL

(SUB FOR T121844) (BLADE LEVER)

1шт.

21

4248268

LABEL

(SUB FOR T121847) (STABILIZER SWITCH SELECTION)

1шт.

22

4248269

LABEL

(SUB FOR T121848) (BLADE SWITCH SELECTION)

1шт.

23

4248277

LABEL

(SUB FOR T121843) (STABILIZER - LEFT)

1шт.

24

4249685

LABEL

(SUB FOR T124362) (TRAVEL MODE AND WIPER SWITCH)

1шт.

25

1014135

LABEL

(K) (SUB FOR T121708) (PERIODIC MAINTENANCE CHART)

1шт.

26

4243146

LABEL

(SUB FOR T124481) (REFLECTOR)

2шт.

27

2025748

LABEL

(SUB FOR AT115040) (VANDAL COVERS) (SEE SEPARATE PAGE)

1шт.

28

4149203

LABEL

(SUB FOR TH101569) (CONTROL LEVER LOCK)

1шт.

29

4249684

LABEL

(SUB FOR T124357) (AUTO IDLE)

1шт.

30

4234985

LABEL

(SUB FOR T124482) (PILOT LOCK)

1шт.

31

T108168

LABEL

(MODE SWITCH)

1шт.

32

4211092

LABEL

(SUB FOR TH110230) (CHECK - BUZZER)

1шт.

33

4147525

LABEL

(SUB FOR TH100597) (SWING LOCK)

1шт.

34

4248267

LABEL

(SUB FOR T121877) (STEERING MODE)

1шт.

35

4248270

LABEL

(SUB FOR T121878) (SAE DIGGING PATTERN - RIGHT)

1шт.

36

4248278

LABEL

(SUB FOR T121840) (SWITCH SELECTION)

1шт.

37

4248273

LABEL

(SUB FOR T121846) (UNLOCKED AXLE)

1шт.

38

4218825

LABEL

(SUB FOR T124484) (F-N-R)

1шт.

39

4210026

LABEL

(SUB FOR T120640) (IGNITION)

1шт.

40

4172040

LABEL

(SUB FOR T114454) (THROTTLE)

1шт.

41

4146722

LABEL

(SUB FOR TH100596) (THROTTLE)

1шт.

42

4172384

LABEL

(SUB FOR TH104058) (H-L SWITCH)

1шт.

43

4250656

LABEL

(SUB FOR T121849) (BRAKE)

1шт.

44

4248272

LABEL

(SUB FOR T121845) (LOCKED AXLE)

1шт.

45

4210040

LABEL

(SUB FOR T114455) (STARTING AID)

1шт.

46

4248271

LABEL

(SUB FOR T121879) (SAE DIGGING PATTERN - LEFT)

1шт.

47

4210039

LABEL

(SUB FOR TH111033) (ENGINE STOP)

1шт.

48

T147009

LABEL

(K) (SUB FOR T108183) (RESERVOIR COVER)

1шт.

49

T146671

SAFETY SIGN

(K) (SUB FOR T114488) (RADIATOR CAP)

1шт.

51

T121880

LABEL

(RIGHT CONTROL)

1шт.

52

T121881

LABEL

(LEFT CONTROL)

1шт.

53

AT131150

LABEL

(WARNING - REDUCED LIFT CAPACITIES)

1шт.

54

T145893

SAFETY SIGN

(SUB FOR T114398) (STAY CLEAR)

2шт.
