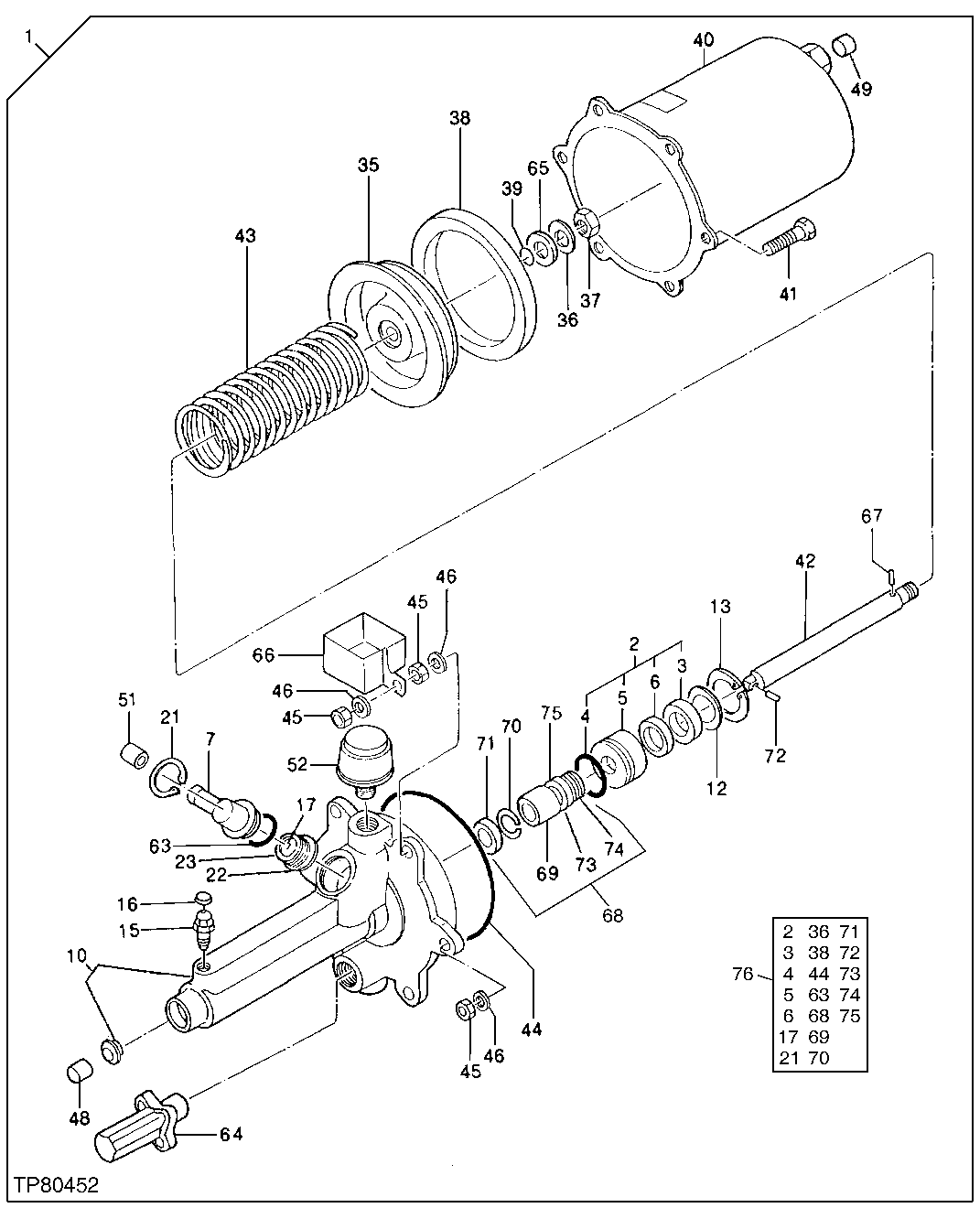

Запчасти John Deere 95D 12 - BRAKE BOOSTER 1060 - SERVICE BRAKES 10

1

4180463

CYLINDER

(SUB FOR TH104340) (SUB FOR TH104339)

1шт.

2

0267701

RETAINER

(SUB FOR TH105425)

1шт.

3

SEAL

(SUB TH105425)

1шт.

4

O-RING

(SUB TH105425)

1шт.

5

RETAINER

(SUB TH105425)

1шт.

6

SEAL

(SUB TH105425)

1шт.

7

0288917

FITTING

(SUB FOR TH105458)

1шт.

10

HOUSING

( TH105426 NO LONGER AVAILABLE)

1шт.

12

0267703

WASHER

22 X 38 X 1 MM (0.866" X 1.496" X 0.039") (SUB FOR TH105427)

1шт.

13

40M7093

SNAP RING

(SUB FOR TH105428)

1шт.

15

0267704

FITTING PLUG

(SUB FOR TH105429)

1шт.

16

0267705

CAP

(SUB FOR TH105430)

1шт.

17

0267706

FLOW CONTROL HYD. VALVE

(SUB FOR TH105431)

1шт.

21

40M7085

SNAP RING

1шт.

22

0267708

RETAINER

(SUB FOR TH105433)

1шт.

23

SPRING

(SUB FOR TH105434) ( 0267709 NLA)

1шт.

35

0288906

PISTON

(SUB FOR TH105442)

1шт.

36

0267718

WASHER

12.200 X 25 X 0.900 MM (0.480" X 0.984" X 0.035") (SUB FOR TH105443)

1шт.

37

14M7537

NUT

M12, (SUB FOR TH105444 OR 0267719)

1шт.

38

0288907

SEAL

(SUB FOR TH105445)

1шт.

39

0267721

O-RING

11 X 1.900 MM (0.433" X 0.075") (SUB FOR TH105446)

1шт.

40

BARREL

( TH105447 NO LONGER AVAILABLE)

1шт.

41

19M8008

CAP SCREW

M8 X 35

6шт.

42

0288910

ROD

(SUB FOR TH105449)

1шт.

43

0288911

SPRING

(SUB FOR TH105450)

1шт.

44

0288912

O-RING

102 X 3 MM (4.016" X 0.118") (SUB FOR TH105451)

1шт.

45

14M7273

NUT

M8

7шт.

46

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

7шт.

48

PLUG

( TH105455 NO LONGER AVAILABLE)

1шт.

49

FITTING PLUG

( TH104875 NO LONGER AVAILABLE)

1шт.

51

CAP

( TH105456 NO LONGER AVAILABLE) (INDEX RH OR LH AS REQUIRED)

1шт.

52

0267736

COVER

(SUB FOR TH105457)

1шт.

63

0267738

O-RING

19.800 X 2.400 MM (0.780" X 0.094") (SUB FOR TH105459)

1шт.

64

0288918

RETAINER

(SUB FOR TH105460)

1шт.

65

24M7043

WASHER

12 X 25 X 3 MM, (SUB FOR TH105461 OR 0267746)

1шт.

66

0288919

BRACKET

(SUB FOR TH105462)

1шт.

67

0267748

PIN

(SUB FOR TH105463)

1шт.

68

PISTON

( TH111037 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS FOR SERVICE)

1шт.

69

0288902

PISTON

(SUB FOR TH105435)

1шт.

70

0288905

BACK-UP RING

(SUB FOR TH105441)

1шт.

71

0288904

SEAL

(SUB FOR TH105439)

1шт.

72

0267729

PIN

(SUB FOR TH105454)

1шт.

73

0288903

SEAL

(SUB FOR TH105437)

1шт.

74

0267711

SPRING

(SUB FOR TH105436)

1шт.

0267715

SPRING

(SUB FOR TH105440)

1шт.

75

0267713

SNAP RING

(SUB FOR TH105438)

1шт.

76

4185291

KIT

(SUB FOR TH111038)

1шт.
