Запчасти John Deere 95D 12 - STEERING CYLINDER 960 - STEERING SYSTEM 9

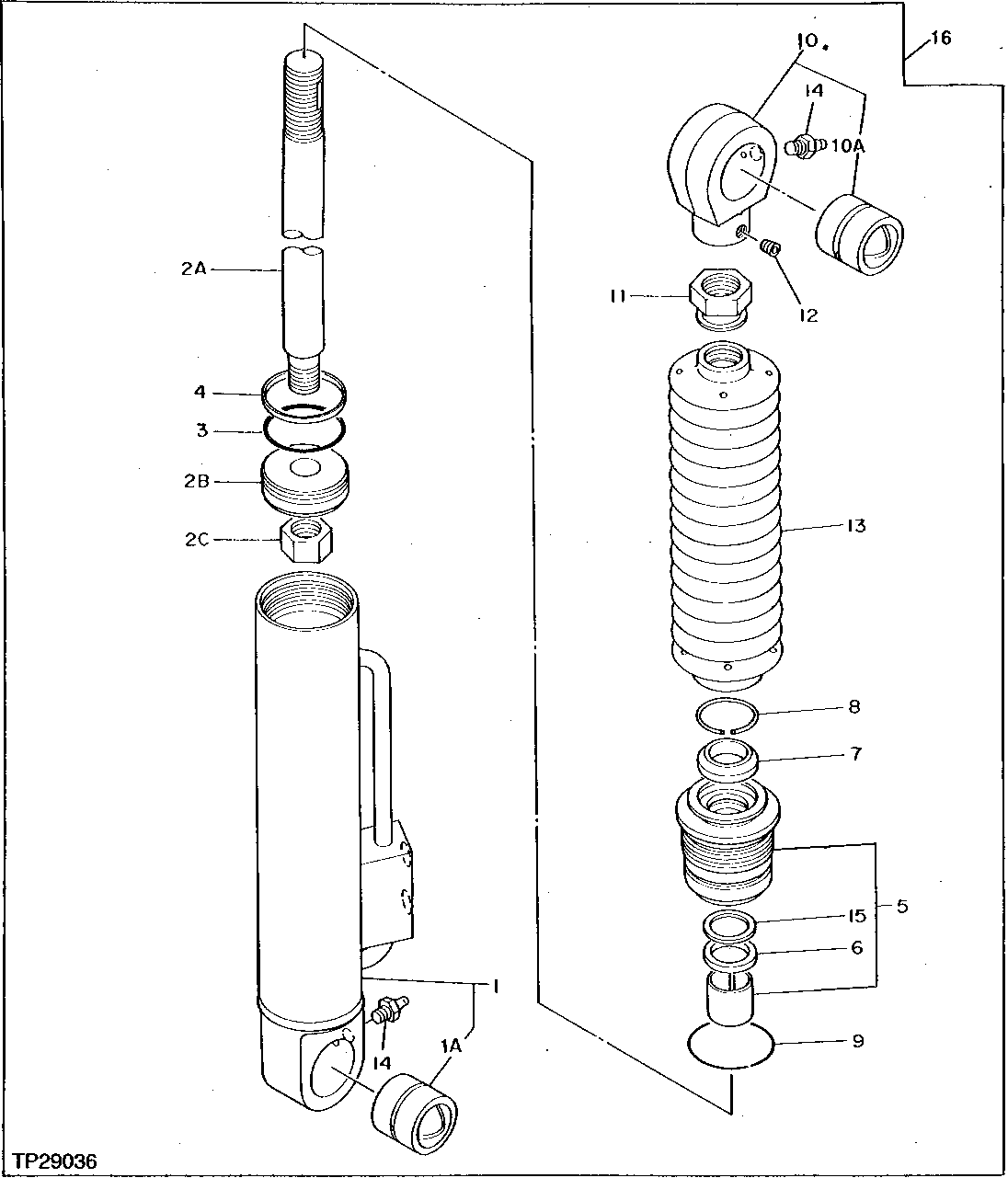

Схема запчастей John Deere 95D - 12 - STEERING CYLINDER 960 - STEERING SYSTEM 9

Артикул

Название

Примечание

Количество

1

0326301

HYDRAULIC CYLINDER

(SUB FOR AT133719)

1шт.

1A

0267202

BUSHING

(SUB FOR TH104967)

1шт.

2A

0326302

PISTON

(SUB FOR AT133720)

1шт.

2B

0326303

NUT

(SUB FOR AT133721)

1шт.

2C

14M7447

NUT

M18

1шт.

3

T110433

O-RING

(K) (SUB FOR AT134295)

1шт.

4

SEAL

(K) (SUB AT134078)

1шт.

5

0326305

GUIDE

(SUB FOR AT133723)

1шт.

6

AT264366

SEAL

(K) (SUB FOR TH104975, 0154412)

1шт.

7

AT264367

SEAL

(K) (SUB FOR TH104976, 0267209)

1шт.

8

0267210

SNAP RING

(SUB FOR TH104977)

1шт.

9

CH11436

O-RING

(K)

1шт.

10

0326306

END

(SUB FOR AT127297)

1шт.

10A

0267202

BUSHING

(SUB FOR TH104967)

1шт.

11

0326307

NUT

(SUB FOR AT133724)

1шт.

12

22M7080

SET SCREW

M8 X 8, (SUB FOR AT127298)

1шт.

13

0326310

BOOT

(SUB FOR AT130863)

1шт.

14

TH100074

LUBRICATION FITTING

2шт.

15

BACK-UP RING

(K) (SUB AT134078)

1шт.

16

4196020

CYLINDER

(SUB FOR AT126305)

1шт.

Выбрано товаров: 20
