Запчасти John Deere 95D 10 - STEERING FLOW CONTROL AND RELIEF VALVE 960 - STEERING SYSTEM 9

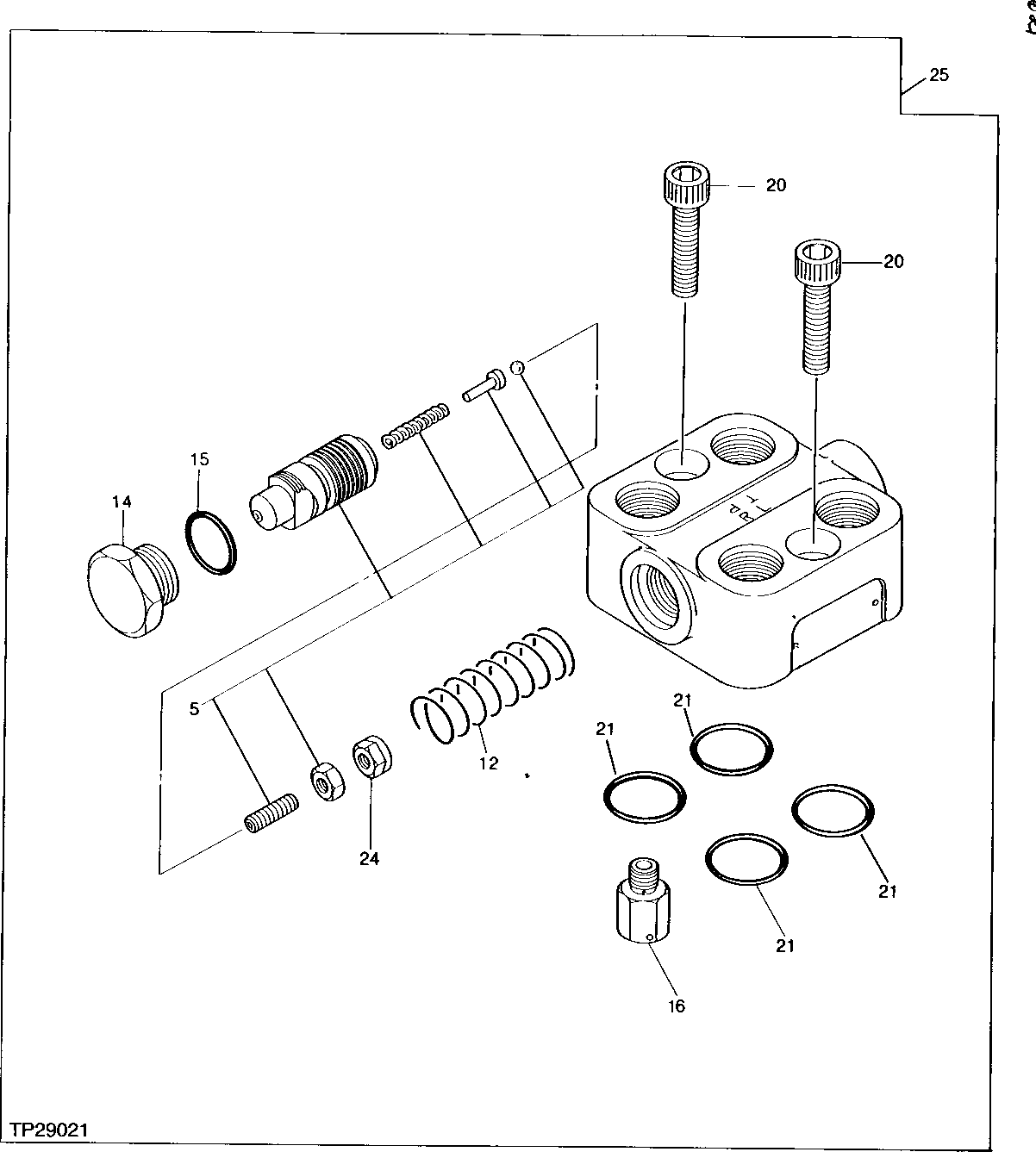

Схема запчастей John Deere 95D - 10 - STEERING FLOW CONTROL AND RELIEF VALVE 960 - STEERING SYSTEM 9

Артикул

Название

Примечание

Количество

5

RELIEF VALVE

( AT127477 NO LONGER AVAILABLE)

1шт.

12

0364703

SPRING

(SUB FOR AT127478)

1шт.

14

0364705

FITTING PLUG

(SUB FOR AT127480)

1шт.

15

4506418

O-RING

(SUB FOR AT127481) (SUB FOR U46489)

1шт.

16

0364707

CHECK VALVE

(SUB FOR AT127482)

1шт.

20

0364708

BOLT

(SUB FOR AT127483)

2шт.

21

4S00734

O-RING

(SUB FOR TH103574 OR AT264354, 0976602)

4шт.

24

0364709

FILTER

(SUB FOR AT127484)

1шт.

25

4231770

RELIEF VALVE

(SUB FOR AT126806)

1шт.

Выбрано товаров: 9
