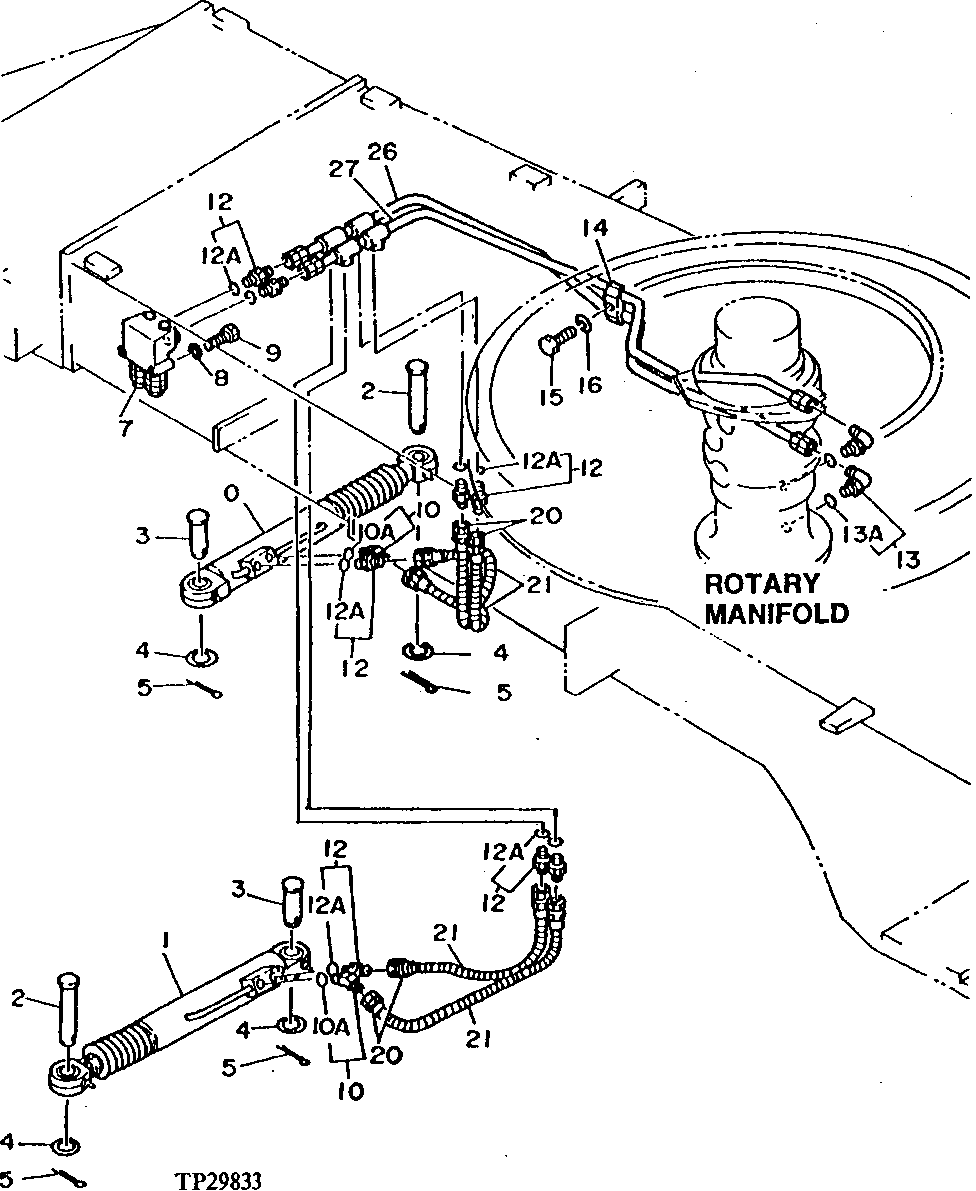

Запчасти John Deere 95D 6 - STEERING HYDRAULIC CYLINDERS, HOSES AND LINES 960 - STEERING SYSTEM 9

0

4196020

CYLINDER

(SUB FOR AT126305)

1шт.

1

4196019

CYLINDER

(SUB FOR AT126304)

1шт.

2

4180012

PIN FASTENER

(SUB FOR AT126255)

2шт.

3

4180011

PIN FASTENER

(SUB FOR AT126254)

2шт.

4

24M7202

WASHER

31 X 56 X 4 MM

4шт.

5

11M7073

COTTER PIN

8 X 63 MM

4шт.

7

4207573

PRESSURE RELIEF VALVE

(SUB FOR AT126387)

1шт.

8

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

9

19M7184

CAP SCREW

M8 X 55

2шт.

10

4190244

ELBOW FITTING

(SUB FOR TH106152)

2шт.

10A

CH11570

O-RING

1шт.

12

4200466

ADAPTER FITTING

(SUB FOR TH108320)

8шт.

12A

CH11570

O-RING

1шт.

13

4200471

ELBOW FITTING

(SUB FOR TH108399)

2шт.

13A

4506418

O-RING

(SUB FOR U46489)

1шт.

14

4189858

CLAMP

(SUB FOR TH108333)

1шт.

15

19M7496

CAP SCREW

M12 X 45, (SUB FOR AT122612)

1шт.

16

12H301

LOCK WASHER

1/2"

1шт.

20

AT37543

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126386)

4шт.

21

E90991

HOSE GUARD

(SUB FOR TH104323, TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

4шт.

26

8037205

OIL LINE

(SUB FOR AT127011)

1шт.

27

8037204

OIL LINE

(SUB FOR AT127010)

1шт.
