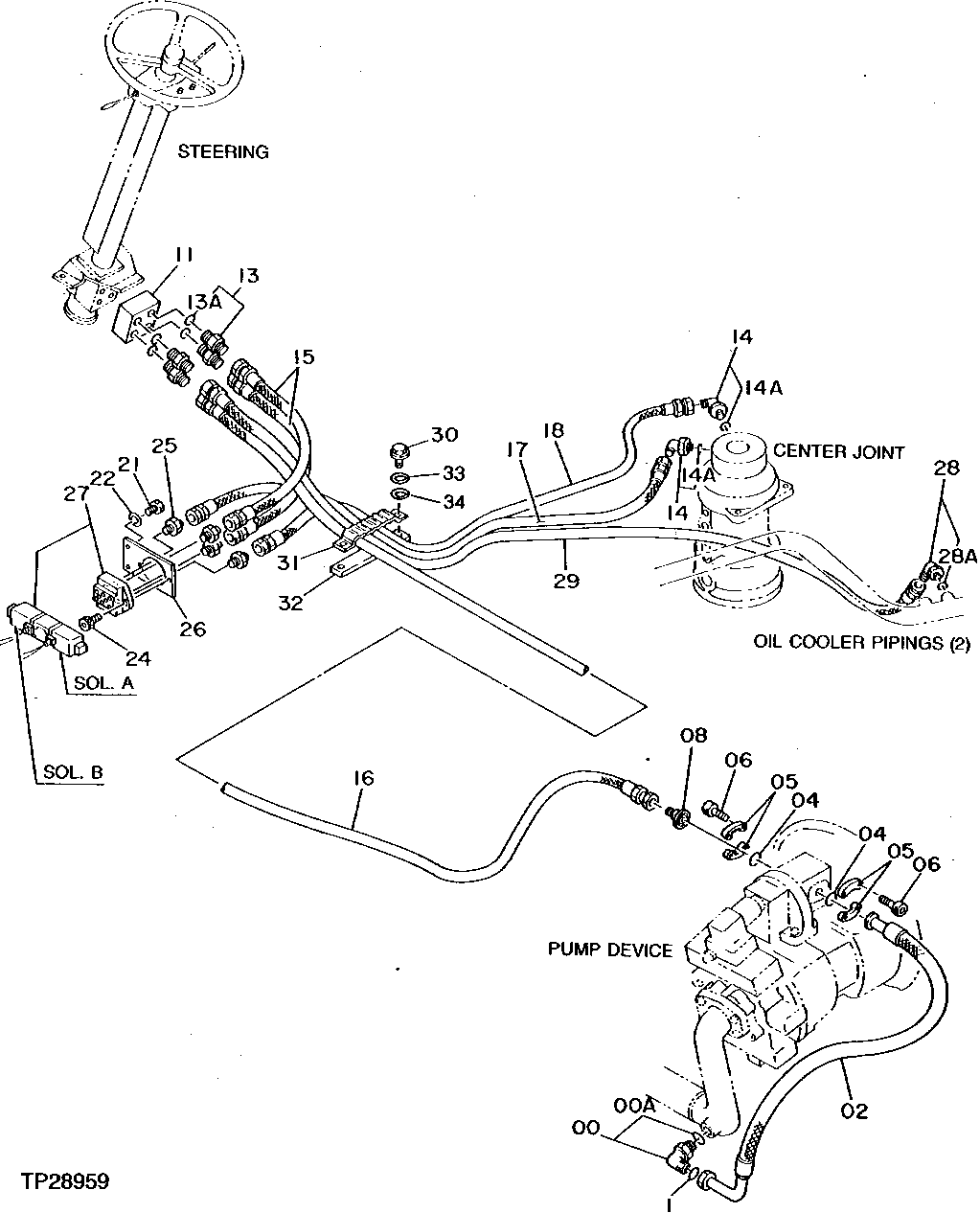

Запчасти John Deere 95D 4 - STEERING HYDRAULIC VALVES, HOSES AND LINES 960 - STEERING SYSTEM 9

0

4157562

ELBOW FITTING

(SUB FOR TH109540)

1шт.

0A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

1

T77858

O-RING

(SUB FOR TH108349)

1шт.

2

AT134132

HYDRAULIC HOSE - FABRICATE

3/4" X 1 000 MM (39-1/4") X 1-3/16"

1шт.

4

T59014

O-RING

2шт.

5

R29424

FLANGE FITTING

(SUB FOR TH108300)

4шт.

6

19M8337

SCREW

M10 X 30

8шт.

8

4240168

ADAPTER FITTING

(SUB FOR AT126856)

1шт.

11

4231770

RELIEF VALVE

(SUB FOR AT126806)

1шт.

13

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

13A

CH11570

O-RING

1шт.

14

4200471

ELBOW FITTING

(SUB FOR TH108399)

2шт.

14A

4506418

O-RING

(SUB FOR U46489)

1шт.

15

AT37543

HYDRAULIC HOSE - FABRICATE

9/16" X 483 MM (19") X 9/16", (SUB FOR AT126866)

2шт.

16

AT127726

HYDRAULIC HOSE - FABRICATE

9/16" X 3 000 MM (118") X 9/16", (SUB FOR AT126867)

1шт.

17

AT48422

HYDRAULIC HOSE - FABRICATE

9/16" X 1 422 MM (56") X 9/16", (SUB FOR AT126390)

1шт.

18

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR AT126389)

1шт.

21

19M7938

CAP SCREW

M10 X 20

2шт.

22

12M7066

LOCK WASHER

10 MM

2шт.

24

19M8553

SCREW

M6 X 16

2шт.

25

T115957

ADAPTER FITTING

(SUB FOR AT126654 OR TH101034)

4шт.

26

4243066

BRACKET

(SUB FOR AT134130)

1шт.

27

4350151

SOLENOID VALVE

(SUB FOR AT126875 OR AT130806) (ALSO ORDER AT130947) (STEERING SOLENOID VALVE)

1шт.

4350151

SOLENOID VALVE

(SUB FOR AT176671) (REPLACEMENT STEERING SOLENOID VALVE)

1шт.

28

4190244

ELBOW FITTING

(SUB FOR TH106152)

1шт.

28A

CH11570

O-RING

1шт.

29

AT130683

HYDRAULIC HOSE - FABRICATE

9/16" X 2 350 MM (92-1/2") X 9/16", (SUB FOR AT134125)

1шт.

30

19M7550

CAP SCREW

M10 X 35

2шт.

31

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

32

9727637

PLATE

(SUB FOR TH108457)

1шт.

33

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

34

12M7066

LOCK WASHER

10 MM

2шт.
