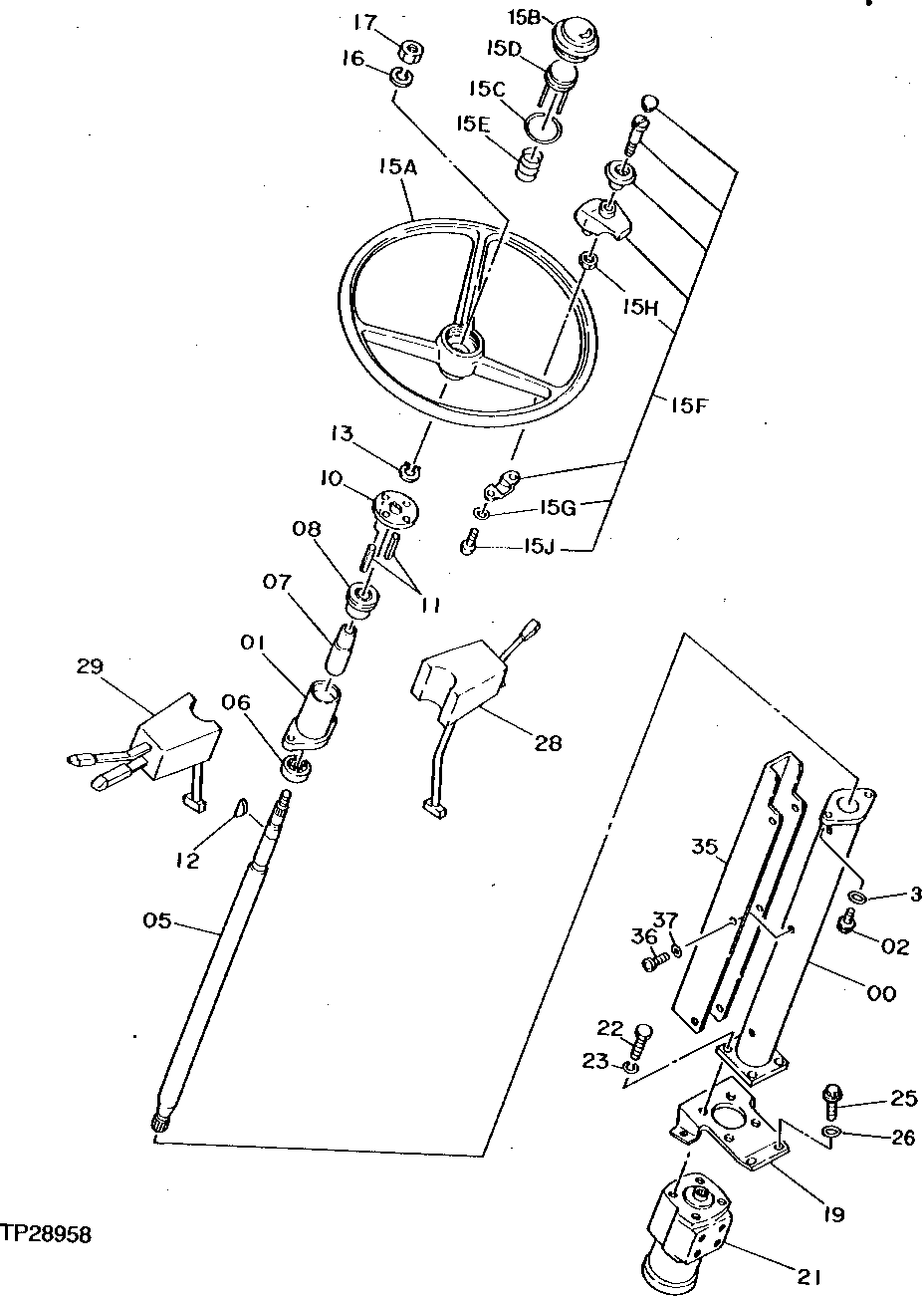

Запчасти John Deere 95D 2 - STEERING COLUMN 960 - STEERING SYSTEM 9

0

7013132

STEERING COLUMN

(SUB FOR TH103909)

1шт.

1

8027180

STEERING COLUMN

(SUB FOR TH103910)

1шт.

2

19M7662

CAP SCREW

M10 X 30

2шт.

3

12M7066

LOCK WASHER

10 MM

2шт.

5

3027142

SHAFT

(SUB FOR TH103911)

1шт.

6

JD30049

BALL BEARING

(SUB FOR TH103912)

1шт.

7

4148007

SPACER

(SUB FOR TH103913)

1шт.

8

4098806

BUSHING

(SUB FOR TH103914)

1шт.

10

3027143

RETAINER

(SUB FOR TH103915)

1шт.

11

34M7144

SPRING PIN

4 X 28 MM, (SUB FOR TH103916)

2шт.

12

94-2501

SHAFT KEY

(SUB FOR TH102579)

1шт.

13

40M7080

SNAP RING

1шт.

15A

4374065

STEERING WHEEL

(SUB FOR TH103919, 4107339) (ALSO ORDER 4613978

1шт.

15B

4374066

PUSH BUTTON

(SUB FOR TH103920, 4107340)

1шт.

15C

4107342

RETAINER

(SUB FOR TH103921, 4107341)

1шт.

15D

4374068

LOCK

(SUB FOR TH103922, 4107342)

1шт.

15E

4374069

SPRING

(SUB FOR TH103923, 4107343)

1шт.

15F

4374070

GRIP

(SUB FOR TH103924, 4107344)

1шт.

15G

12M7006

LOCK WASHER

6 MM

2шт.

15H

14M7274

NUT

M10

1шт.

15J

21M7277

SCREW

M6 X 25

2шт.

16

12H301

LOCK WASHER

1/2"

1шт.

17

14M7275

NUT

M12

1шт.

18

4613978

RETAINER

(NOT ILLUSTRATED)

1шт.

19

8040577

BRACKET

(SUB FOR AT127074)

1шт.

21

4149140

VALVE

(SUB FOR TH103932)

1шт.

22

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

23

12H304

LOCK WASHER

3/8"

4шт.

25

19M7402

CAP SCREW

M10 X 25

4шт.

26

12M7066

LOCK WASHER

10 MM

4шт.

28

4149143

SWITCH

(SUB FOR TH103933) (TURN SIGNAL, HI-LO BEAM, HEAD LIGHTS)

1шт.

29

4201528

SWITCH

(SUB FOR AT126342) (PROPEL MODE (TOP), WIPER-WASHER)

1шт.

35

3031908

COVER

(SUB FOR TH103943)

1шт.

36

21M7288

SCREW

M6 X 10

6шт.

37

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.
