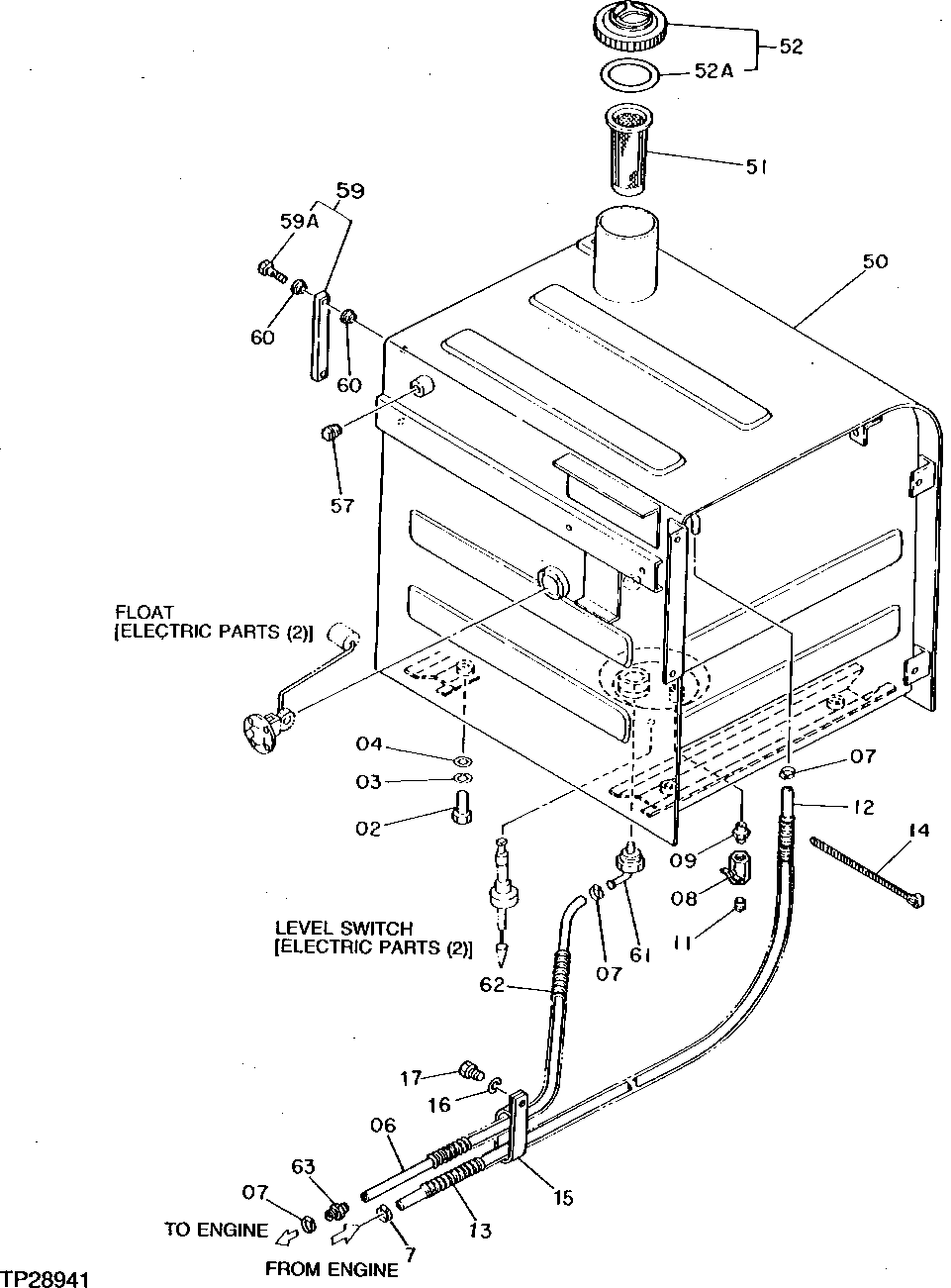

Запчасти John Deere 95D 2 - FUEL TANK 560 - ENGINE AUXILIARY 5

2

19M7488

CAP SCREW

M16 X 40

4шт.

3

12H294

LOCK WASHER

5/8"

4шт.

4

4114405

WASHER

(SUB FOR TH101105)

4шт.

6

M87571

HOSE

(SUB FOR AT126812)

1шт.

7

TY22464

CLAMP

(SUB FOR AT145649) (SUB FOR AR21836)

4шт.

8

4374265

DRAIN VALVE

(SUB FOR TH111035) (SUB FOR AT177419)

1шт.

9

T116057

FITTING

(SUB FOR TH101997)

1шт.

11

M800462

PLUG

(SUB FOR TH101049)

1шт.

12

M87571

HOSE

(SUB FOR AT126813)

1шт.

13

T83427

CONDUIT

1шт.

14

H77698

TIE BAND

2шт.

15

T32854

CLAMP

1шт.

16

12M7066

LOCK WASHER

10 MM

1шт.

17

19M8324

CAP SCREW

M10 X 16

1шт.

50

6007799

FUEL TANK

(SUB FOR TH108248)

1шт.

51

4121496

FUEL FILTER

(SUB FOR TH100509)

1шт.

52

AT321249

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (KEY LOCKABLE) (ORDER KEY SEPARATELY)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

AT323462

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (CAN BE LOCKED WITH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

52A

4168820

PACKING

(SUB FOR TH103384) (USE WITH TH108249 FUEL CAP)

1шт.

57

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

59

8033923

LEVEL GAUGE

(SUB FOR TH108250)

1шт.

59A

4100967

BOLT

(SUB FOR TH101894)

2шт.

60

449558

WASHER

(SUB FOR TH100675)

4шт.

61

9726772

FITTING

(SUB FOR TH108251)

1шт.

62

HOSE

( TH111405 OR AT132010 NO LONGER AVAILABLE) (CUT TO LENGTH FROM T83427 BULK MATERIAL)

1шт.

63

R67293

FITTING

(SUB FOR TH100897)

1шт.
