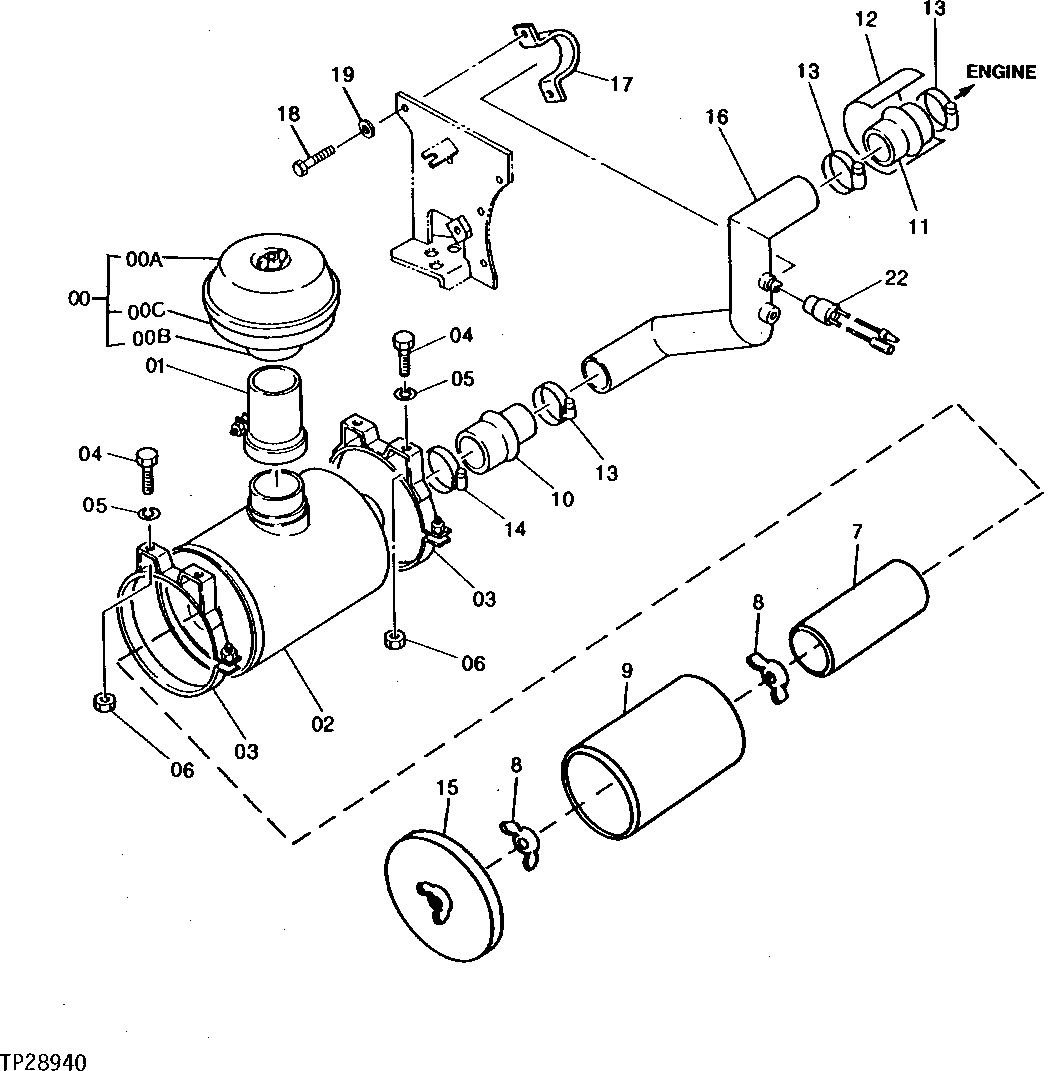

Запчасти John Deere 95D 2 - AIR INTAKE SYSTEM 520 - ENGINE AUXILIARY 5

0

AT27822

PRECLEANER

1шт.

0A

AR1729R

COVER

1шт.

0B

BASE

( AH61828 - USE IF AVAILABLE)

1шт.

0C

R28795

DUST BOWL

1шт.

1

AH81443

AIR INTAKE STACK

1шт.

2

BASE

( 4158654 NLA) (SUB FOR TH100917)

1шт.

3

AR35435

CLAMP

2шт.

4

19M7938

CAP SCREW

M10 X 20

4шт.

5

12M7066

LOCK WASHER

10 MM

4шт.

6

14M7274

NUT

M10

4шт.

7

AT31227

FILTER ELEMENT

SECONDARY

1шт.

8

AH20849

WING NUT

2шт.

9

AT39124

FILTER ELEMENT

PRIMARY

1шт.

10

4155756

SUCTION HOSE

(SUB FOR TH100926)

1шт.

11

TY25155

HOSE

(SUB FOR TH100927 AND 4014035) (CUT TO LENGTH)

1шт.

12

4162337

INSULATOR

(SUB FOR TH101607)

1шт.

13

AT37476

HOSE CLAMP

3шт.

14

AT37477

HOSE CLAMP

1шт.

15

AT71475

COVER

1шт.

16

8043449

LINE

(SUB FOR AT127104)

1шт.

17

4245702

CLAMP

(SUB FOR AT127747)

1шт.

18

19M7938

CAP SCREW

M10 X 20

2шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

22

4224238

INDICATOR

(SUB FOR TH108915) (SUB FOR AT131922)

1шт.
