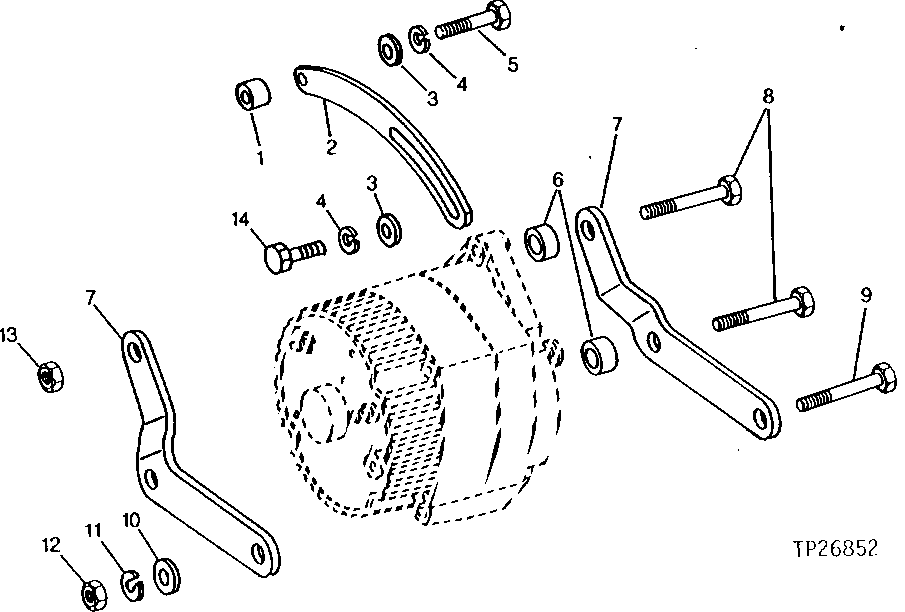

Запчасти John Deere 95D 1 - ALTERNATOR MOUNTING BRACKETS 423 - ENGINE 4

1

28H1518

WASHER

0.493" X 0.675" X 5/16", PIPE

1шт.

2

R108404

STRAP

(SUB FOR T20204 AND R107734)

1шт.

R108404

STRAP

1шт.

3

24H1621

WASHER

11/32" X 1" X 0.220"

2шт.

4

12H304

LOCK WASHER

3/8"

2шт.

5

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

6

28H862

SPACER

PIPE

2шт.

7

R57260

BRACKET

2шт.

8

19H2458

CAP SCREW

3/8" X 3"

2шт.

24H1304

WASHER

13/32" X 23/32" X 0.120", (NOT ILLUSTRATED)

2шт.

9

19M8197

CAP SCREW

M10 X 85

1шт.

10

24H1822

WASHER

11/32" X 7/8" X 1/16"

1шт.

11

12M7066

LOCK WASHER

10 MM

1шт.

12

14M7274

NUT

M10

1шт.

13

14H812

NUT

3/8"

2шт.

14

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

1шт.
