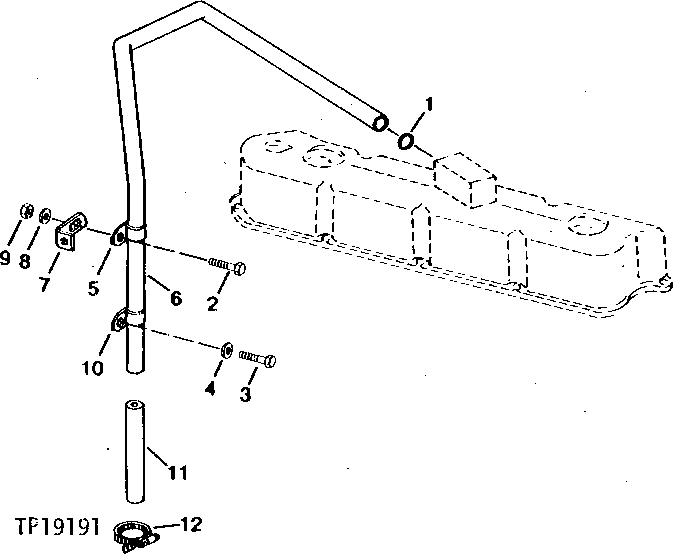

Запчасти John Deere 95D 2 - ENGINE VENTILATOR TUBE 408 - ENGINE 4

1

R56463

O-RING

1шт.

2

19H2284

CAP SCREW

3/8" X 7/8"

1шт.

12H304

LOCK WASHER

3/8"

1шт.

3

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

4

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

5

R40791

CLAMP

2шт.

6

R109441

SPRING

(SUB FOR R59047)

1шт.

7

R73975

BRACKET

1шт.

8

24H1685

WASHER

11/32" X 47/64" X 0.083"

1шт.

9

14H812

NUT

3/8"

1шт.

10

T24432

CLAMP

1шт.

11

R88910

HOSE

DO NOT REPLACE

NAшт.

12

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650) DO NOT REPLACE

NAшт.
