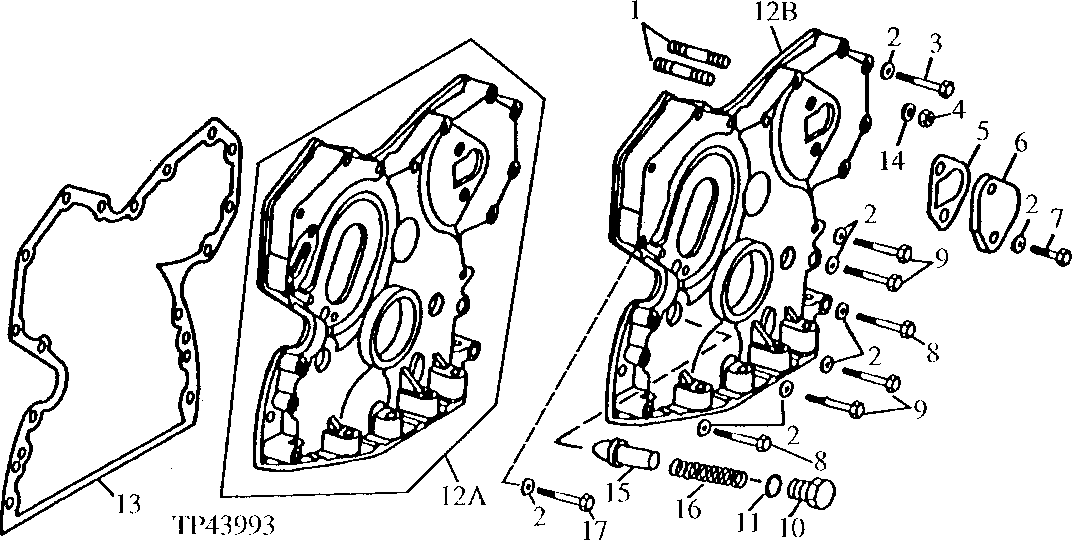

Запчасти John Deere 95D 4 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR T33279)

2шт.

2

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

3

19H3385

CAP SCREW

1/2" X 1-1/8"

5шт.

4

N10215

LOCK NUT

3/8", (SUB FOR 14H812, THIS APPLICATION)

2шт.

5

R125066

GASKET

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

R124277

CAP SCREW

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3733

SCREW

3/8" X 2-1/2"

2шт.

9

19H3408

SCREW

3/8" X 1-3/4"

5шт.

10

T27657

FITTING PLUG

1шт.

11

A4827R

WASHER

25.400 X 31.700 X 1.500 MM (1" X 1.248" X 0.059")

1шт.

12A

RE39252

COVER

(SUB FOR RE27895)

1шт.

12B

RE56443

COVER

1шт.

13

R126513

GASKET

(SUB FOR R97454, T20155, R119269 OR R121314)

1шт.

14

12H304

LOCK WASHER

3/8"

ARшт.

15

R83169

VALVE

1шт.

16

T27658

SPRING

1шт.

17

19H1819

CAP SCREW

3/8" X 2-1/8"

1шт.
