Запчасти John Deere 95D 4 - UNDERSIZE CRANKSHAFT AND BEARING KIT 401 - ENGINE 4

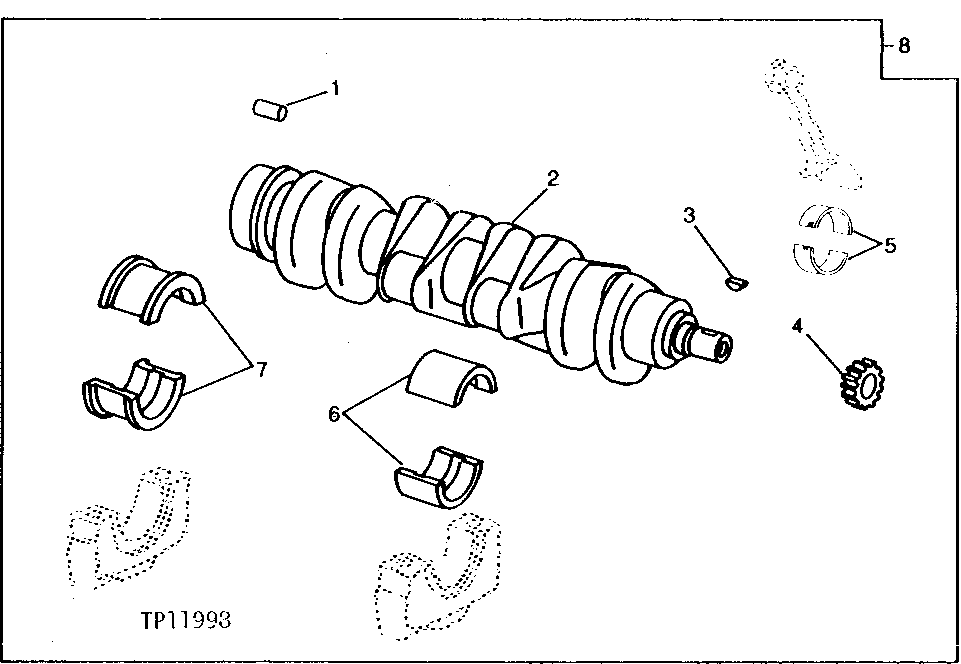

Схема запчастей John Deere 95D - 4 - UNDERSIZE CRANKSHAFT AND BEARING KIT 401 - ENGINE 4

Артикул

Название

Примечание

Количество

1

R48685

DOWEL PIN

1шт.

2

CRANKSHAFT

0.25 MM (.010") UNDERSIZE, (MARKED R54501) (SUB DD13895)

1шт.

3

26H72

SHAFT KEY

1/8" X 5/8"

1шт.

4

T20094

HELICAL GEAR

(24 TEETH)

1шт.

5

AR76129

BEARING

0.25 MM (.010") UNDERSIZE (SET OF (2) R62073) (CONNECTING ROD)

4шт.

6

RE27353

BEARING KIT

(SUB FOR AT21110) 0.25 MM (.010") UNDERSIZE (SET OF (2) T23554)

4шт.

7

AR81788

BEARING

0.25 MM (.010") UNDERSIZE (SET OF (2) R64848)

1шт.

8

DD13895

KIT

1шт.

Выбрано товаров: 8
